Power Distribution Schematics

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

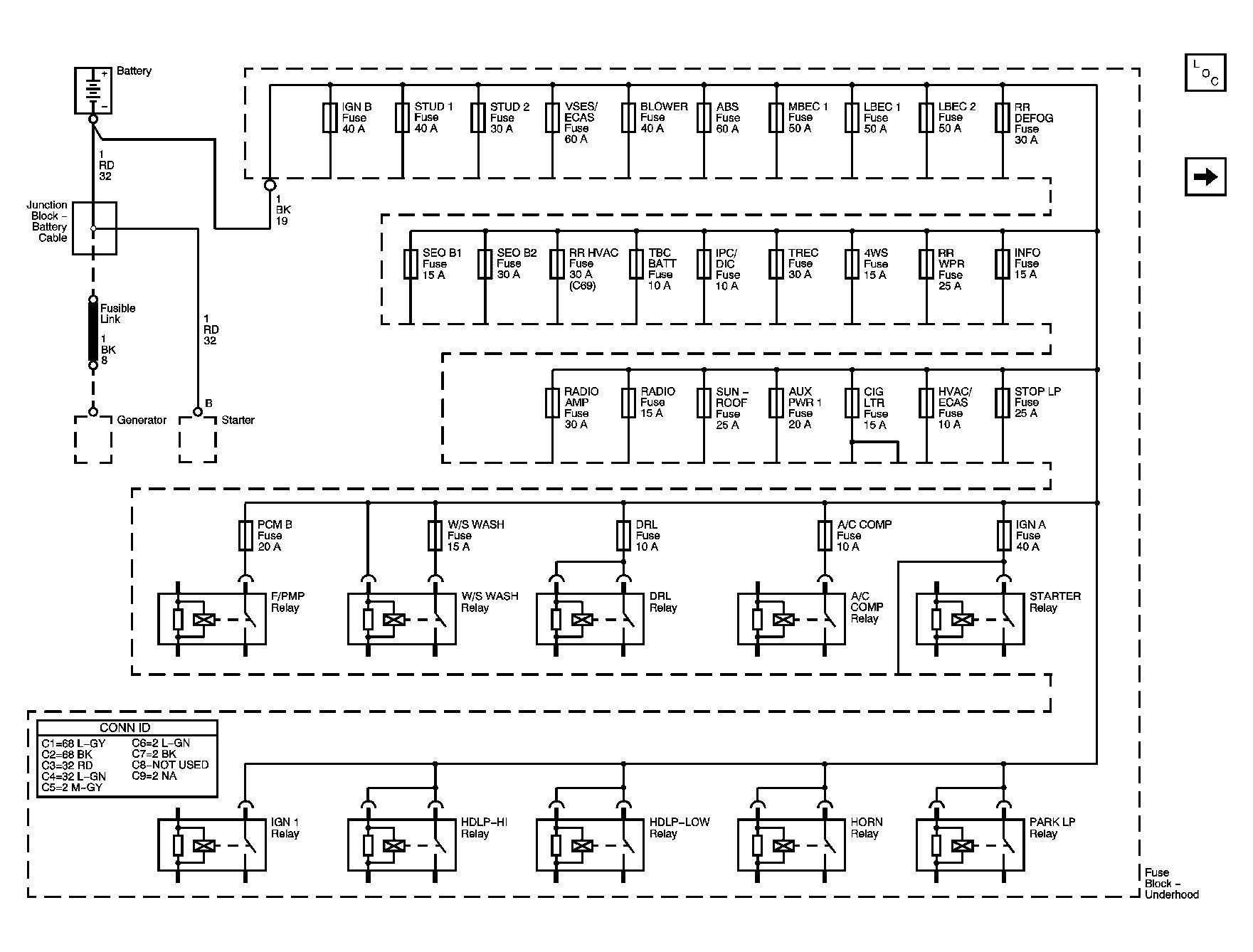

Fig 1: B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: ACCY/RUN/START, RUN, and START Bus Bars, and CRANK Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

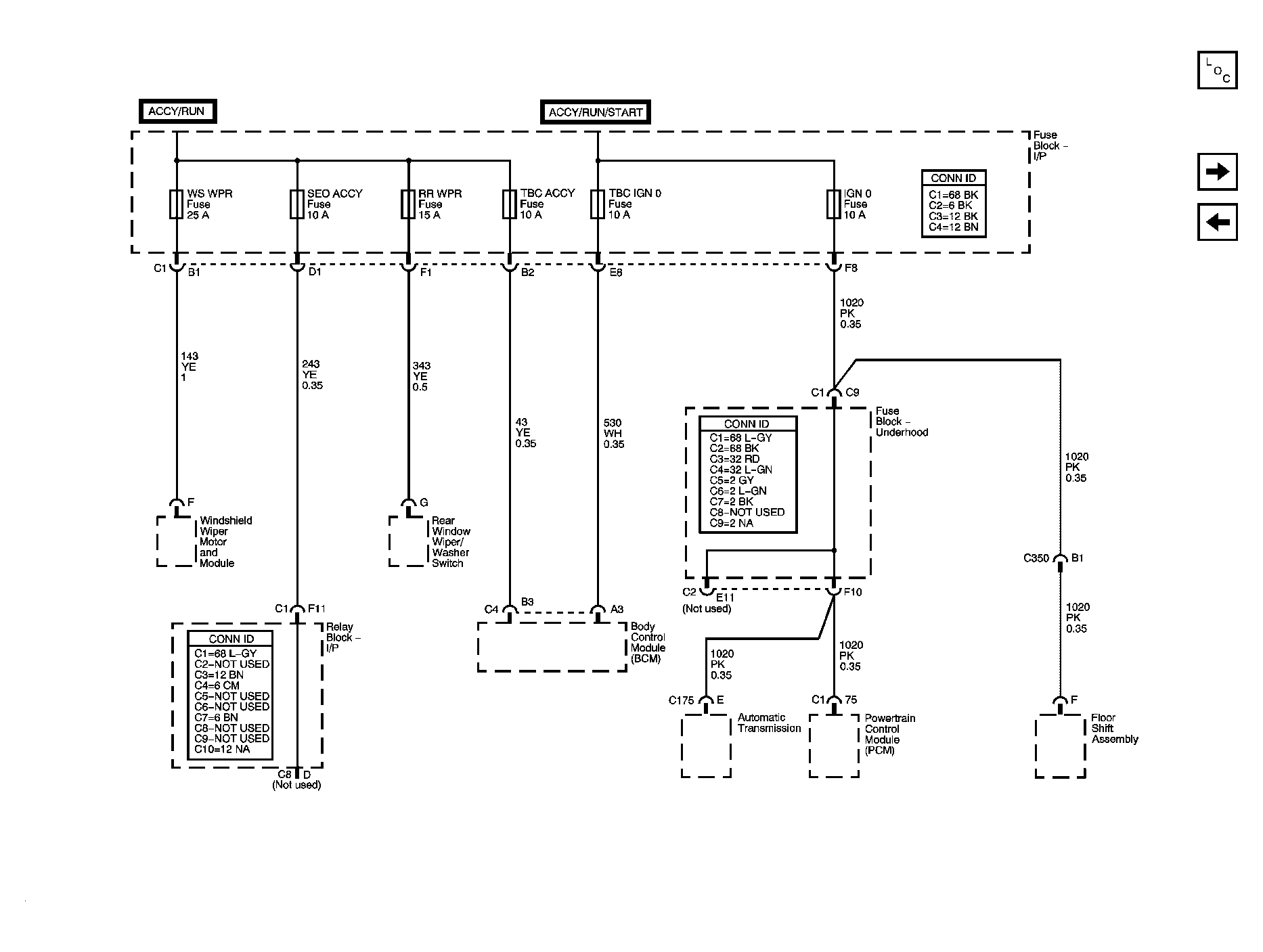

Fig 3: ACCY/RUN and RUN/START Bus Bars Schematic

Courtesy of GENERAL MOTORS CORP.

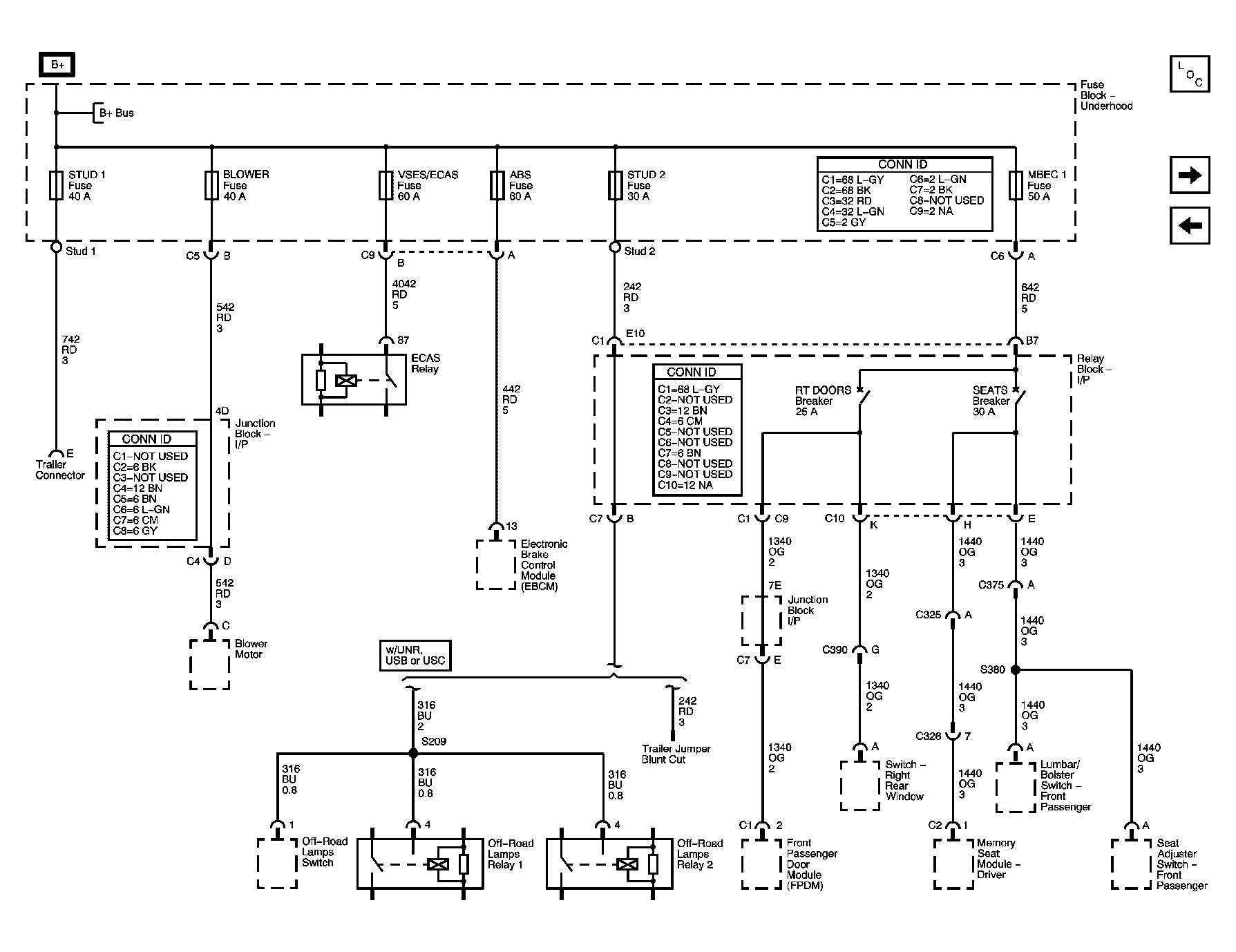

Fig 4: STUD 1, STUD 2, VSES/ECAS, BLOWER, ABS, and MBEC 1 Fuses, RT DOORS and SEATS Circuit Breakers Schematic

Courtesy of GENERAL MOTORS CORP.

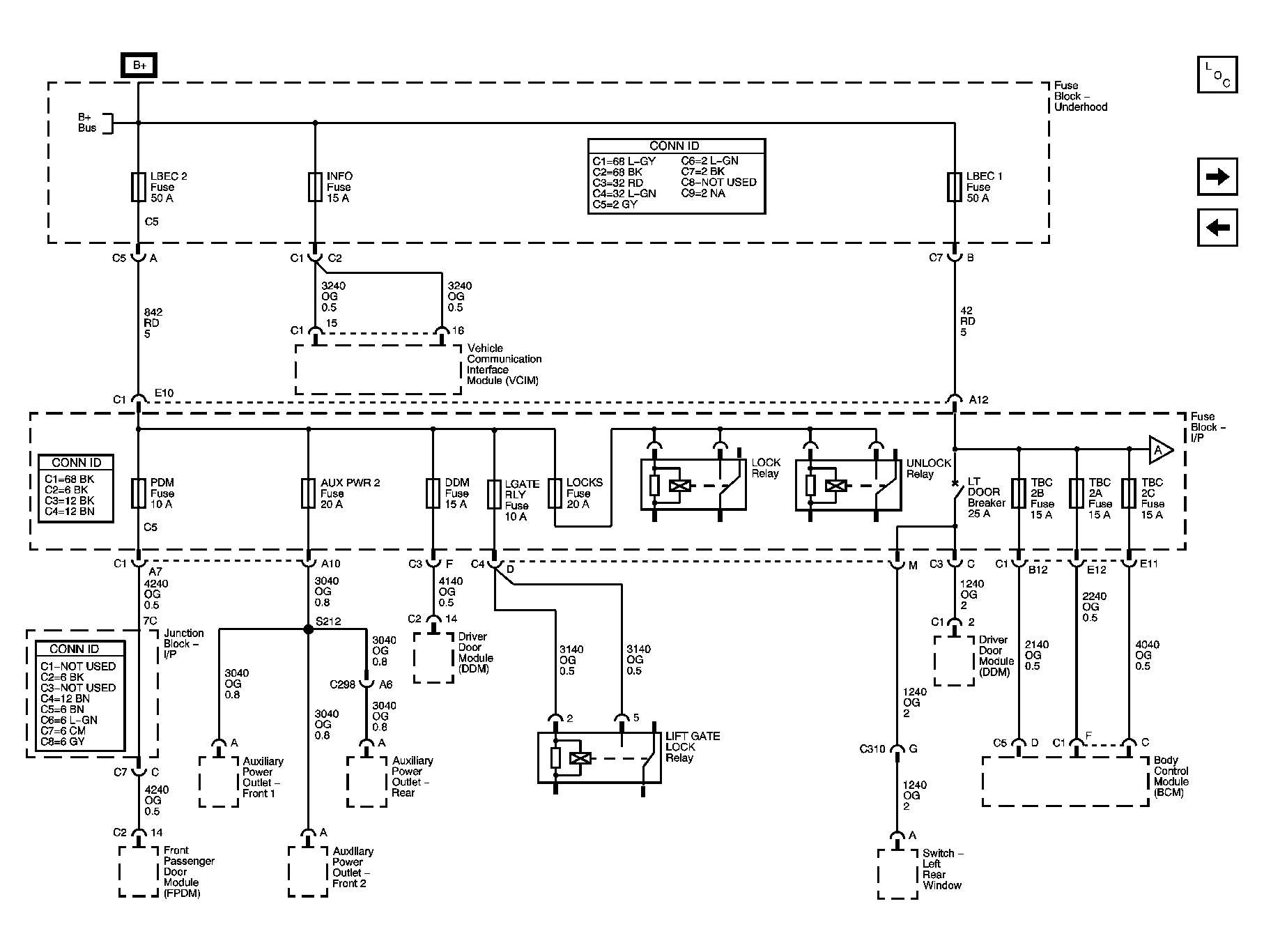

Fig 5: LBEC 1, LBEC 2, INFO, PDM, AUX PWR, DDM, LOCKS, TBC 2A, 2B, and 2C Fuses, and LT DOORS Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

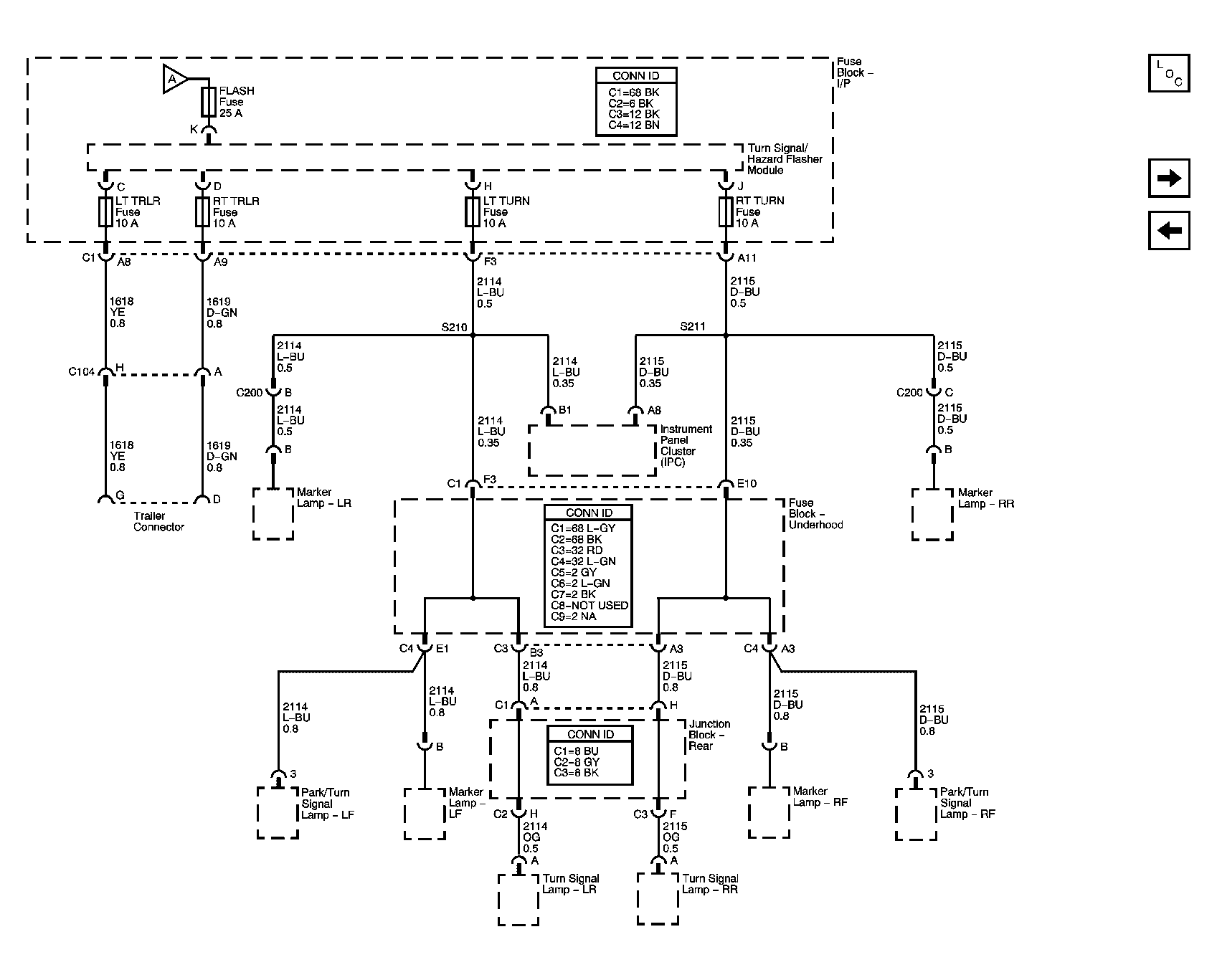

Fig 6: FLASH, LT TRLR, RT TRLR, LT TURN, and RT TURN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

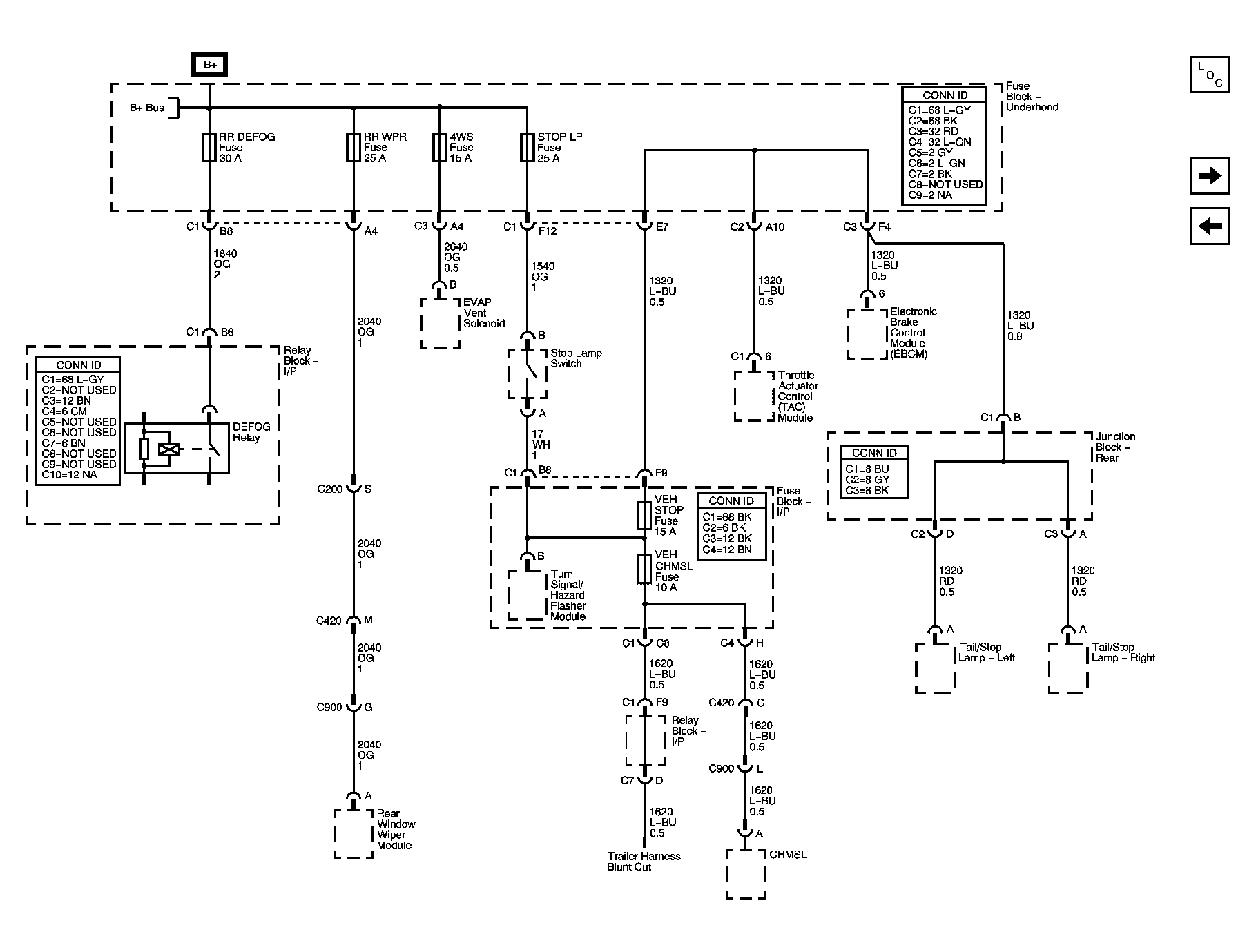

Fig 7: RR DEFOG, RR WPR, 4WS, STOP LP, VEH STOP, and VEH CHMSL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: PCM B, TREC, IPC/DIC, TBC BATT, SEO B1, SEO B2, and HVAC/ECAS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

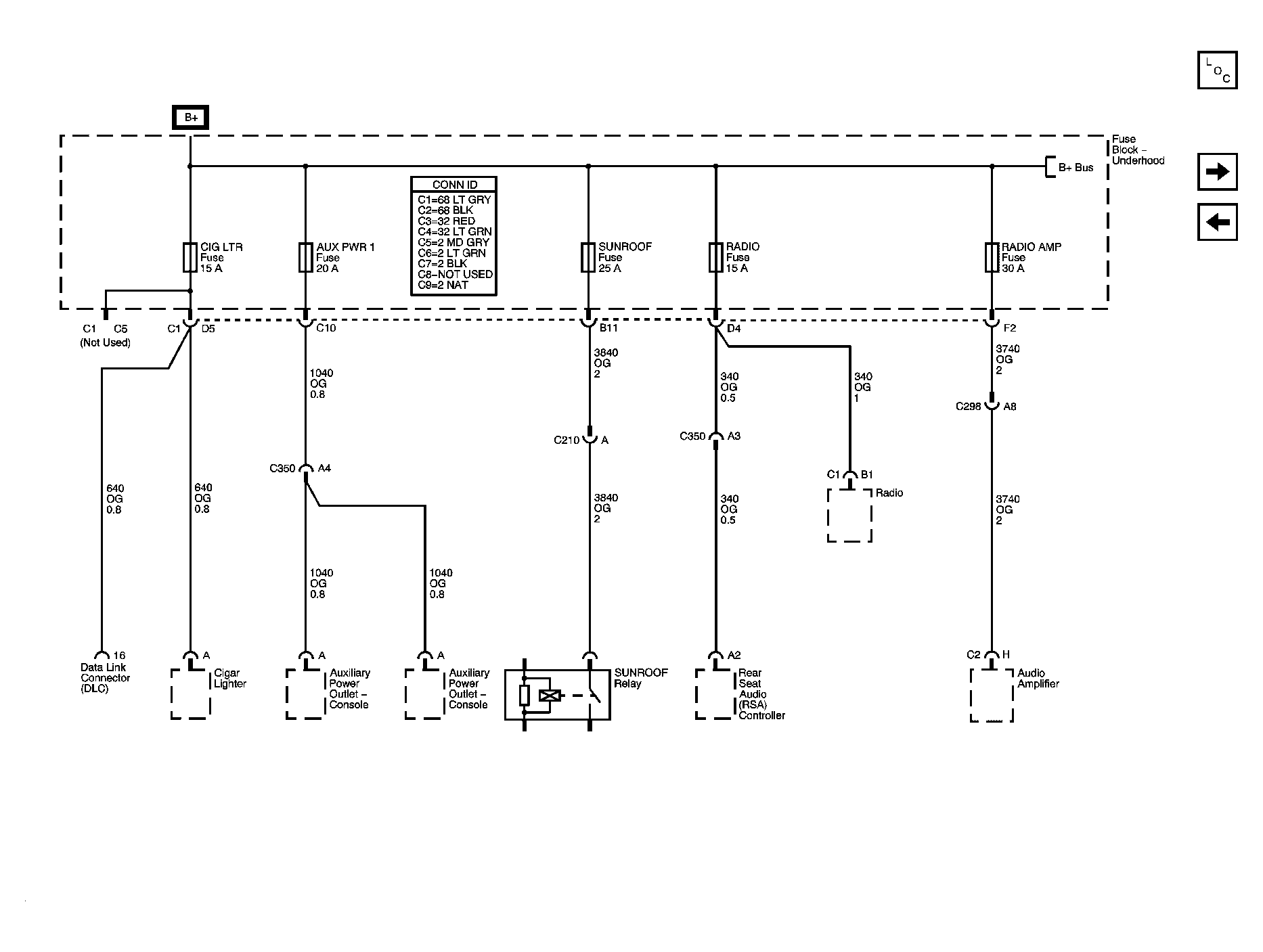

Fig 9: CIG LTR, AUX PWR 1, SUNROOF, RADIO, RADIO AMP, and RR HVAC Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

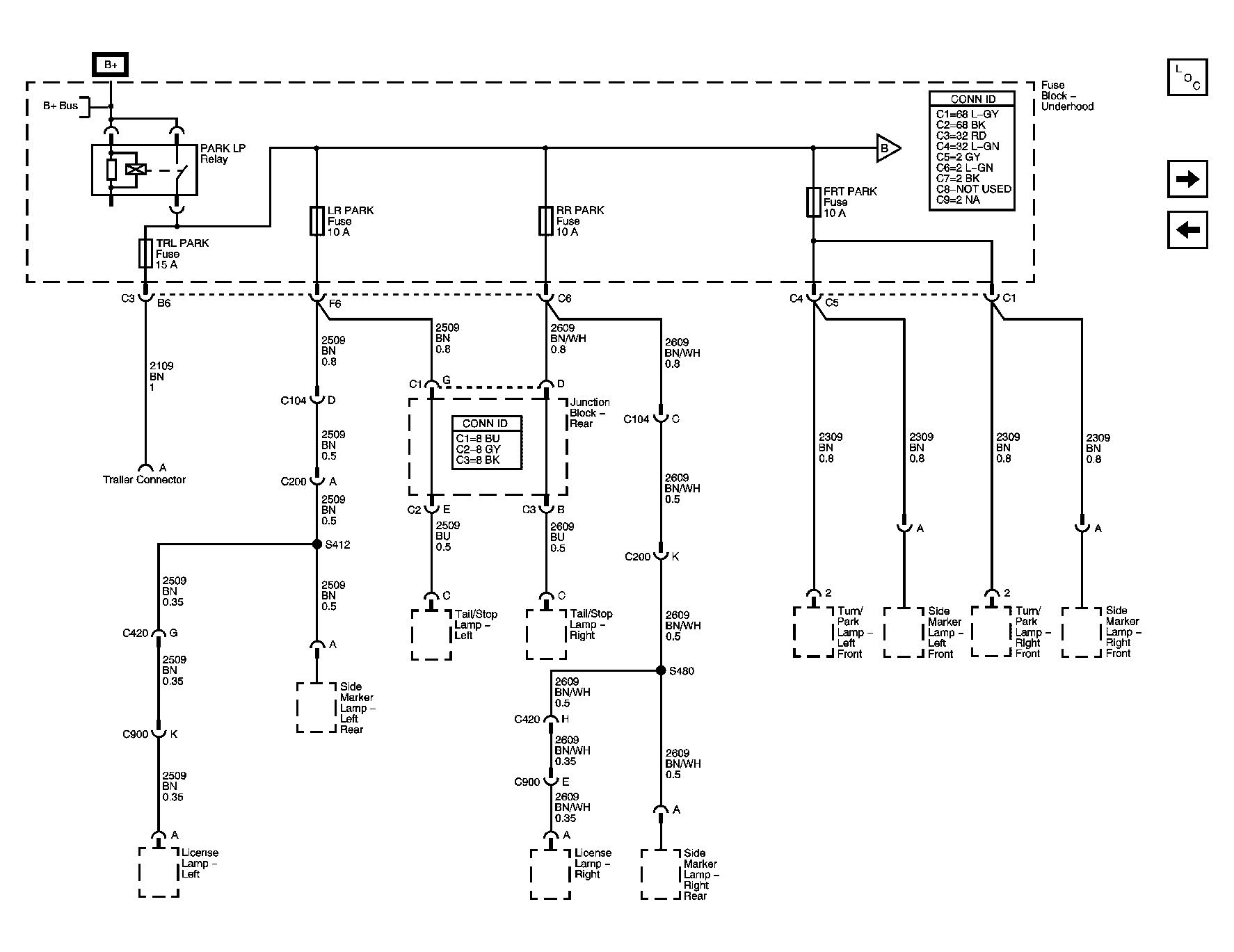

Fig 10: TRL PARK, LR PARK, RR PARK, and FRT PARK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

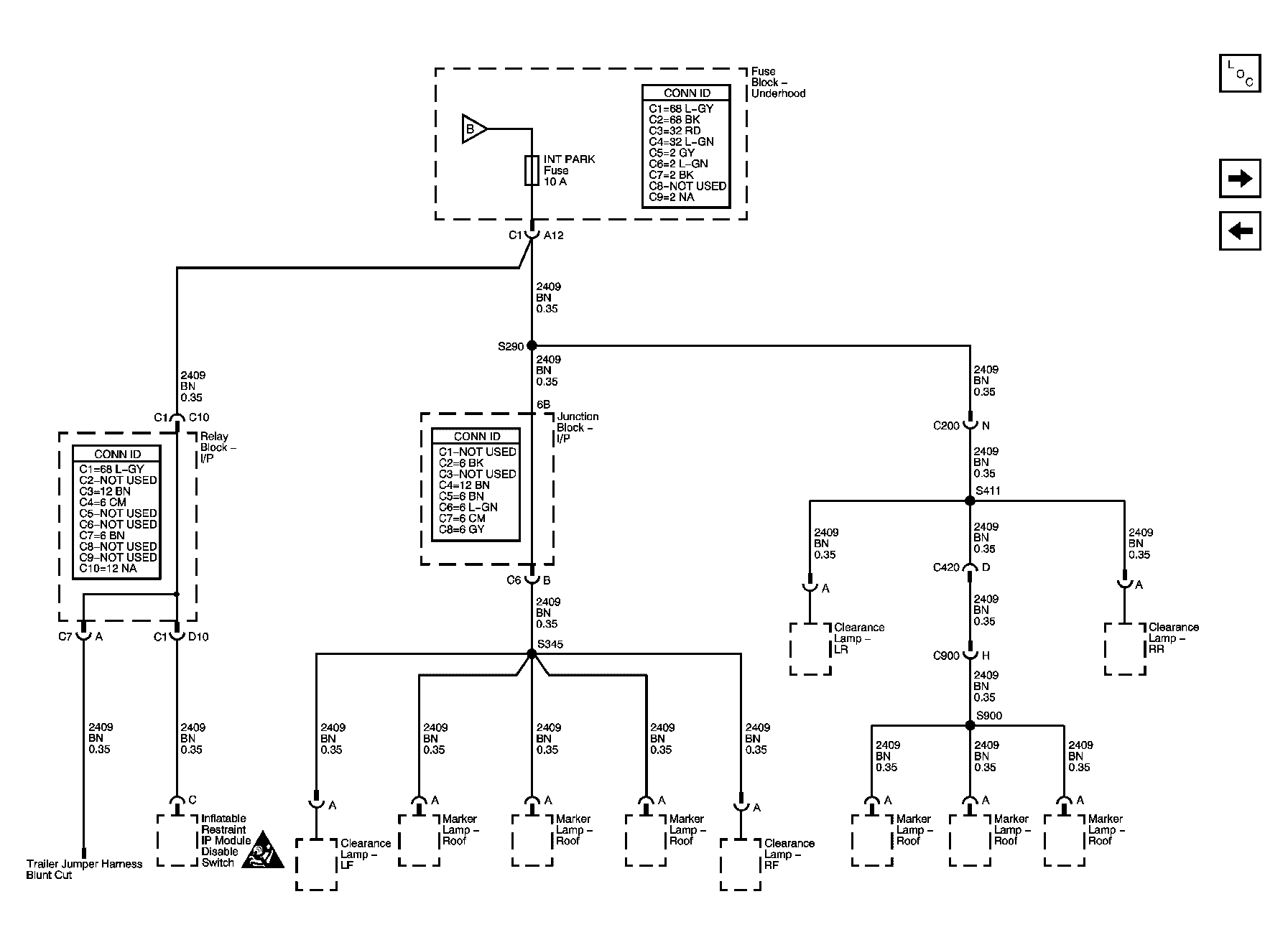

Fig 11: INT PARK Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: HORN, LO HDLP LT, LO HDLP RT, HI HDLP RT, and HI HDLP LT Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

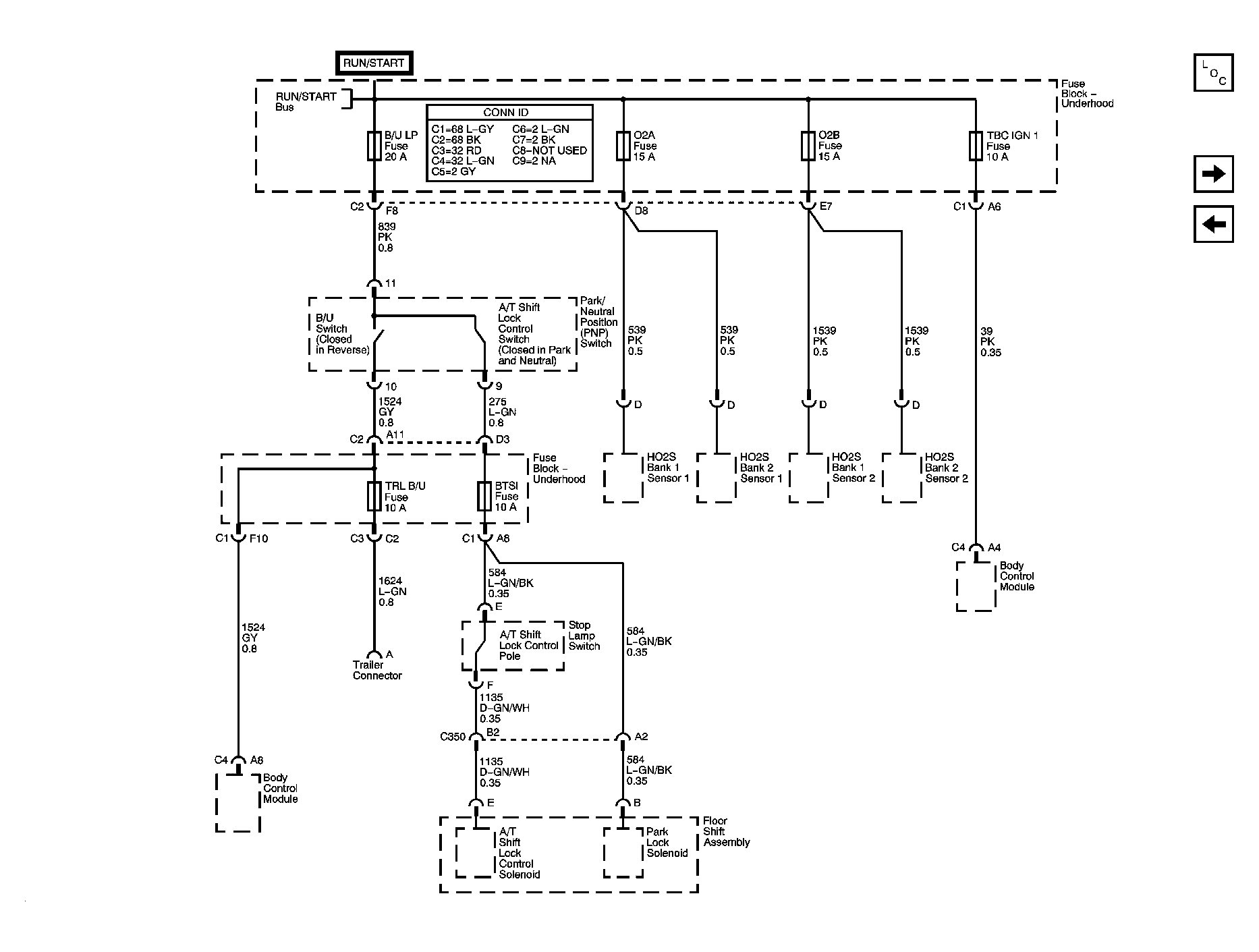

Fig 13: B/U LP, O2A, O2B, TBC IGN1, TRL B/U, and BTSI Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

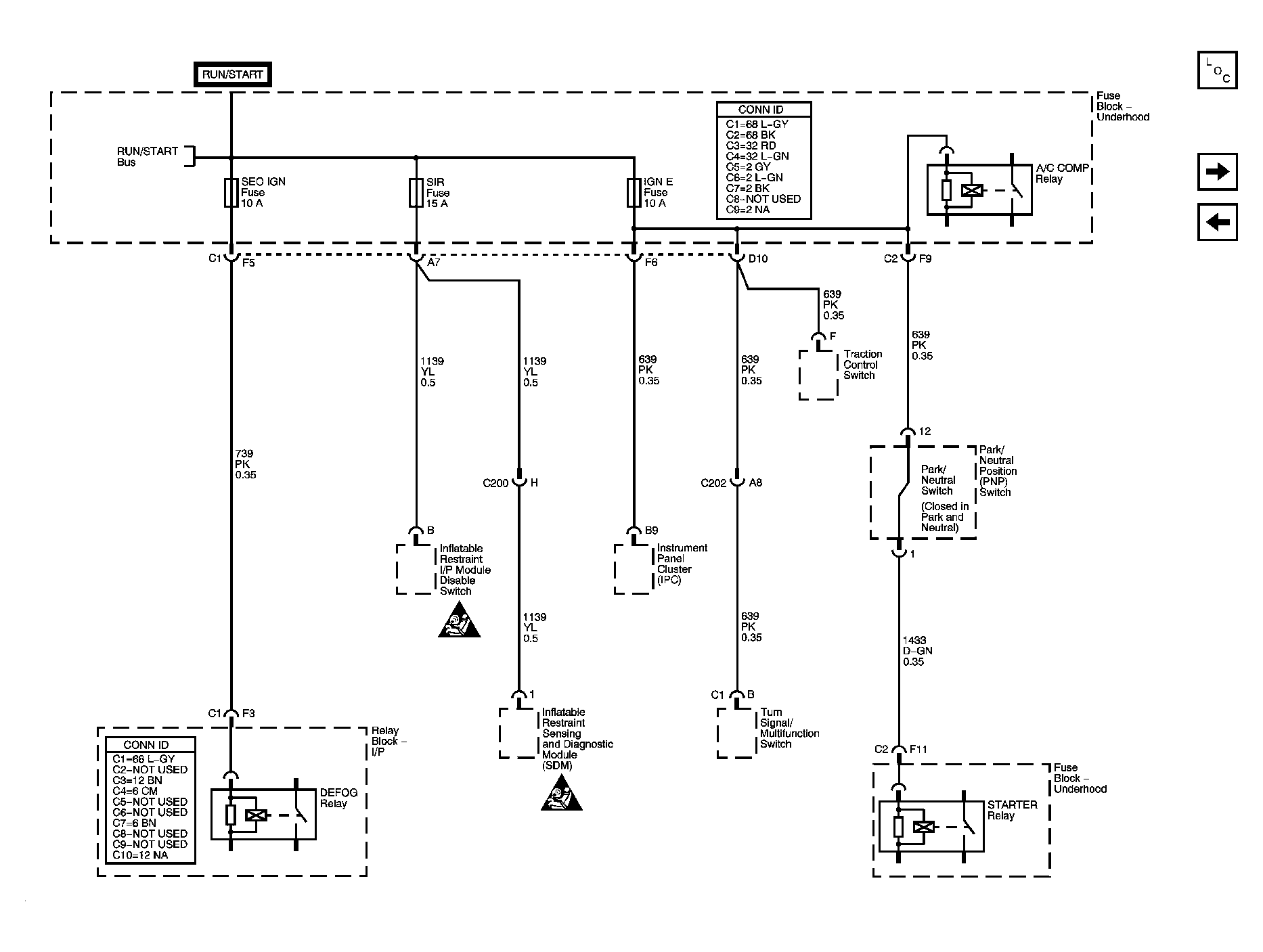

Fig 14: SEO IGN, SIR, and IGN E Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

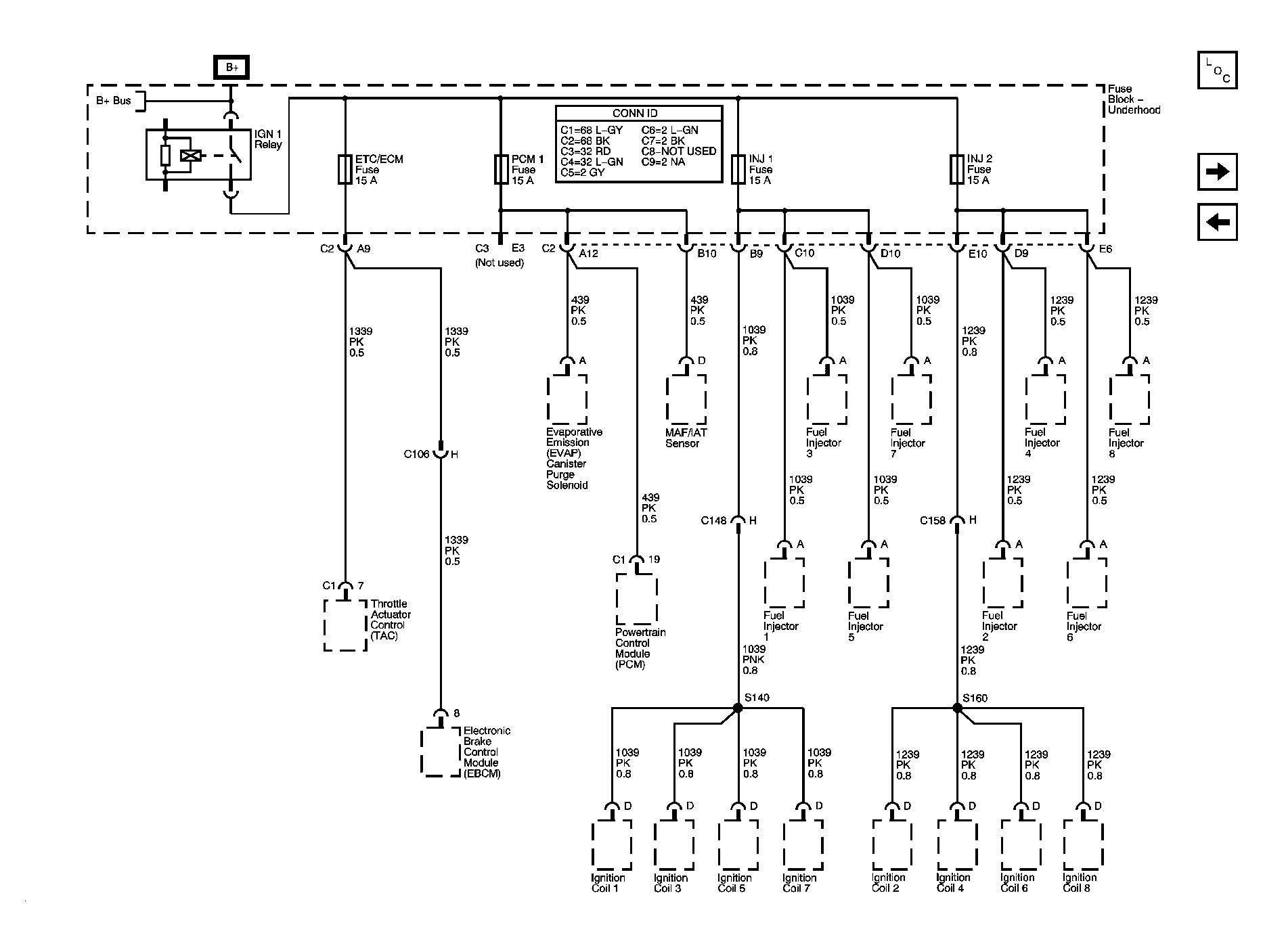

Fig 15: ECT/ECM, PCM 1, INJ 1, and INJ 2 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 16: WS WPR, SEO ACCY, RR WPR, TBC ACCY, TBC IGN 0, and IGN 0 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

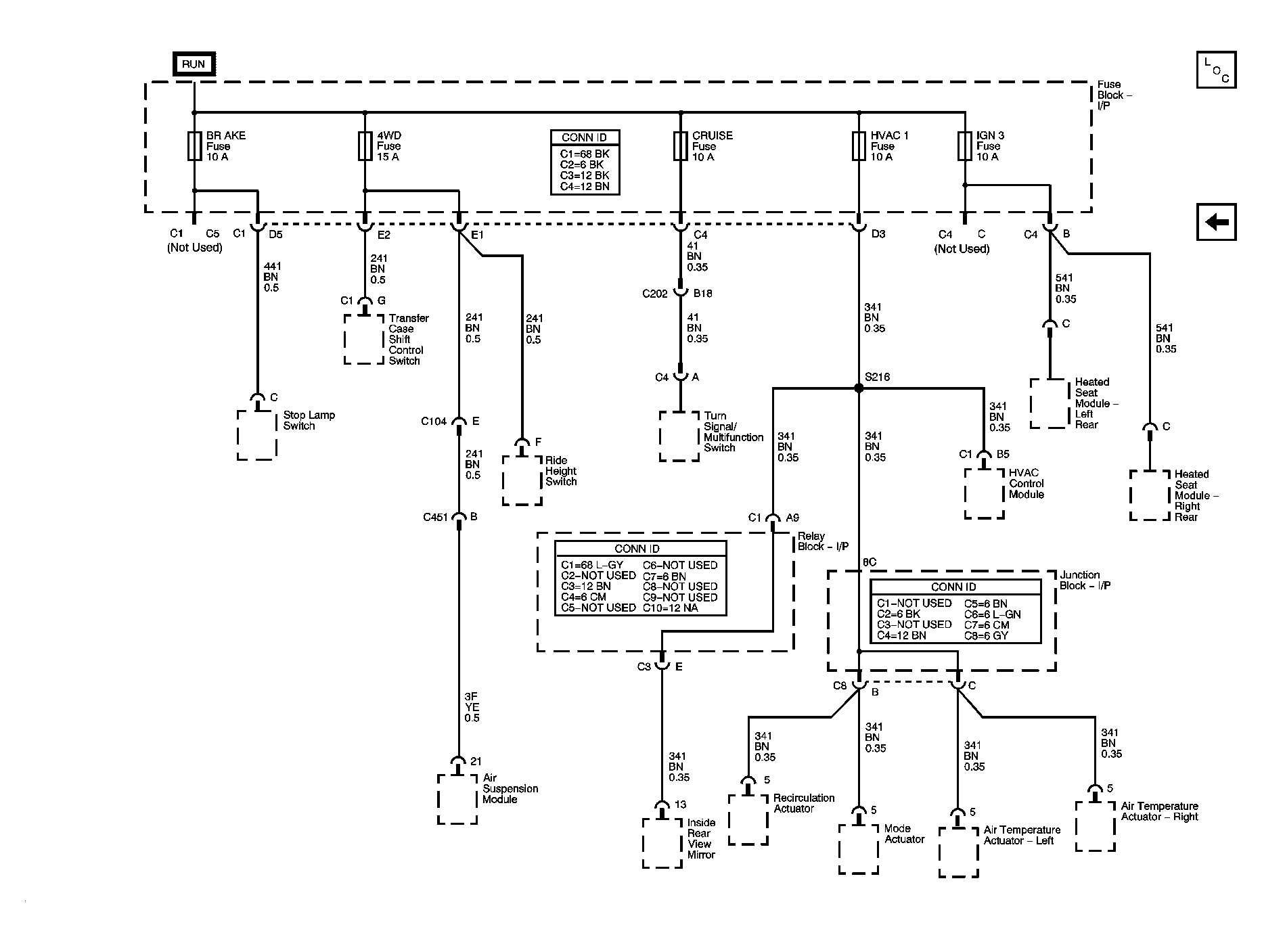

Fig 17: BRAKE, 4WD, CRUISE, HVAC 1, and IGN 3 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
