Ground Distribution Schematics

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: G100 Schematic

Courtesy of GENERAL MOTORS CORP.

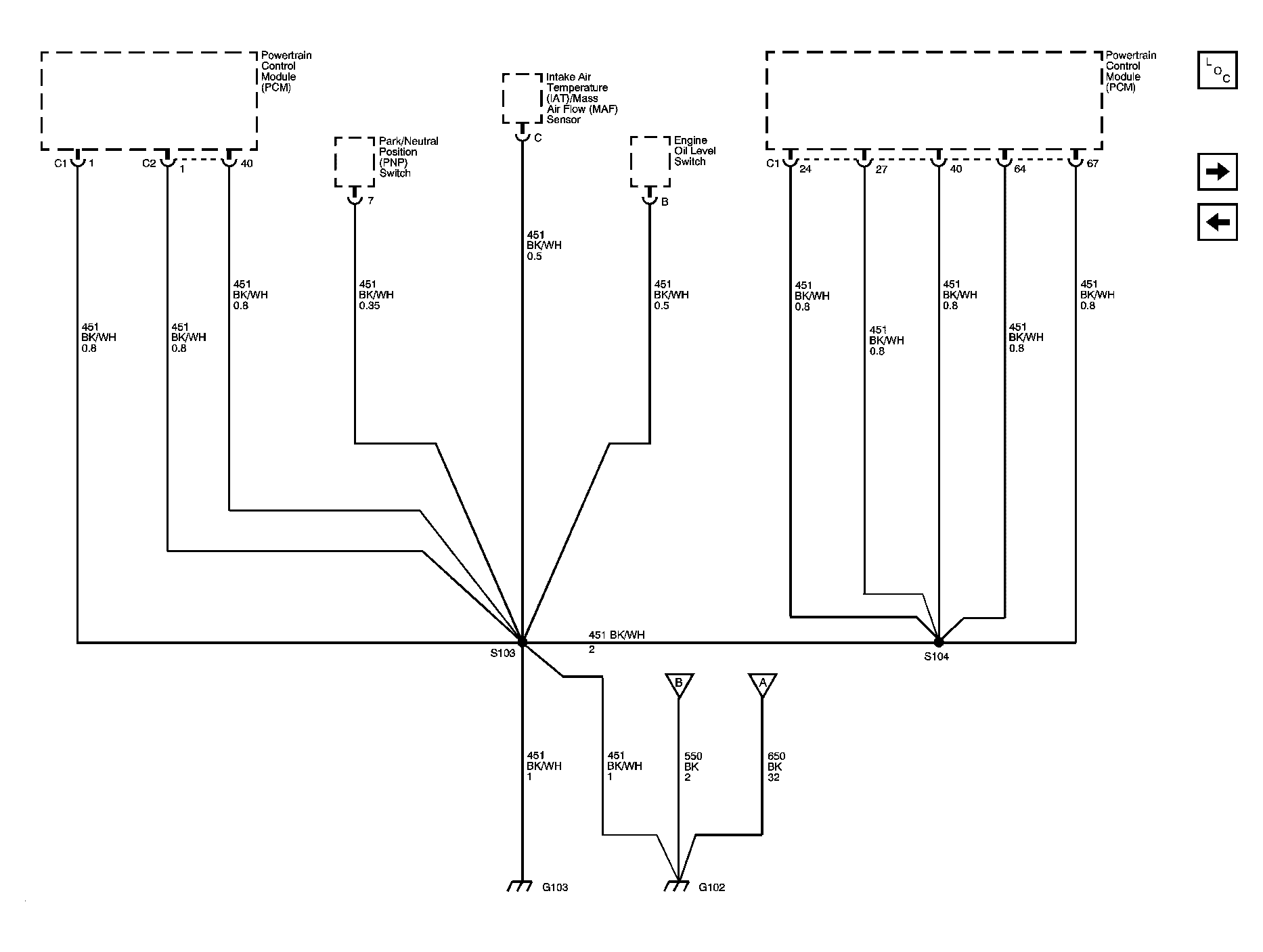

Fig 2: G102 and G103 Schematic

Courtesy of GENERAL MOTORS CORP.

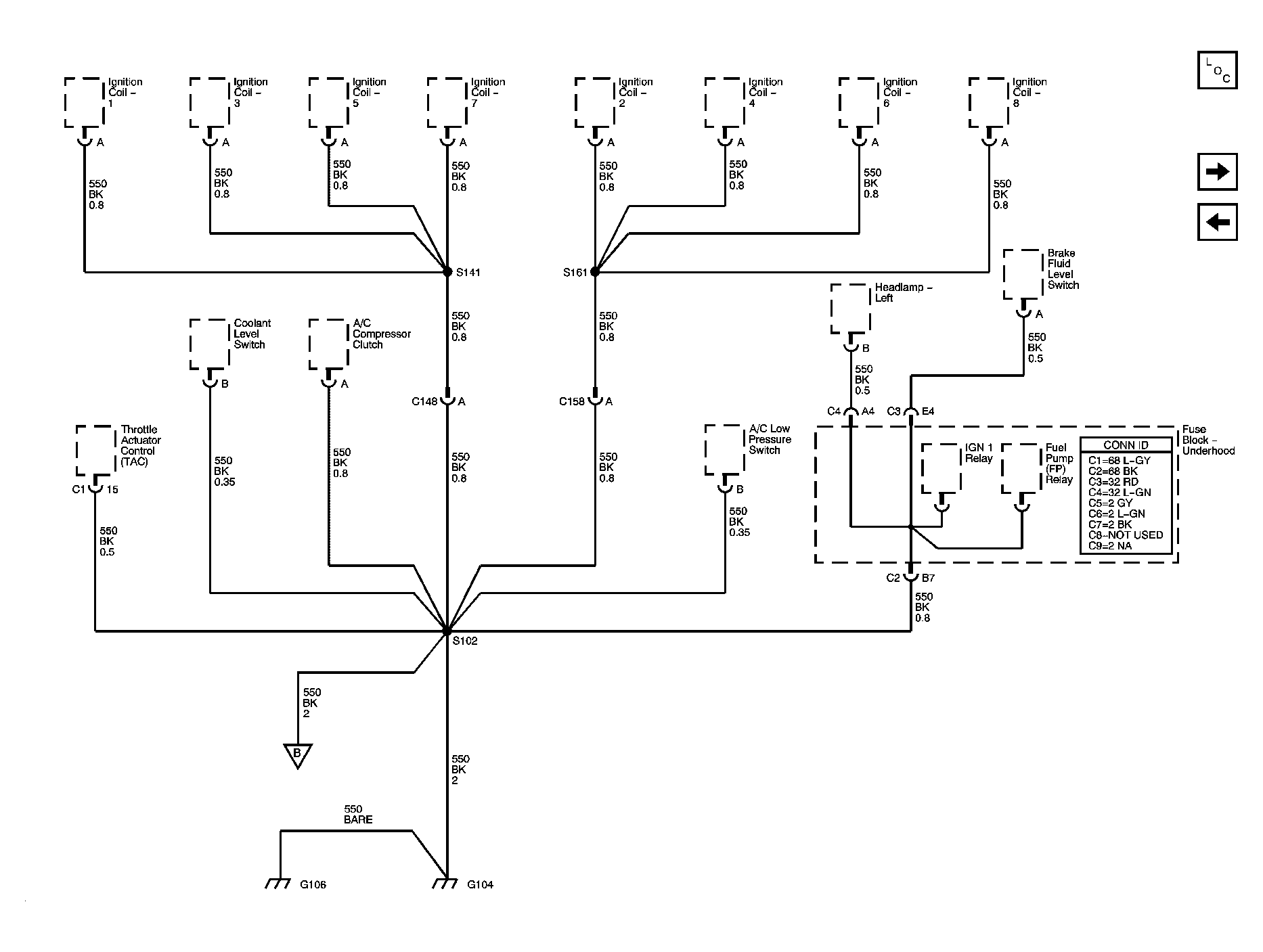

Fig 3: G104 and G106 Schematic

Courtesy of GENERAL MOTORS CORP.

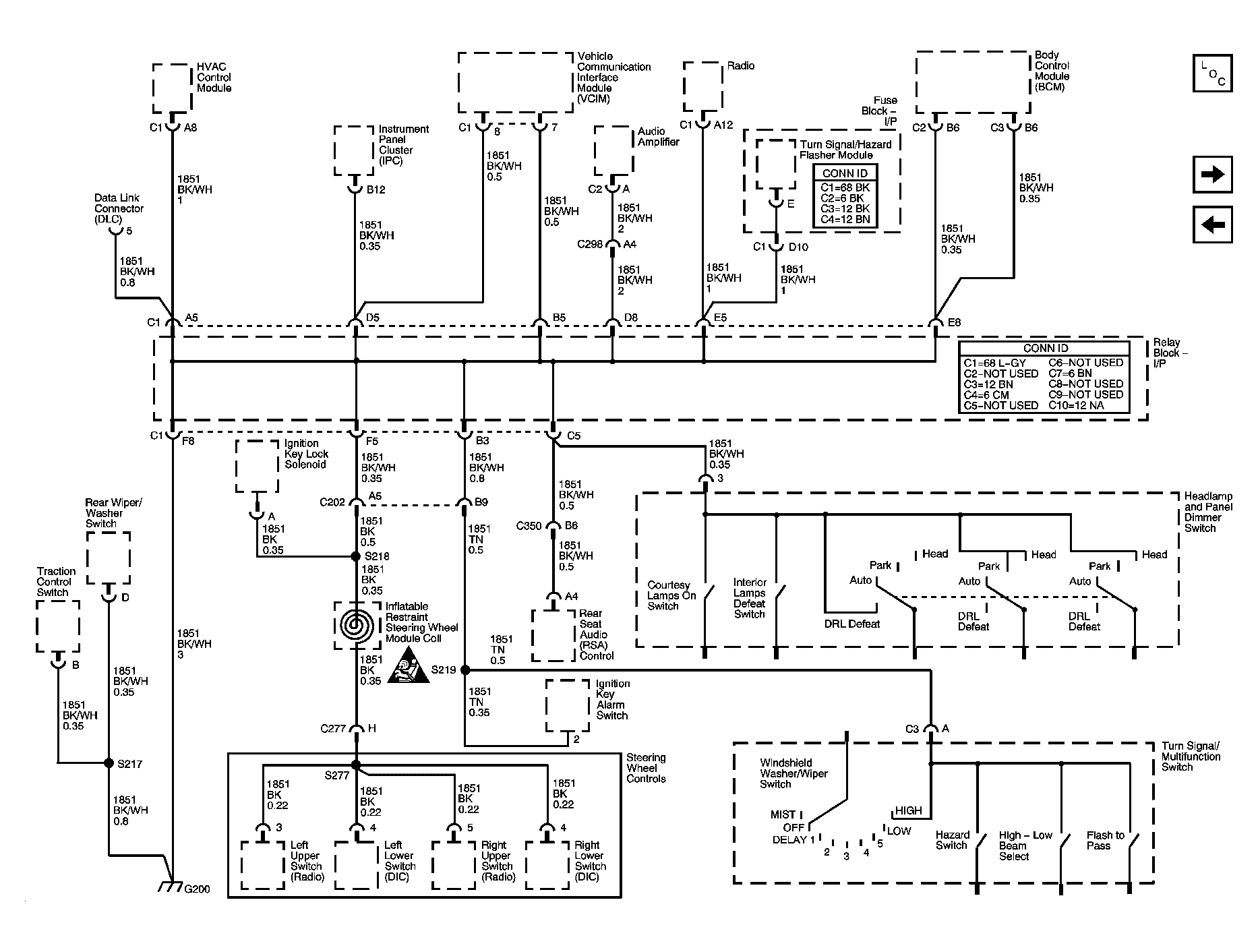

Fig 4: G200 Schematic

Courtesy of GENERAL MOTORS CORP.

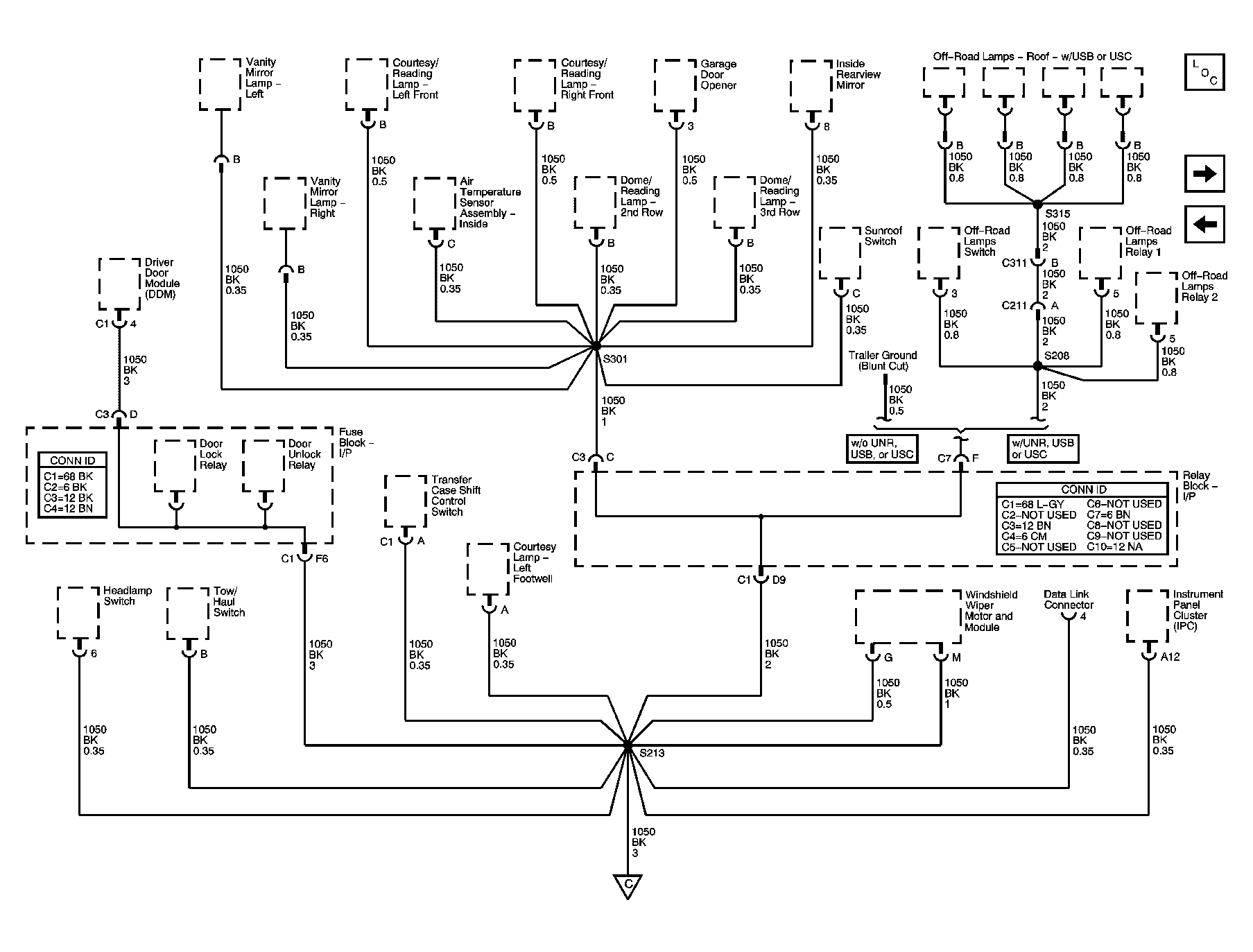

Fig 5: CKT 1050: S301 and S213 Schematic

Courtesy of GENERAL MOTORS CORP.

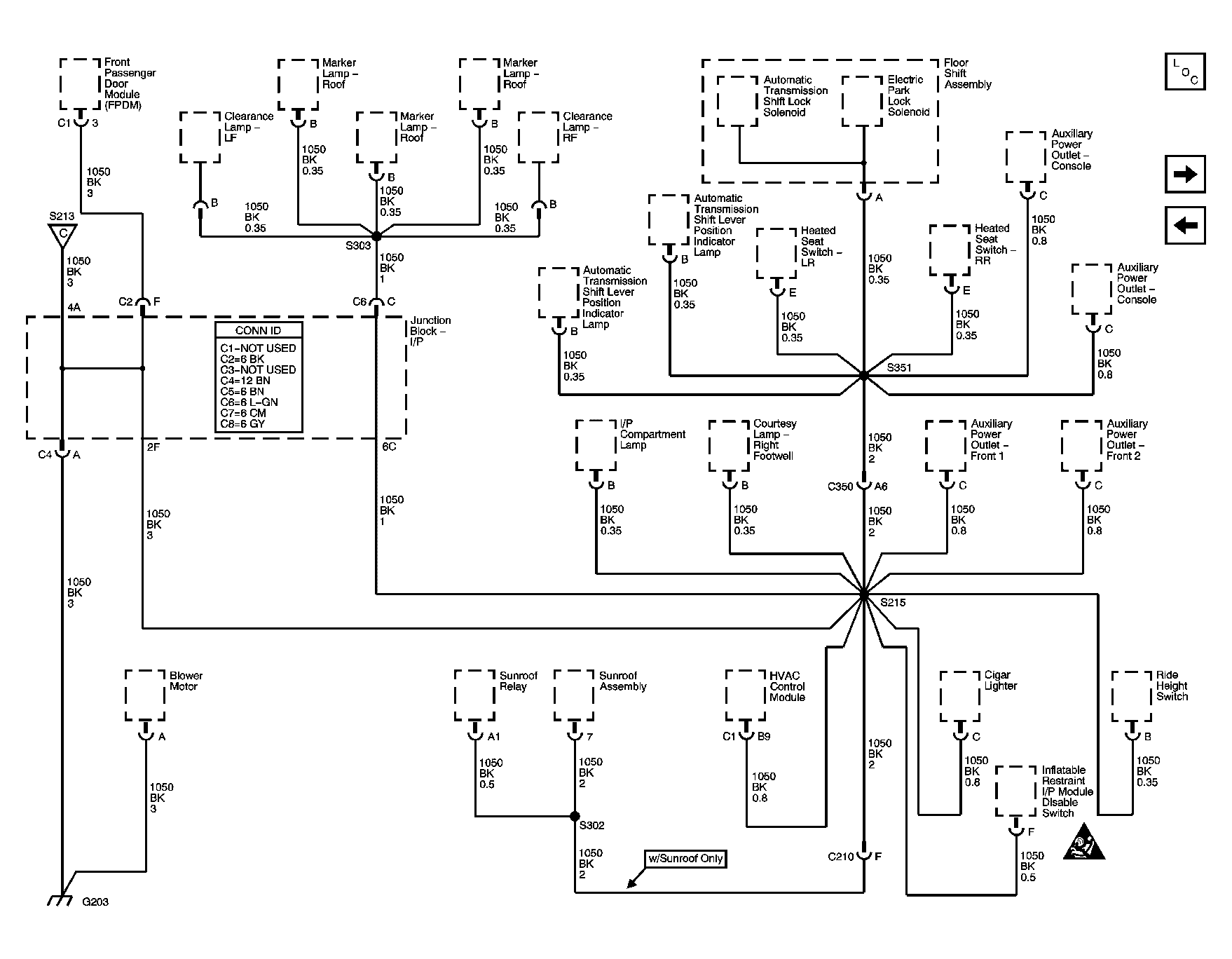

Fig 6: CKT 1050: G203, S302, S303, S351, and S215 Schematic

Courtesy of GENERAL MOTORS CORP.

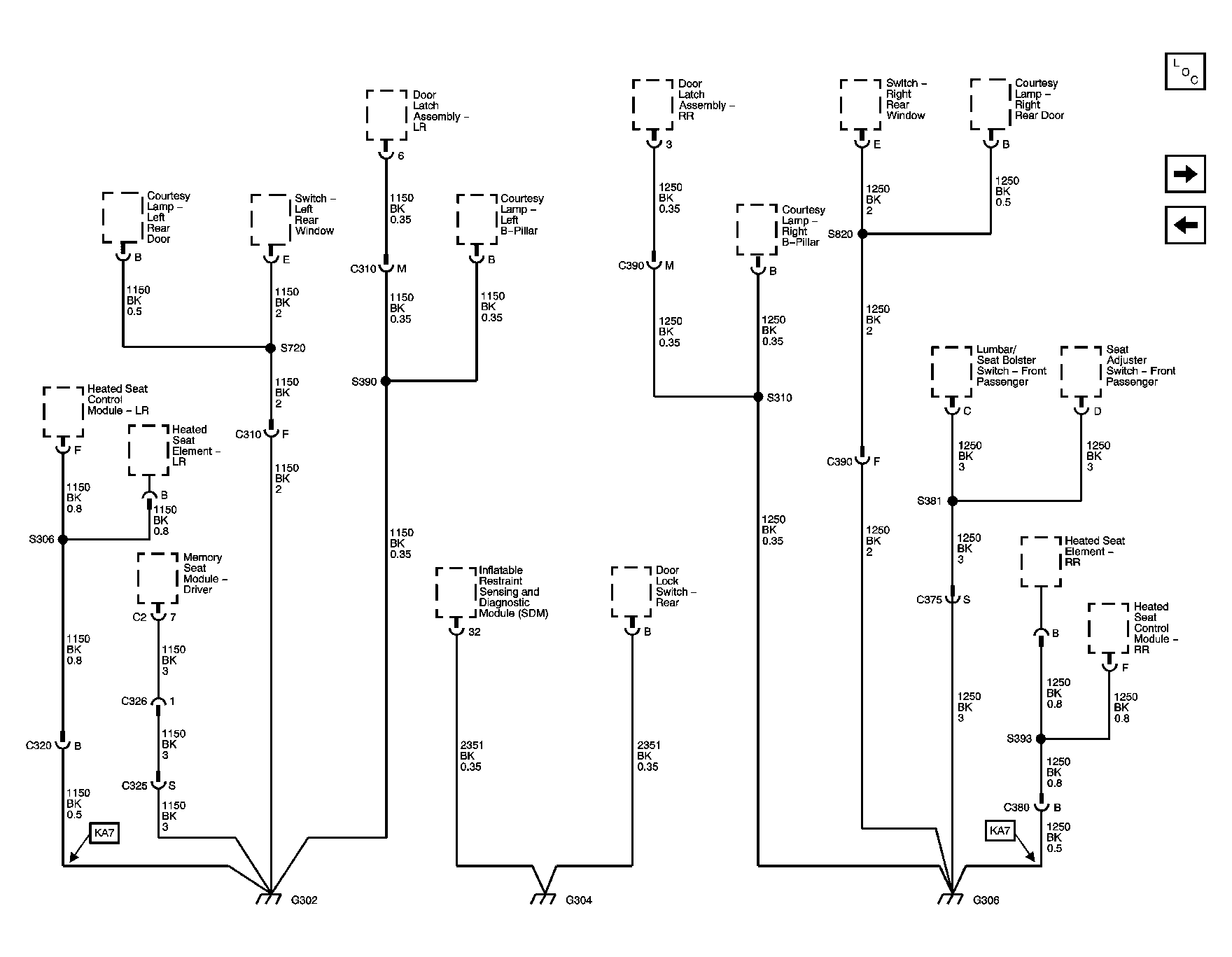

Fig 7: G302, G304, and G306 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: G308, G310, G401, and G300 Schematic

Courtesy of GENERAL MOTORS CORP.

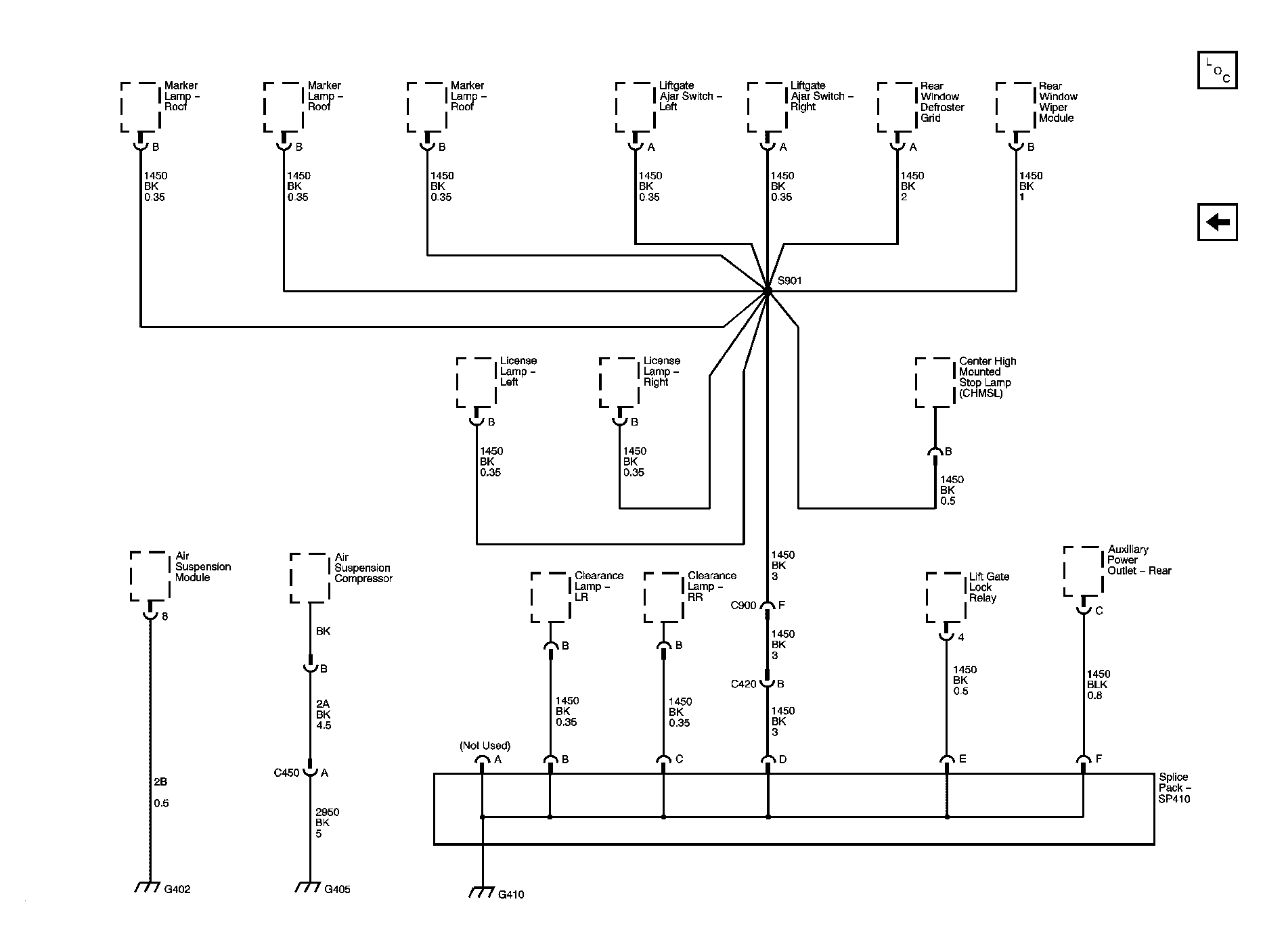

Fig 9: G402, G405, and G410 Schematic

Courtesy of GENERAL MOTORS CORP.
