Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuse block to the I/P wire harness block.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the retaining bolt.

    Tighten:  Tighten the bolt to 6 N.m (53 lb in)

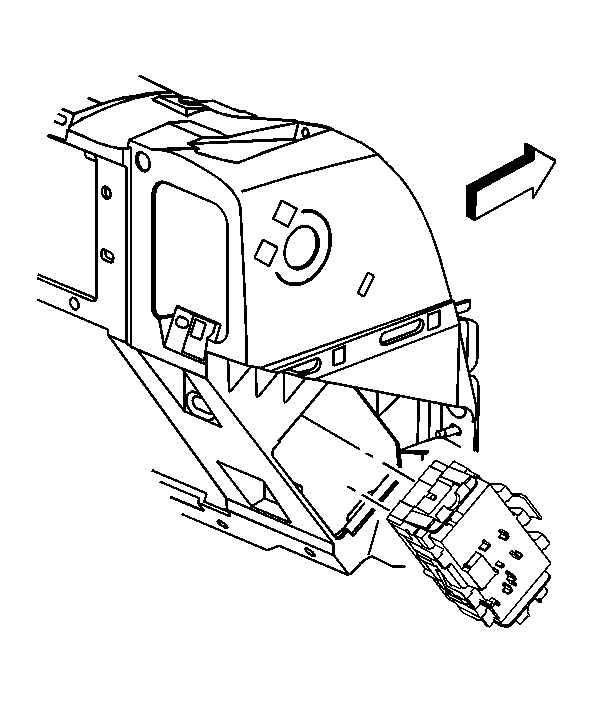

    3. Fig 1: Fuse Block & I/P
    GM375030Courtesy of GENERAL MOTORS CORP.
  3. Install the fuse block to the I/P till it clicks in place.

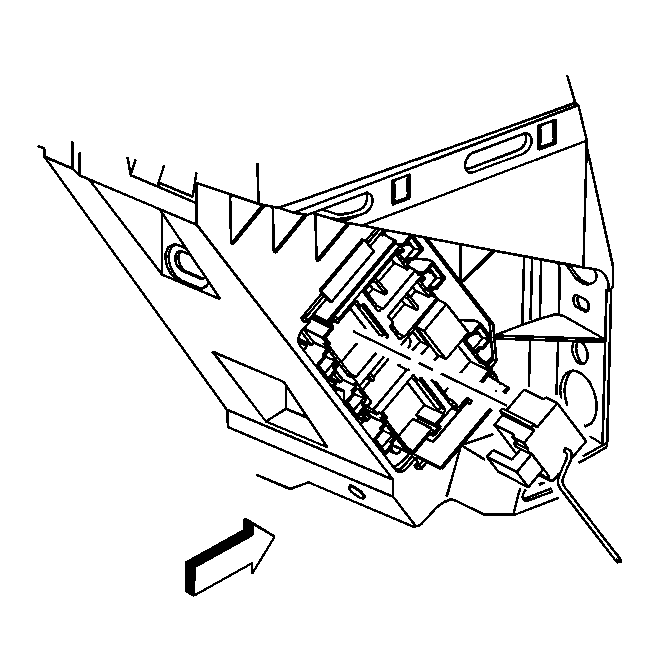

    4. Fig 2: Connecting Wiring Connectors To Fuse Block
    GM375032Courtesy of GENERAL MOTORS CORP.
  4. Connect the wiring connectors to the fuse block.

    Refer to Electrical Center Identification Views to ensure the right connections are made.

  5. Install the right side end panel.
