Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ground strap nut and terminal from the stud on the frame.
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

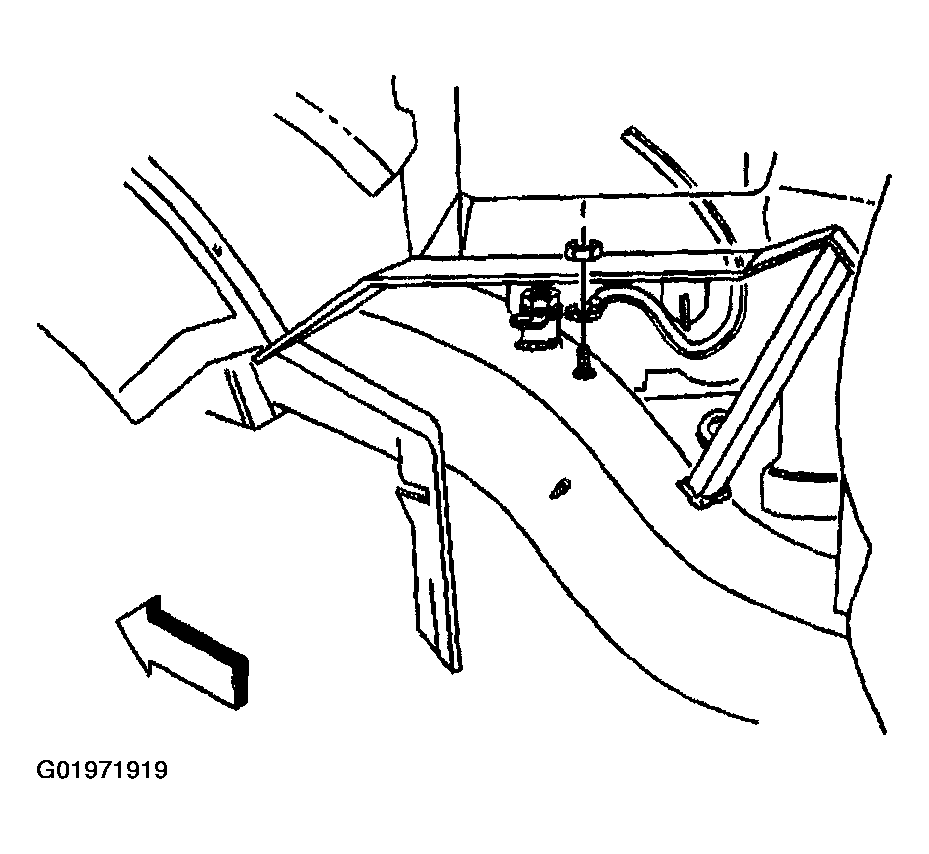

    Fig 1: Removing Ground Strap Nut & Terminal From Stud On Frame
    G01971919Courtesy of GENERAL MOTORS CORP.
  3. Remove the ground strap bolt, strap (1) and engine harness ground.
  4. Remove the ground strap.

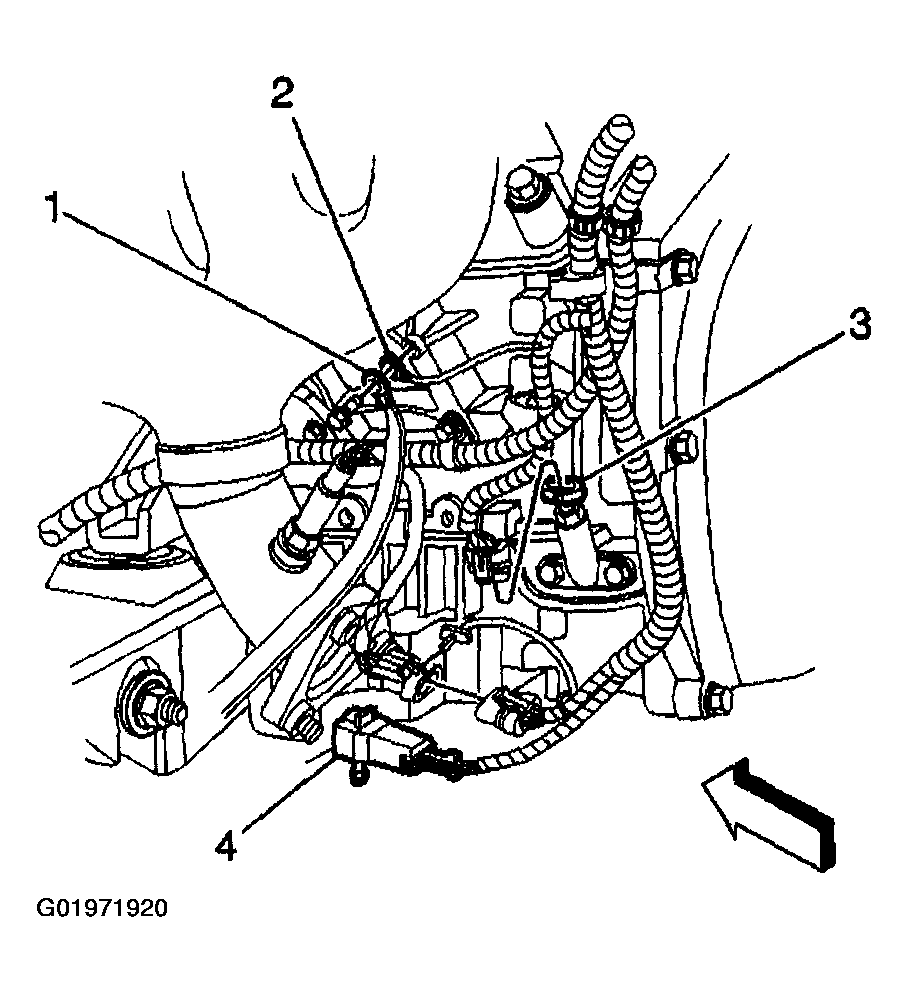

    Fig 2: Ground Strap
    G01971920Courtesy of GENERAL MOTORS CORP.
