Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra and 2004 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Insert the air cleaner element.
Install the air cleaner cover.
NOTE: Refer to Fastener Notice in Cautions and Notices.

Fig 1: Air Cleaner Cover

Courtesy of GENERAL MOTORS CORP.

Tighten the air cleaner cover screws until snug.
Install the outlet resonator to the MAT/IAT sensor.
Tighten the air cleaner outlet duct clamp at the MAF/IAT sensor.
Tighten: Tighten the clamp to 4 N.m (35 lb in).

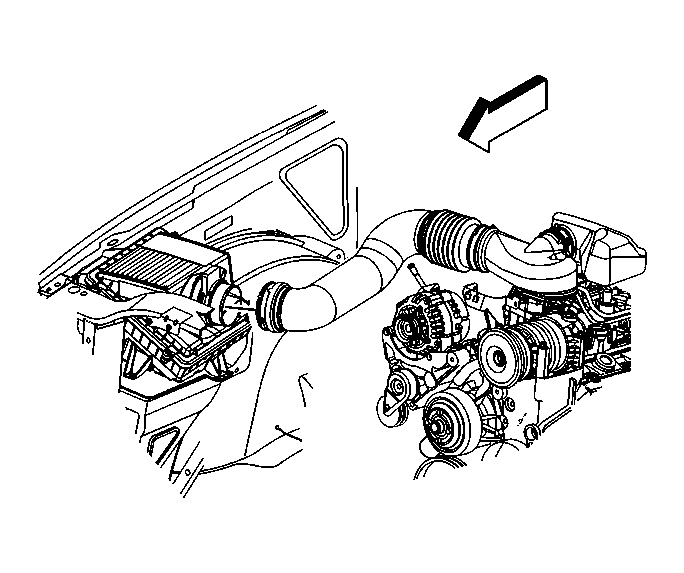

Fig 2: View Of Air Cleaner Outlet Duct Clamp

Courtesy of GENERAL MOTORS CORP.
