Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Air Filter Housing Retaining Pins
    GM729652Courtesy of GENERAL MOTORS CORP.
  1. Line up the retaining pins (2) with the grommets (3).
  2. Install the air cleaner assembly until the air cleaner is seated fully on the mounts and is up against the fender apron.

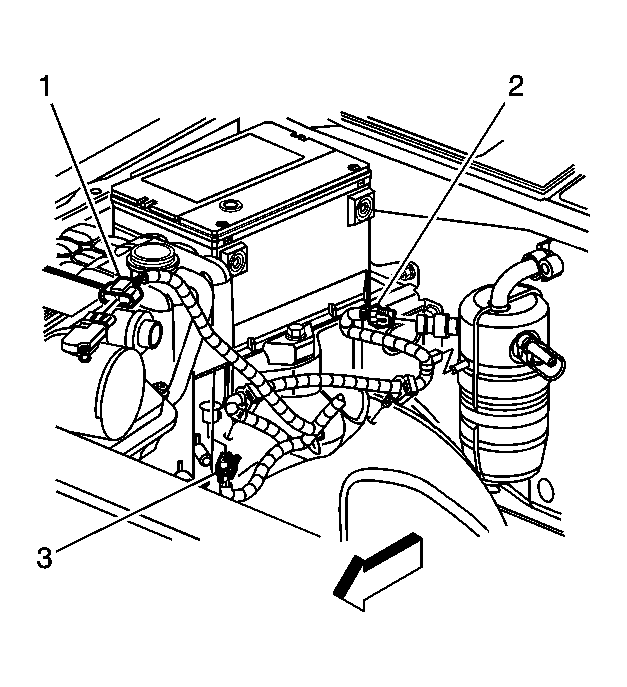

    3. Fig 2: Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Electrical Connector
    GM877698Courtesy of GENERAL MOTORS CORP.
  3. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  4. Connect the MAF/IAT sensor electrical connector (1).
