Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster bezel. Refer to Bezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages and Console.

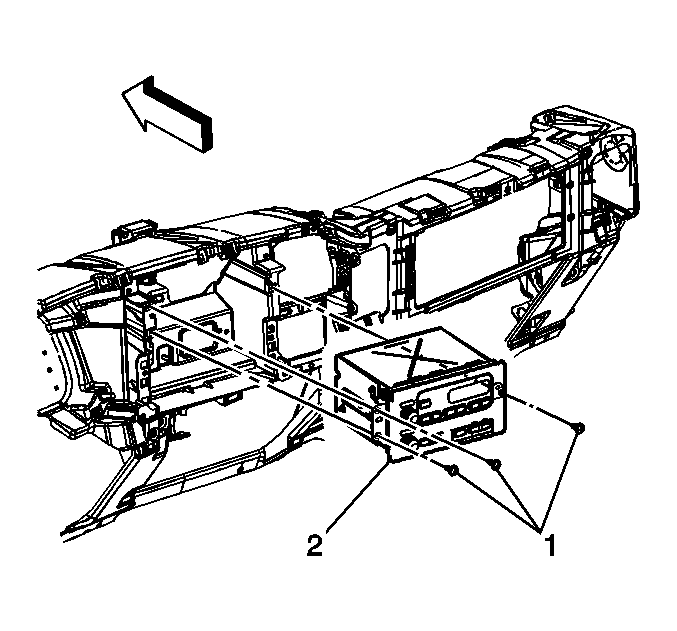

    2. Fig 1: Removing Radio Screws
    GM854851Courtesy of GENERAL MOTORS CORP.
  2. Remove the 3 screws (1).
  3. Pull out the radio assembly slightly in other to gain access to the connectors.
  4. Disconnect the wire connectors.
  5. Disconnect the coaxial cable from the radio.
  6. Remove the radio assembly from the I/P.
