Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the theft deterrent module to the opening in the IP retainer.

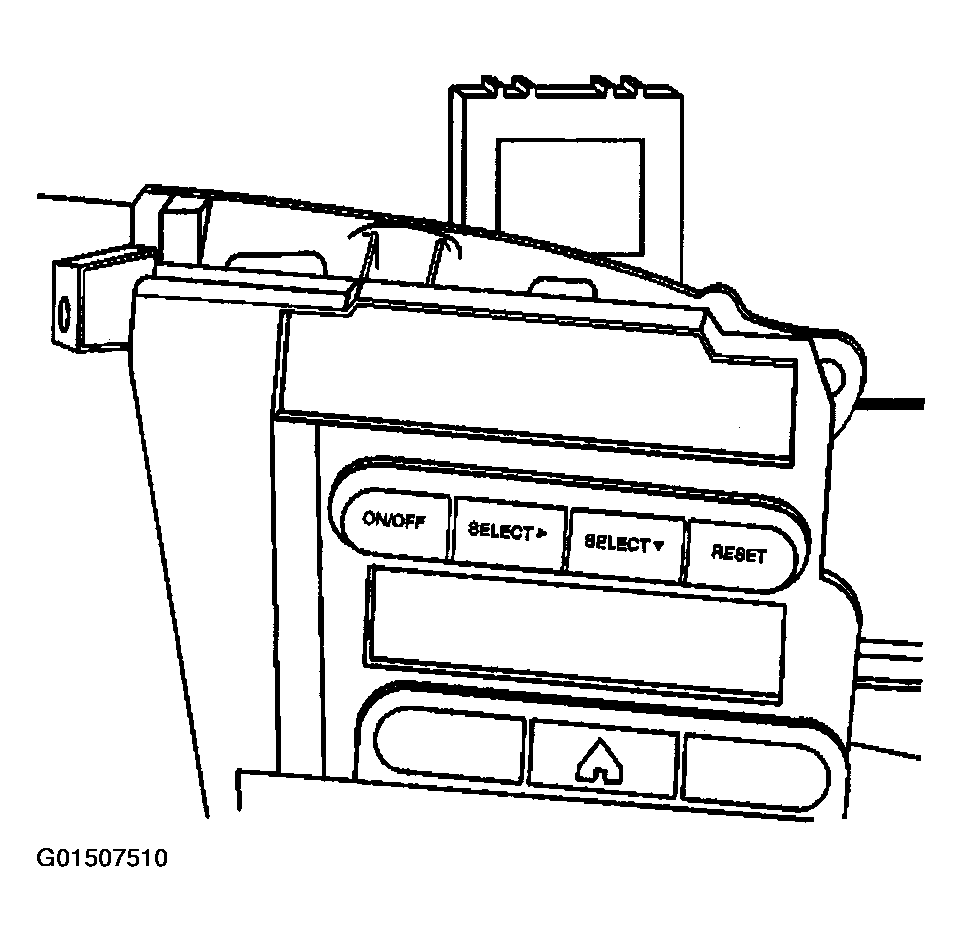

    Fig 1: Installing Theft Deterrent Control Module
    G01507510Courtesy of GENERAL MOTORS CORP.
  2. Push the theft deterrent module (3) downward until the retainer clip (2) engages, securing the module to the IP retainer.
  3. Connect the theft deterrent module electrical connector (1).

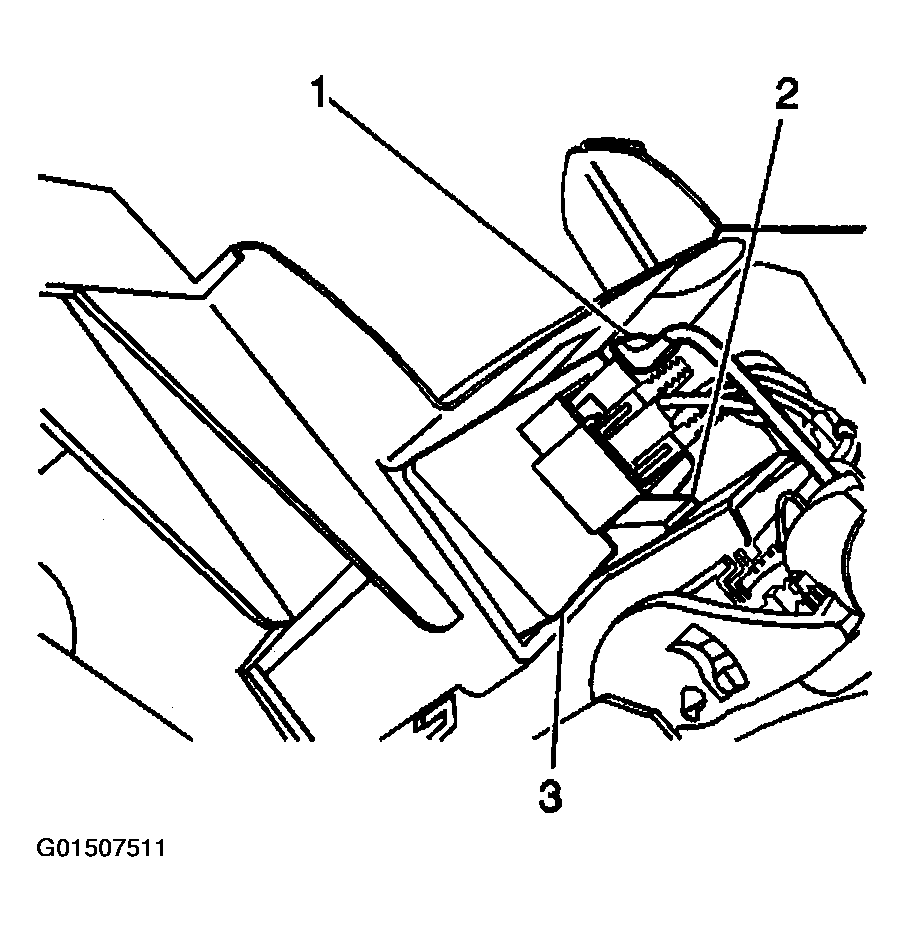

    Fig 2: Theft Deterrent Control Module, Retainer Clip & Electrical Connector
    G01507511Courtesy of GENERAL MOTORS CORP.
  4. Install the Instrument Panel Trim Plate Bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PAN in Instrument Panel, Gages and Console.
  5. Perform the Programing Theft Deterrent System Components procedure. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS  .
