Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the carpet retainer retaining clips to the openings in the body.
  2. Push downward in order to engage the retainer clips securing the carpet retainer to the vehicle.
  3. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  4. Close the door.

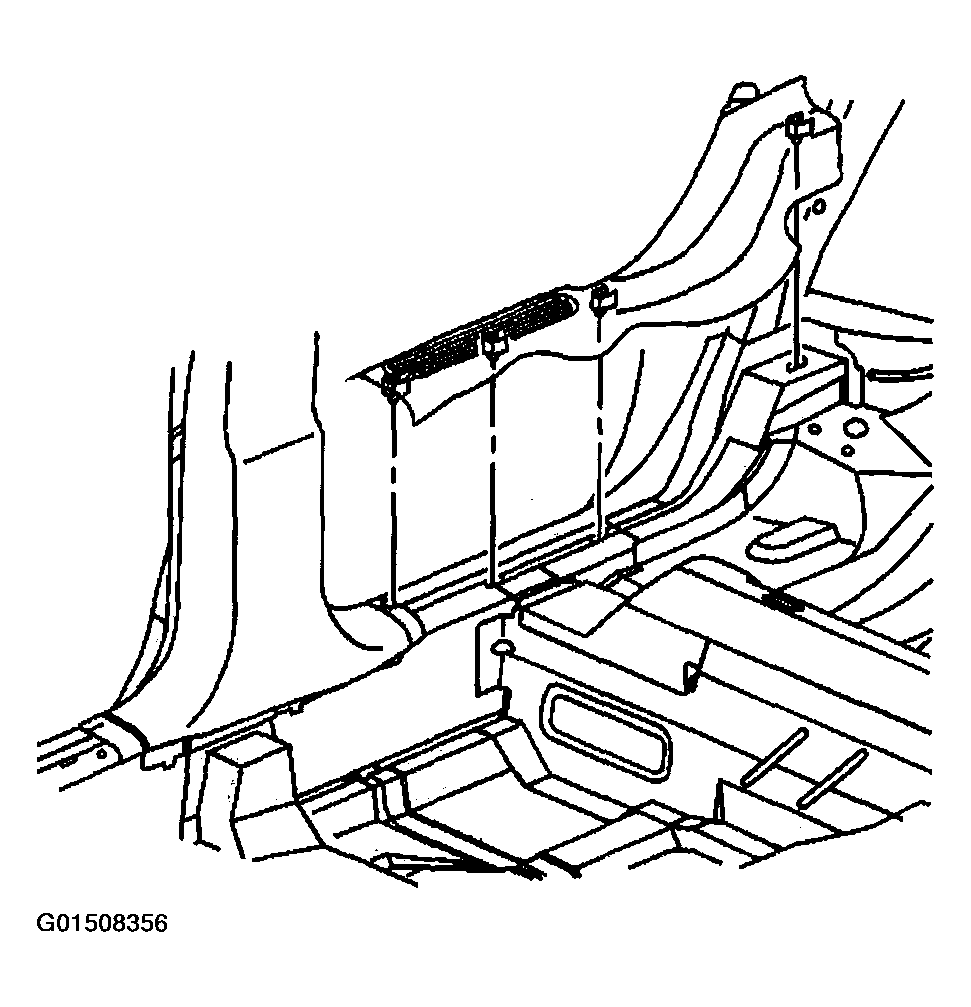

    Fig 1: Installing Rear Carpet Retainer
    G01508356Courtesy of GENERAL MOTORS CORP.
