Power Window Inoperative from Master Switch

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

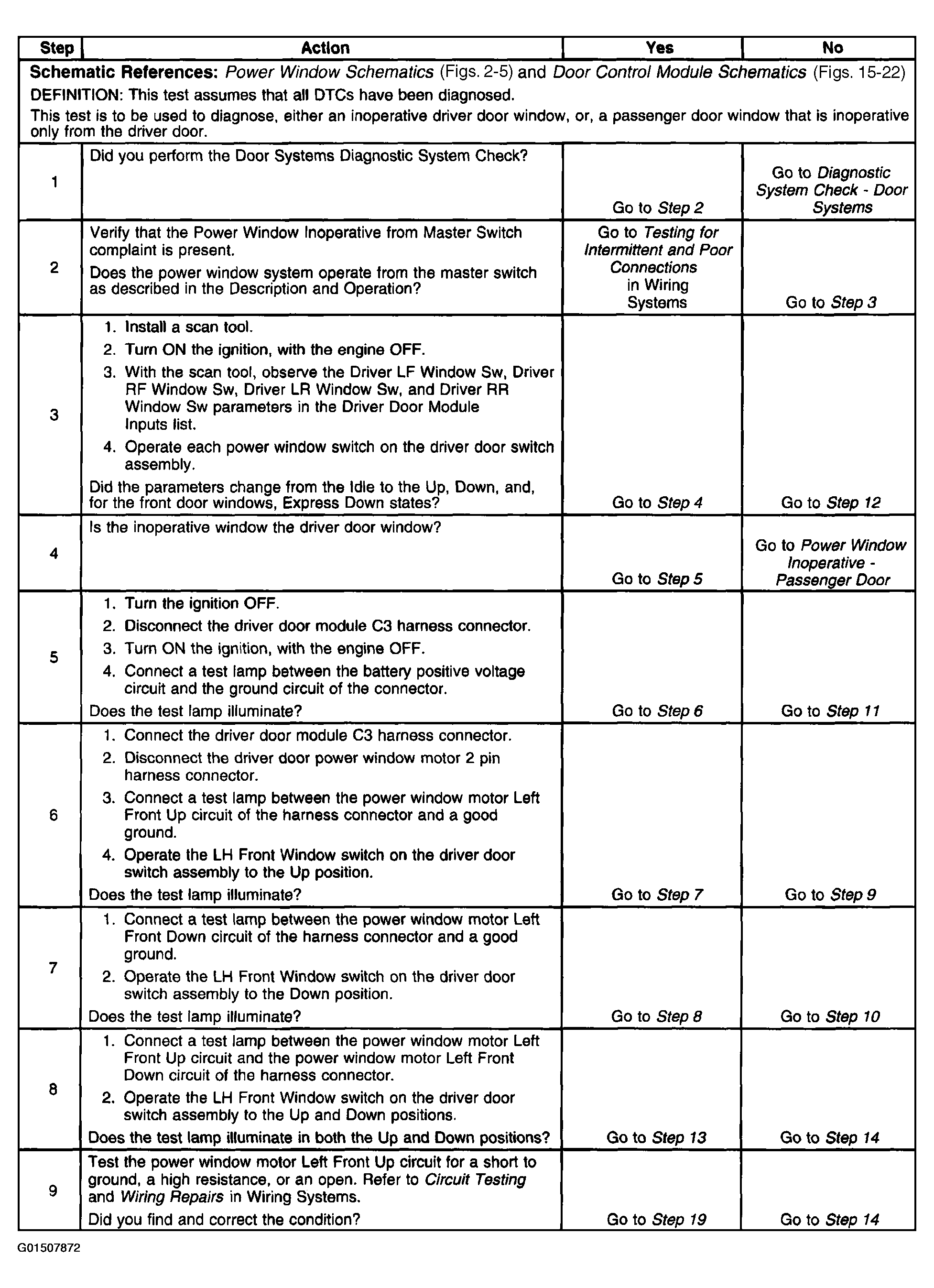

Fig 1: Power Window Inoperative From Master Switch Symptom Table (1 Of 2)
G01507872Courtesy of GENERAL MOTORS CORP.

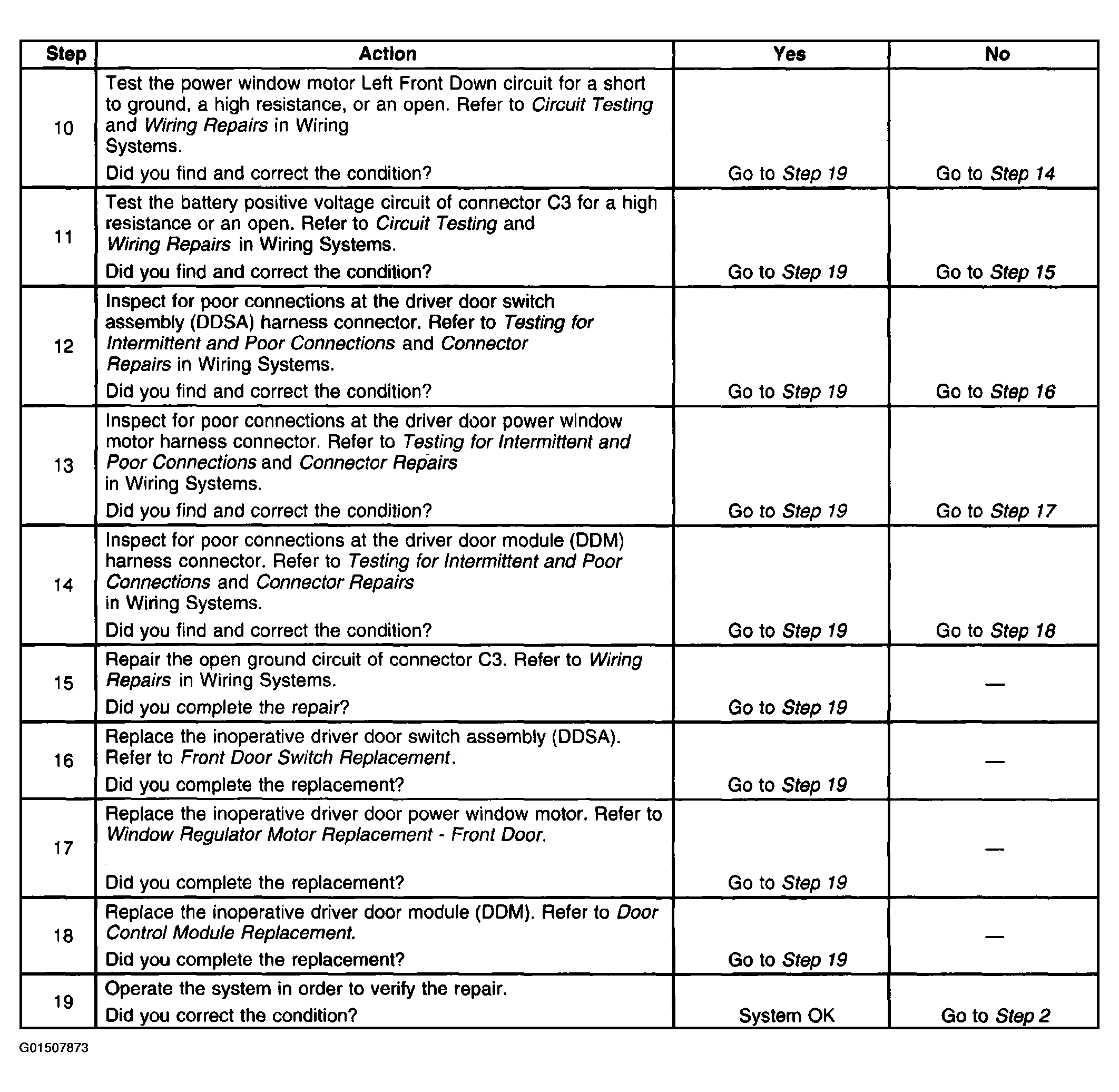

Fig 2: Power Window Inoperative From Master Switch Symptom Table (2 Of 2)
G01507873Courtesy of GENERAL MOTORS CORP.
