Fuel Level Specifications

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The values in the table are approximate values based on information obtained from properly operating vehicles. Actual results may vary slightly.

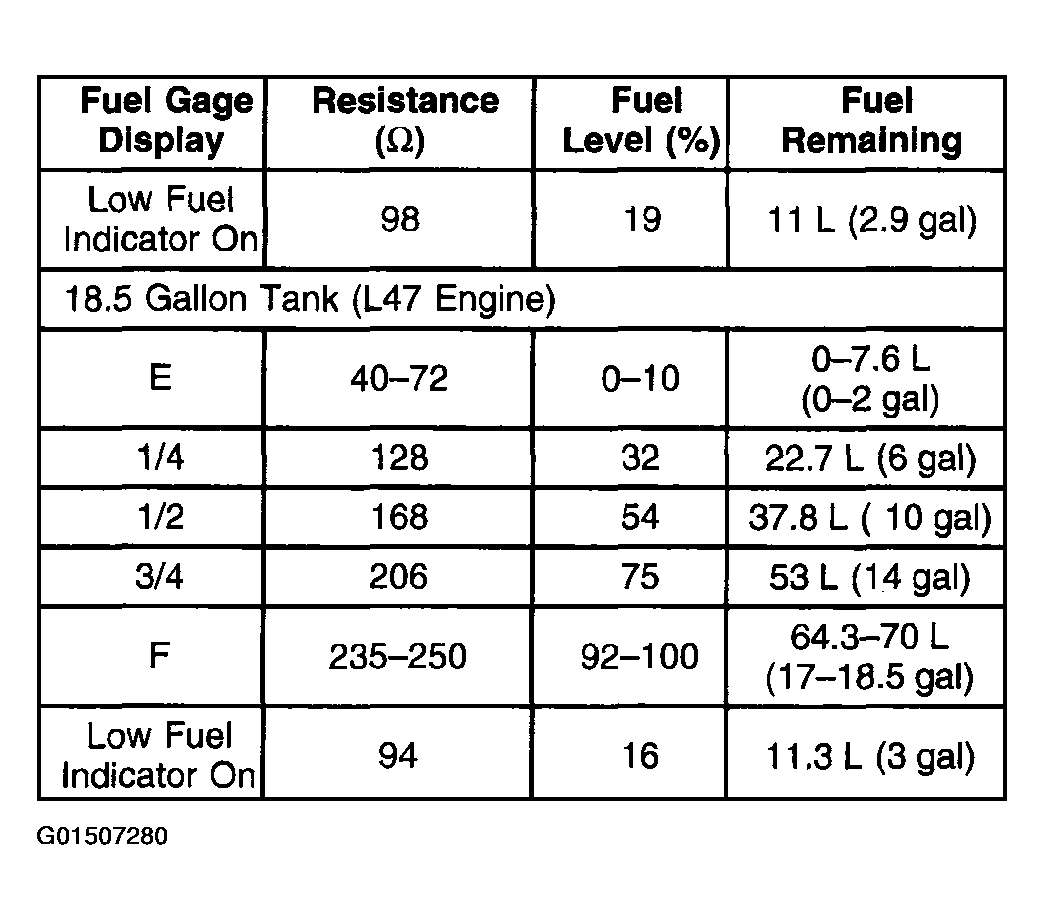

Fig 1: Fuel Level Specification Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

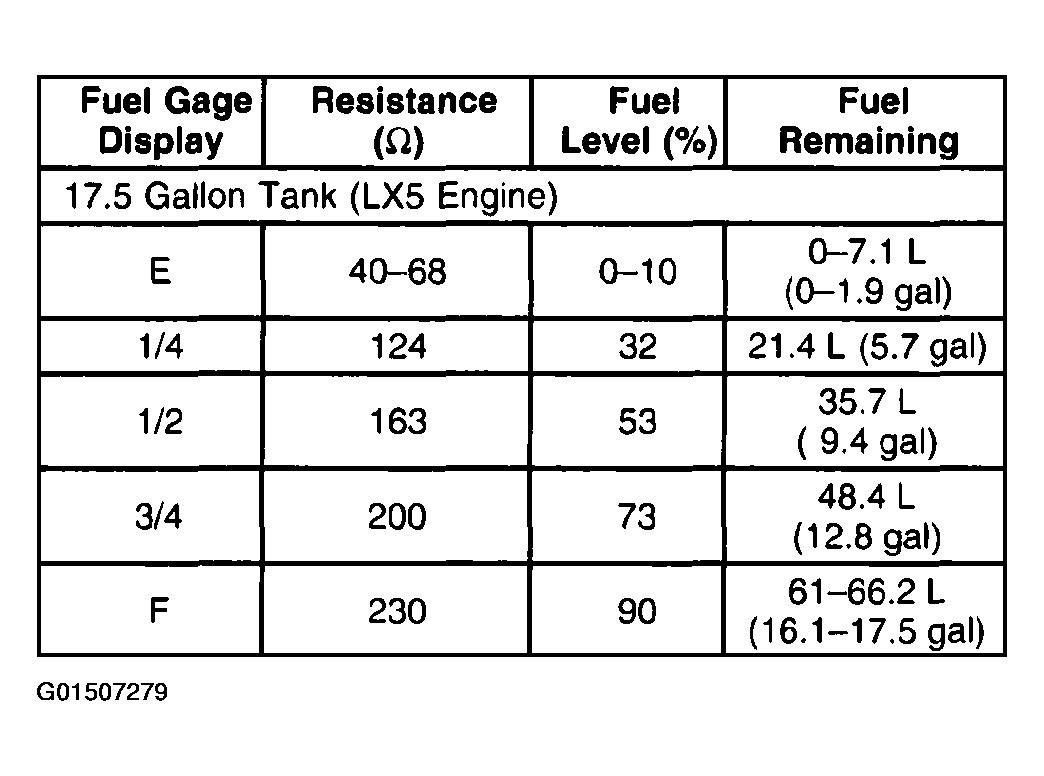

Fig 2: Fuel Level Specification Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
