Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition lock cylinder. Refer to IGNITION SWITCH LOCK CYLINDER REPLACEMENT  .
  2. Remove the fasteners securing the ignition switch to the I/P retainer.
  3. Push and release the retaining tab at the rear of the ignition switch.

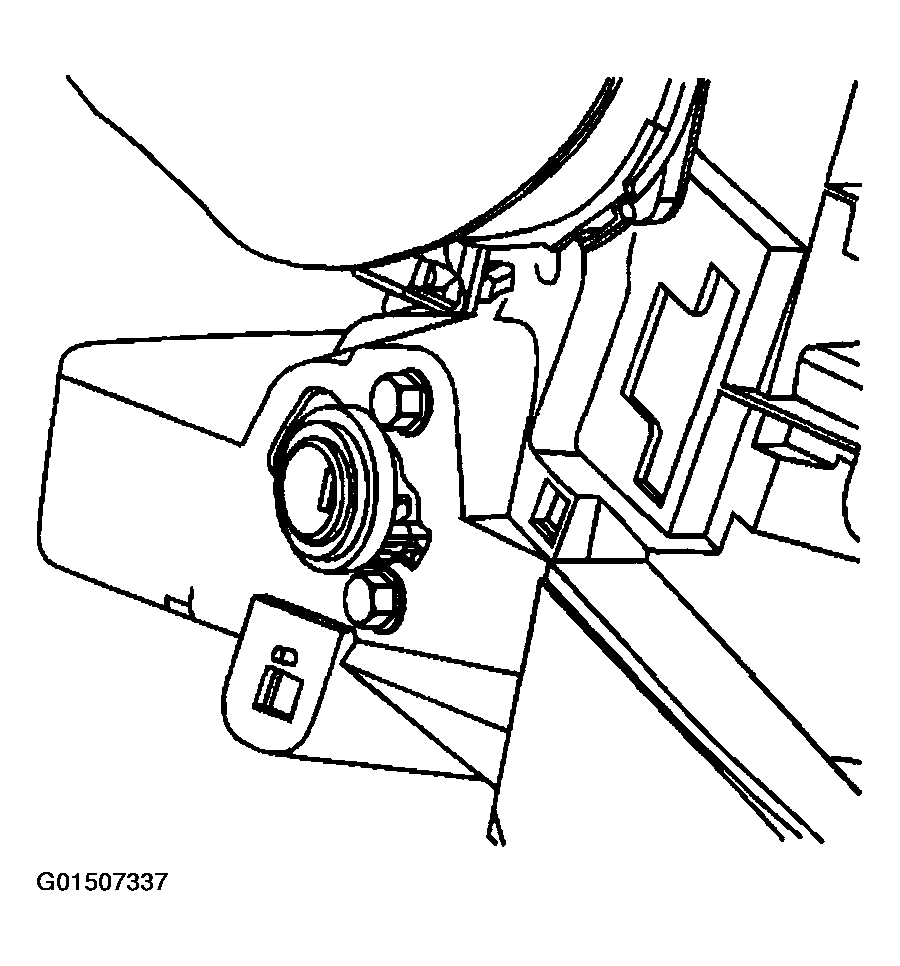

    4. Fig 1: Locating Ignition Switch
    G01507337Courtesy of GENERAL MOTORS CORP.
  4. Remove the ignition switch through the radio opening in the retainer.
  5. Disconnect the shift interlock cable from the ignition switch.
  6. Disconnect the electrical connectors from ignition switch.

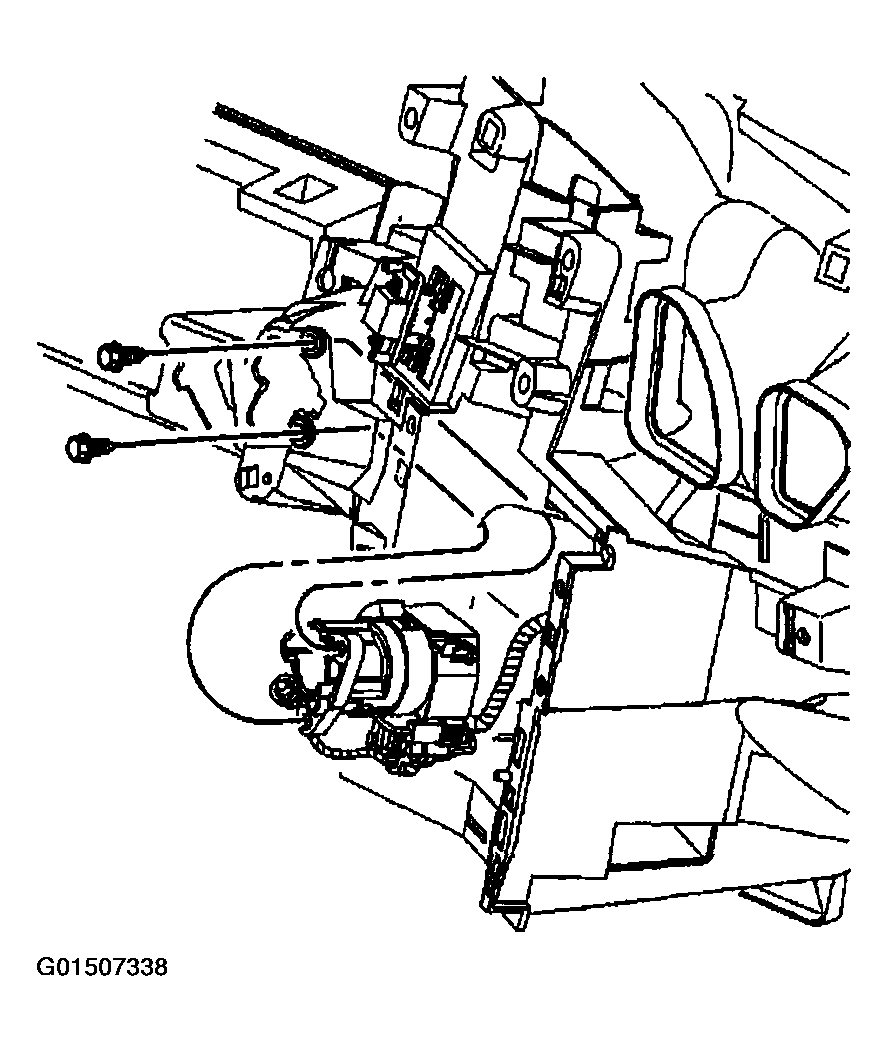

    7. Fig 2: Removing Ignition Switch
    G01507338Courtesy of GENERAL MOTORS CORP.
