Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Remove the Driver Information Center (DIC) by pulling rearward while disengaging the retaining clips.

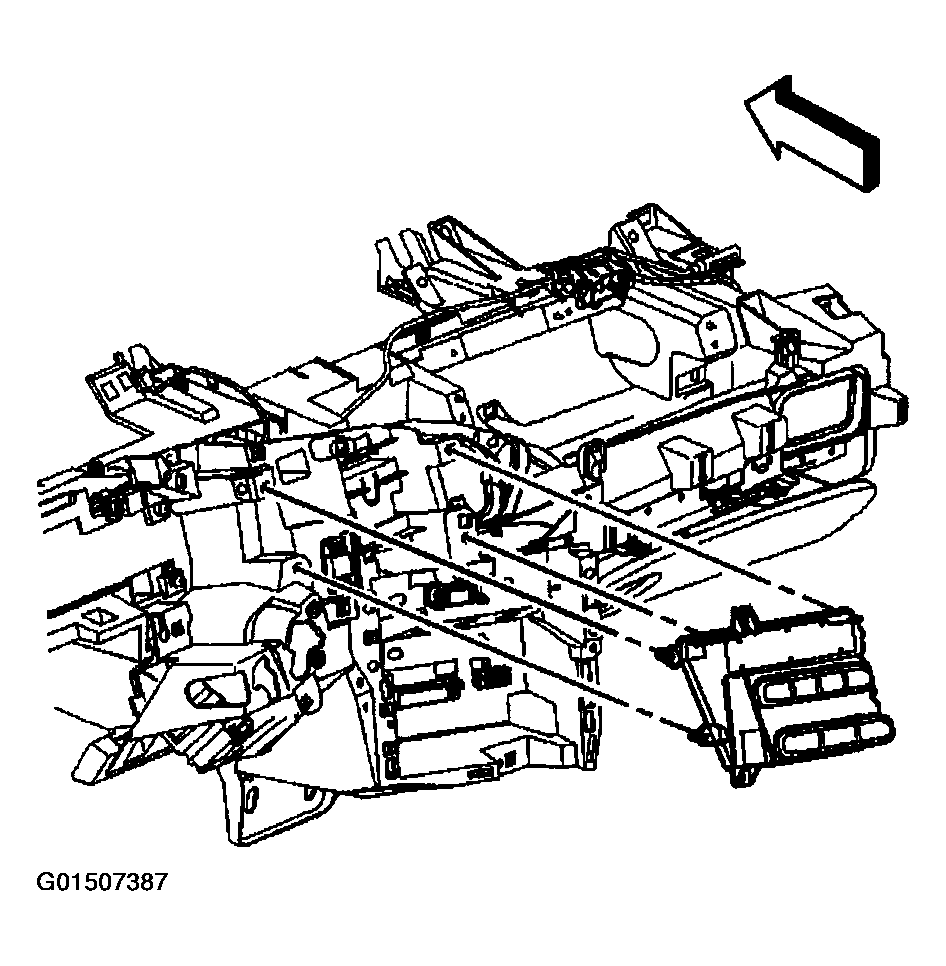

    3. Fig 1: Removing & Installing Driver Information Center Module
    G01507387Courtesy of GENERAL MOTORS CORP.
