Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the panel into the slots and slide forward.
  2. Push on the rear of the panel to engage the clip.

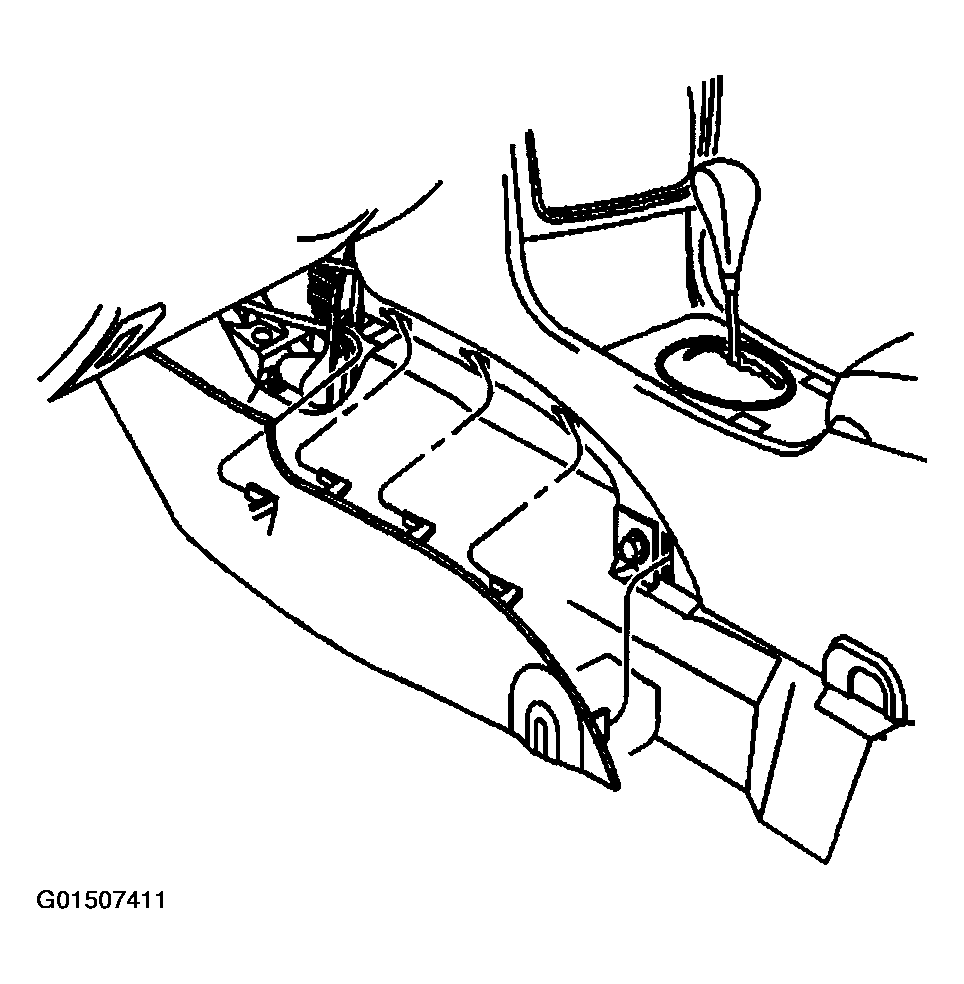

  3. Fig 1: Removing & Installing Console Left Trim Panel
    G01507411Courtesy of GENERAL MOTORS CORP.
