Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP center trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER  .
  2. Remove the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE  .
  3. Remove the fasteners from the compartment assembly to the IP.
  4. Remove the compartment assembly by pulling rearward.
  5. Disconnect the electrical connector from the cigar lighter.

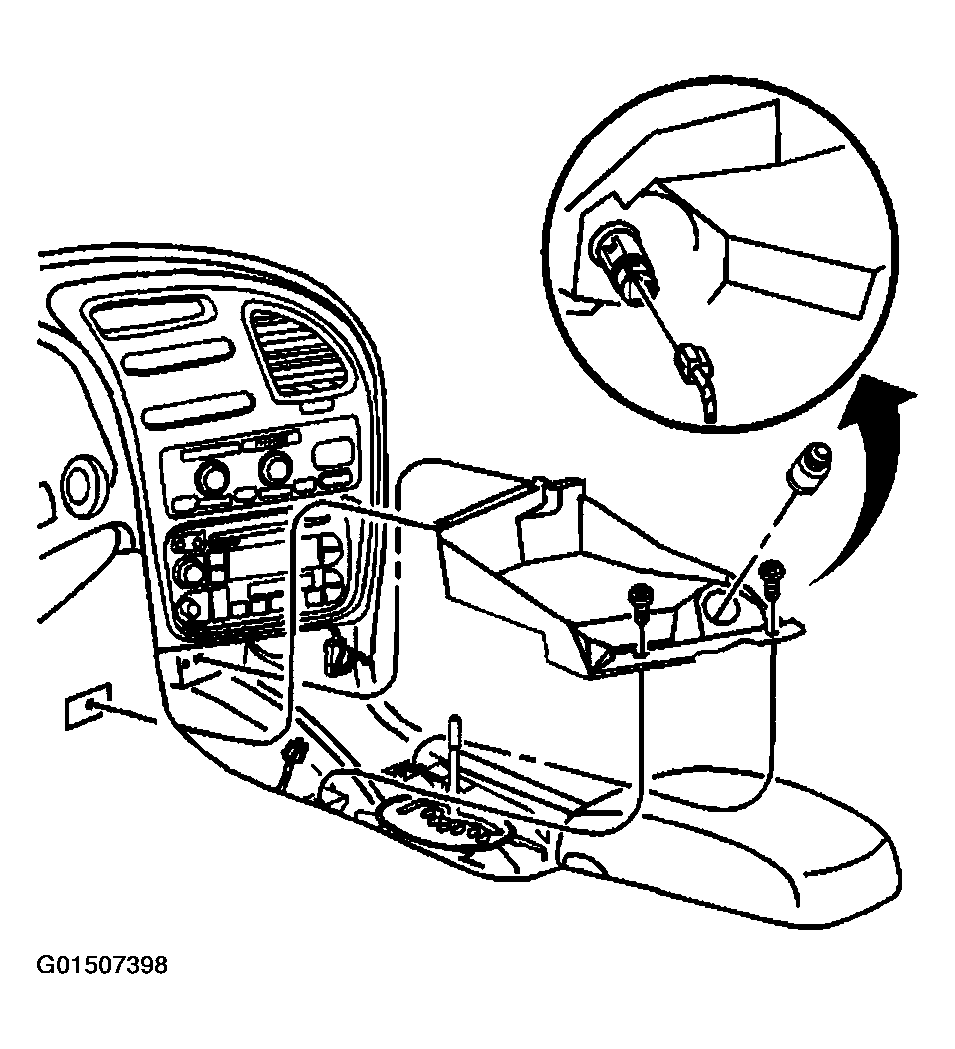

    6. Fig 1: Removing & Installing Console Tray Insert
    G01507398Courtesy of GENERAL MOTORS CORP.
