Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Connect the electrical connector to the cigar lighter.
  2. Install the compartment into the IP by sliding forward into the IP.
  3. Install the compartment to IP fasteners. Tighten:  Tighten the fasteners to 1.4 N.m (12 lb in).
  4. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE  .
  5. Install the IP center trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER  .

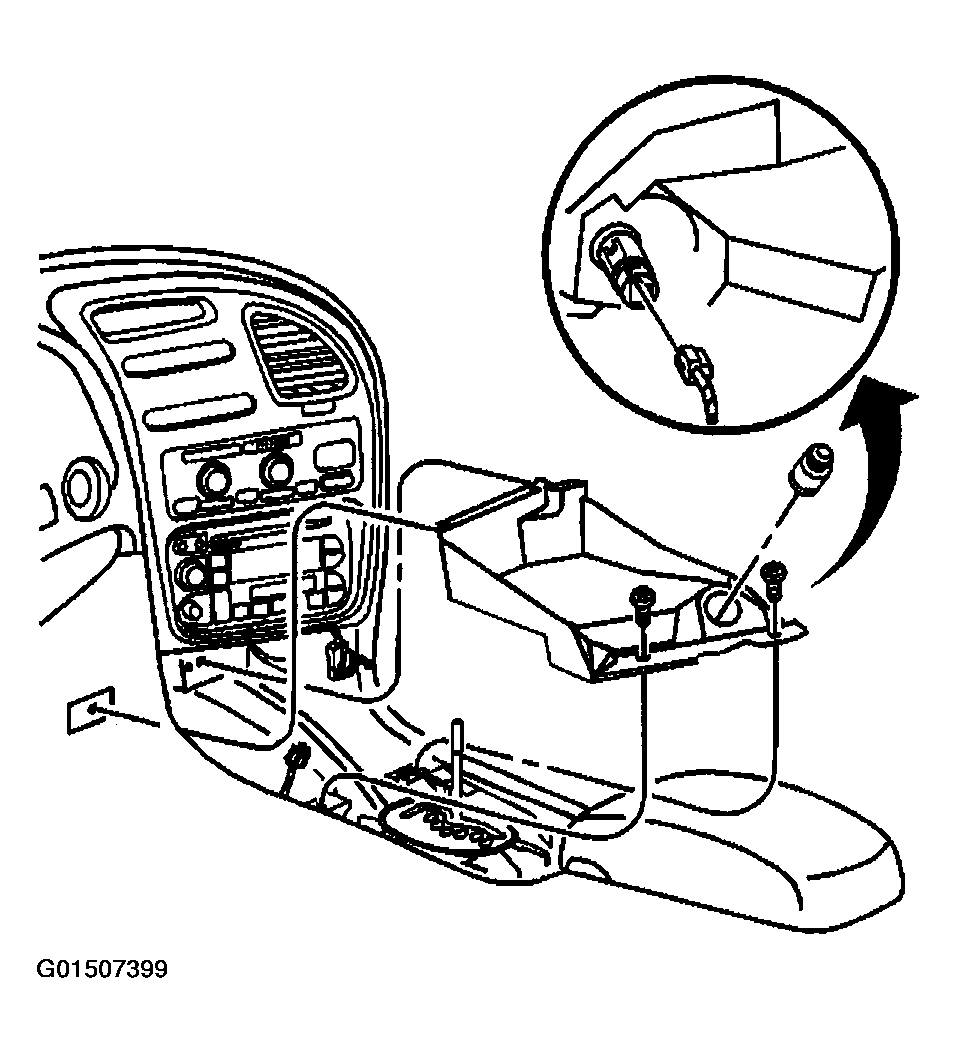

    6. Fig 1: Removing & Installing Console Tray Insert
    G01507399Courtesy of GENERAL MOTORS CORP.
