Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners (1) that fasten the storage bin to the console.
  2. Remove the storage bin from the console.

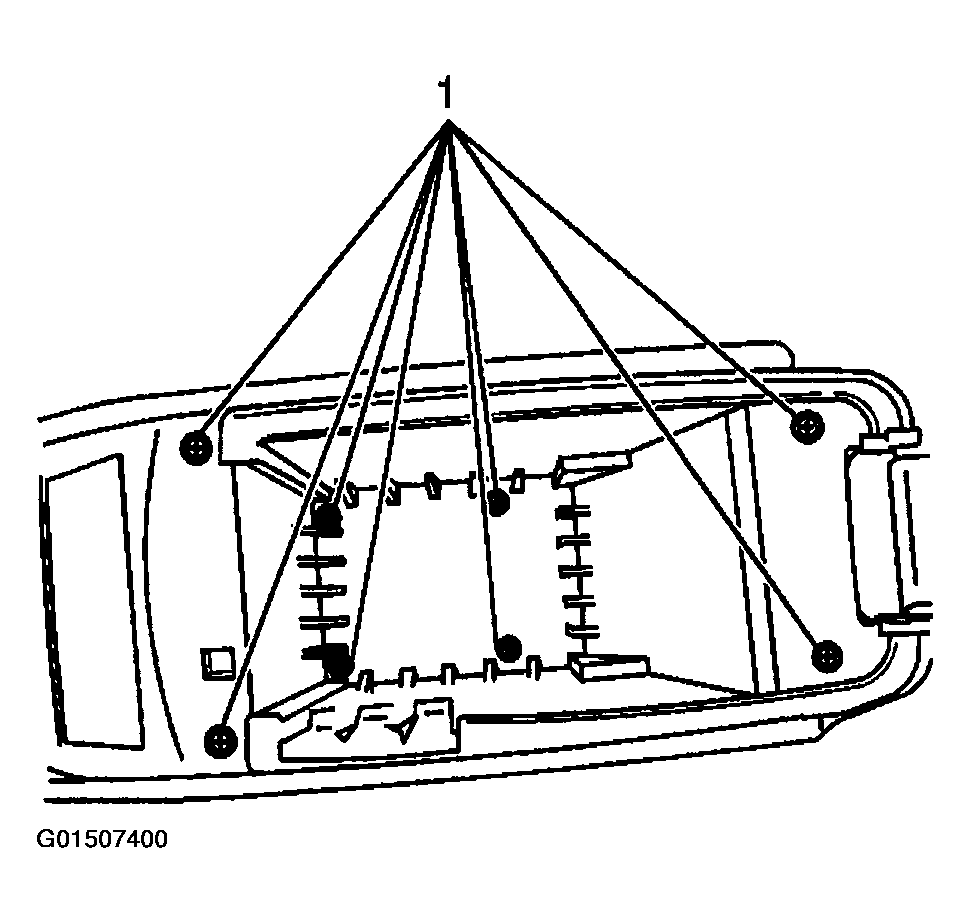

    3. Fig 1: Removing & Installing Console Storage Bin
    G01507400Courtesy of GENERAL MOTORS CORP.
