Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the storage bin into the console.
  2. Install the fasteners (1) to the storage bin. Tighten:  Tighten the fasteners to 1.4 N.m (12 lb in).

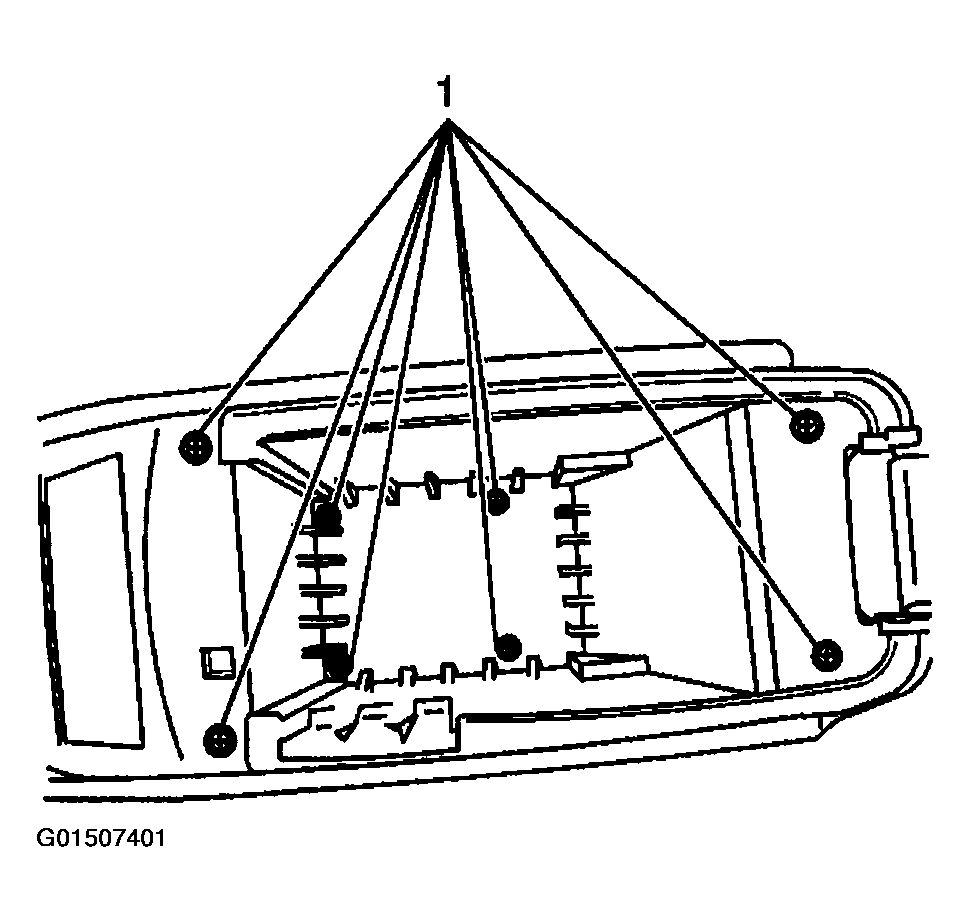

    3. Fig 1: Removing & Installing Console Storage Bin
    G01507401Courtesy of GENERAL MOTORS CORP.
