Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Carefully, so as not to damage the seats, install the console into the vehicle by sliding forward and fitting up to the IP.
  2. Install the fasteners (1) from the console to the floor. Tighten:  Tighten the fasteners (1) to 9 N.m (80 lb in).
  3. Move the seat to the full forward position.
  4. Install the fasteners (2) from the console to the floor. Tighten:  Tighten the fasteners (2) to 9 N.m (80 lb in).

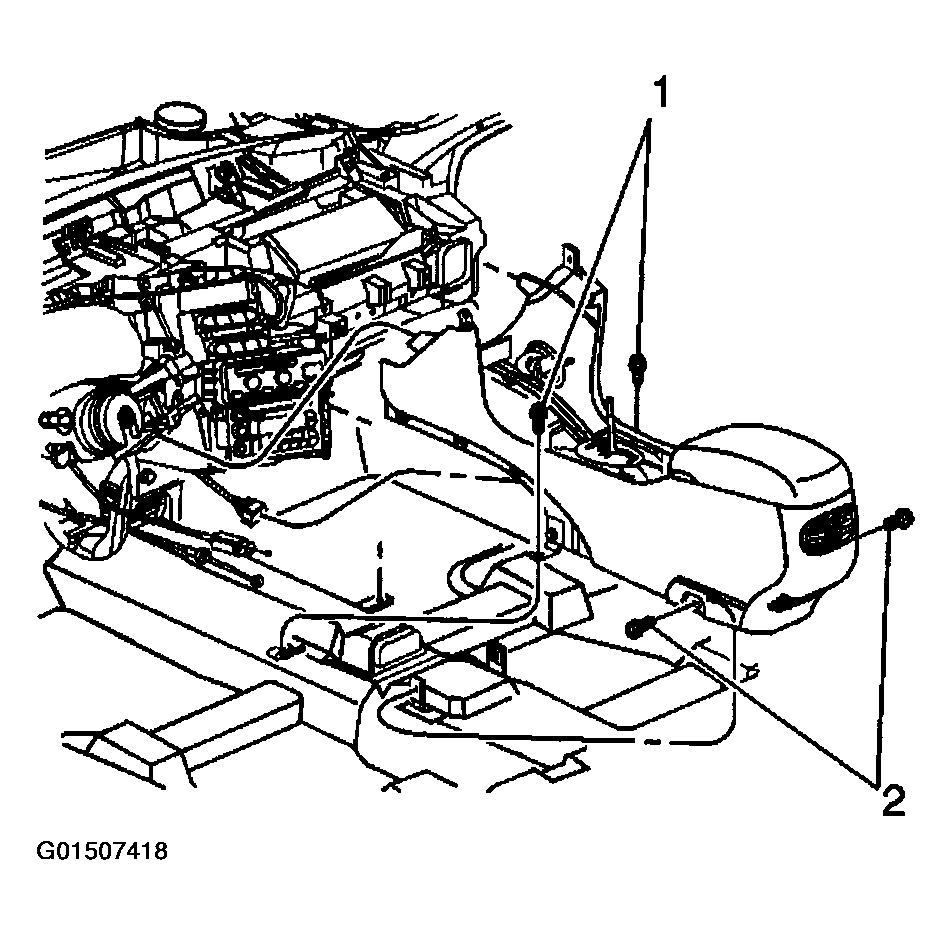

    5. Fig 1: Installing Console-To-Floor Fasteners
    G01507418Courtesy of GENERAL MOTORS CORP.

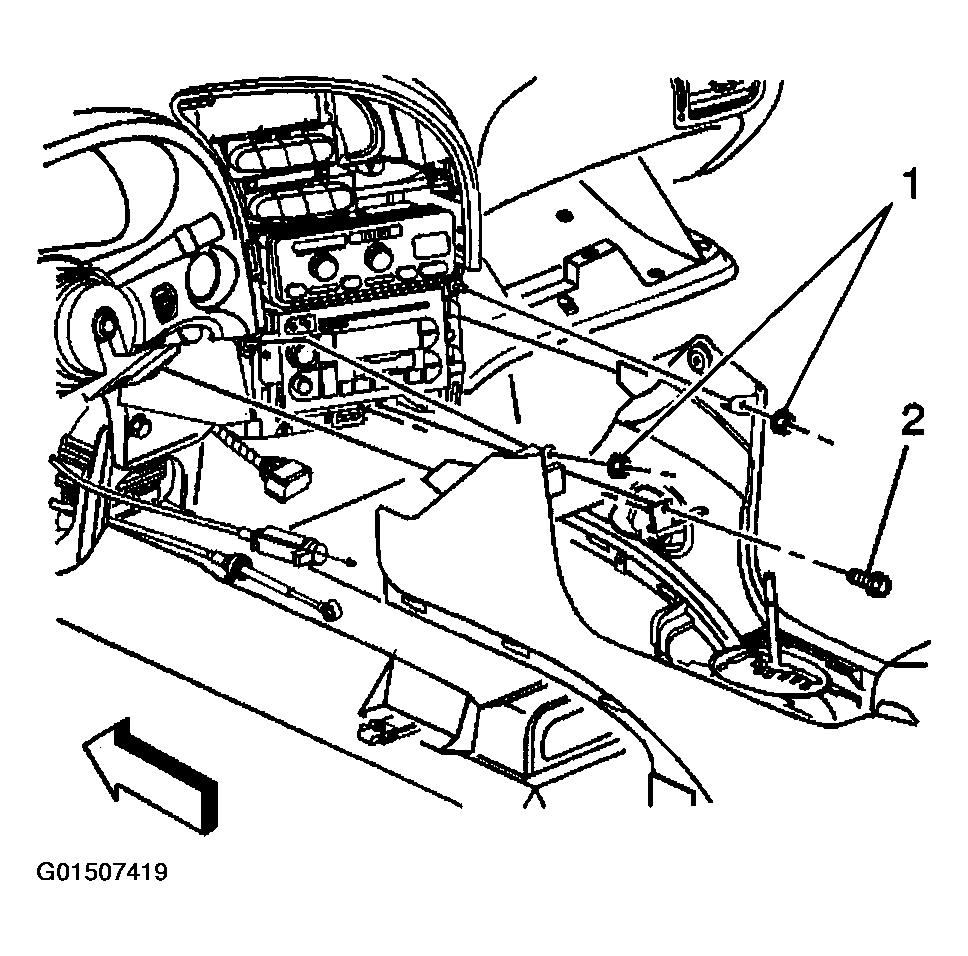

    Fig 2: Installing Console-To-IP Fasteners
    G01507419Courtesy of GENERAL MOTORS CORP.

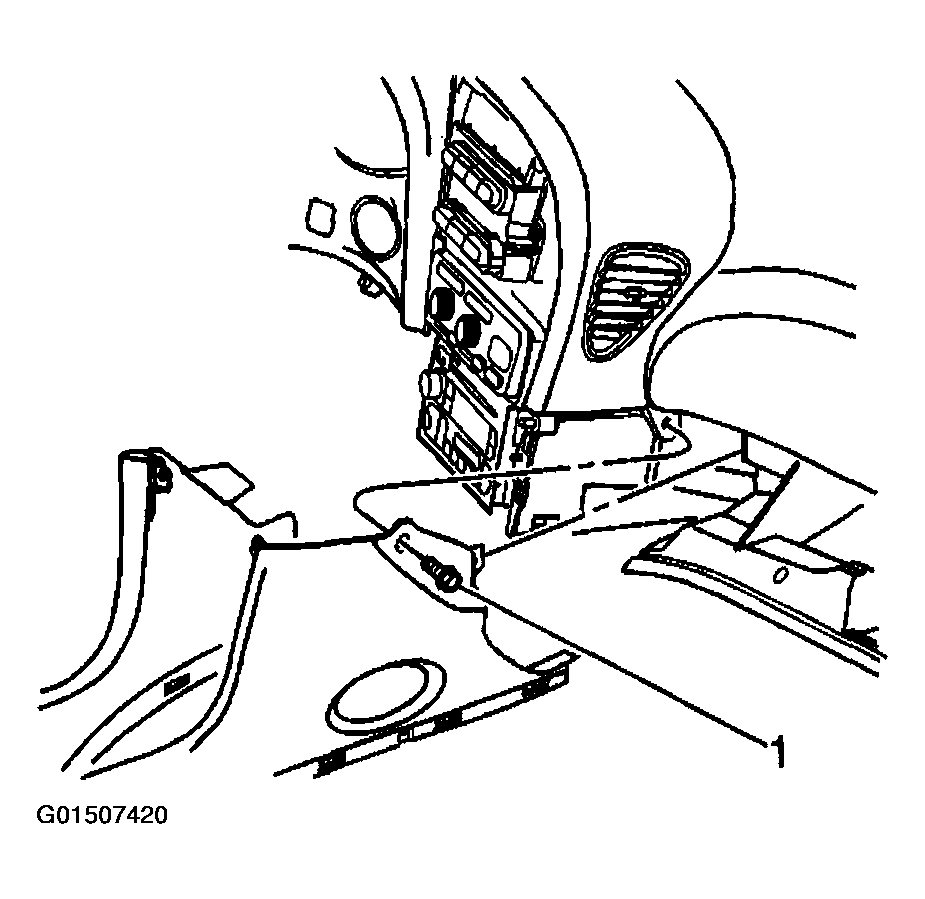

    Fig 3: Installing Console Right Side Fastener
    G01507420Courtesy of GENERAL MOTORS CORP.
  5. Install the fasteners (1, 2) from the console to the IP. Tighten:  Tighten the fasteners (1) to 9 N.m (80 lb in). Tighten the fastener (2) to 2 N.m (18 lb in).
  6. Install the right side fastener (1). Tighten:  Tighten the fastener to 2 N.m (18 lb in).
  7. Connect the main wiring harness connector.
  8. Install the park/shift lock cable.

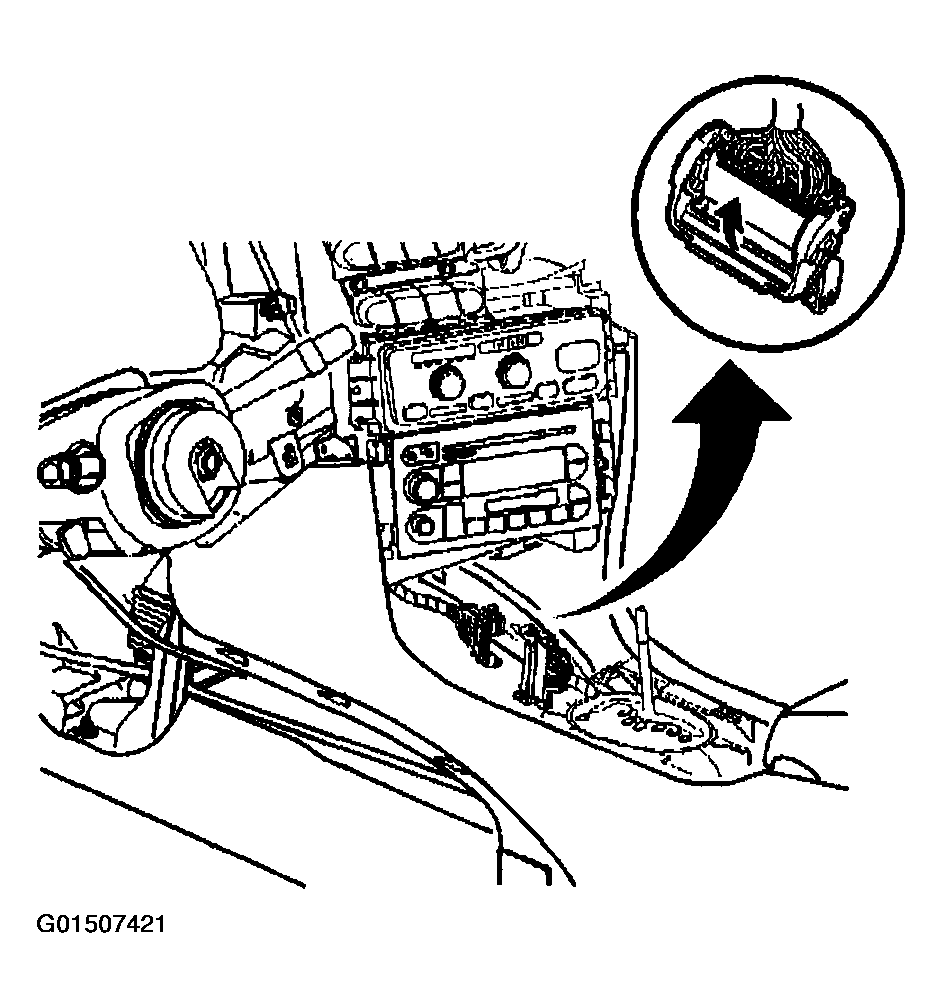

    9. Fig 4: Locating Main Wiring Harness Connector
    G01507421Courtesy of GENERAL MOTORS CORP.

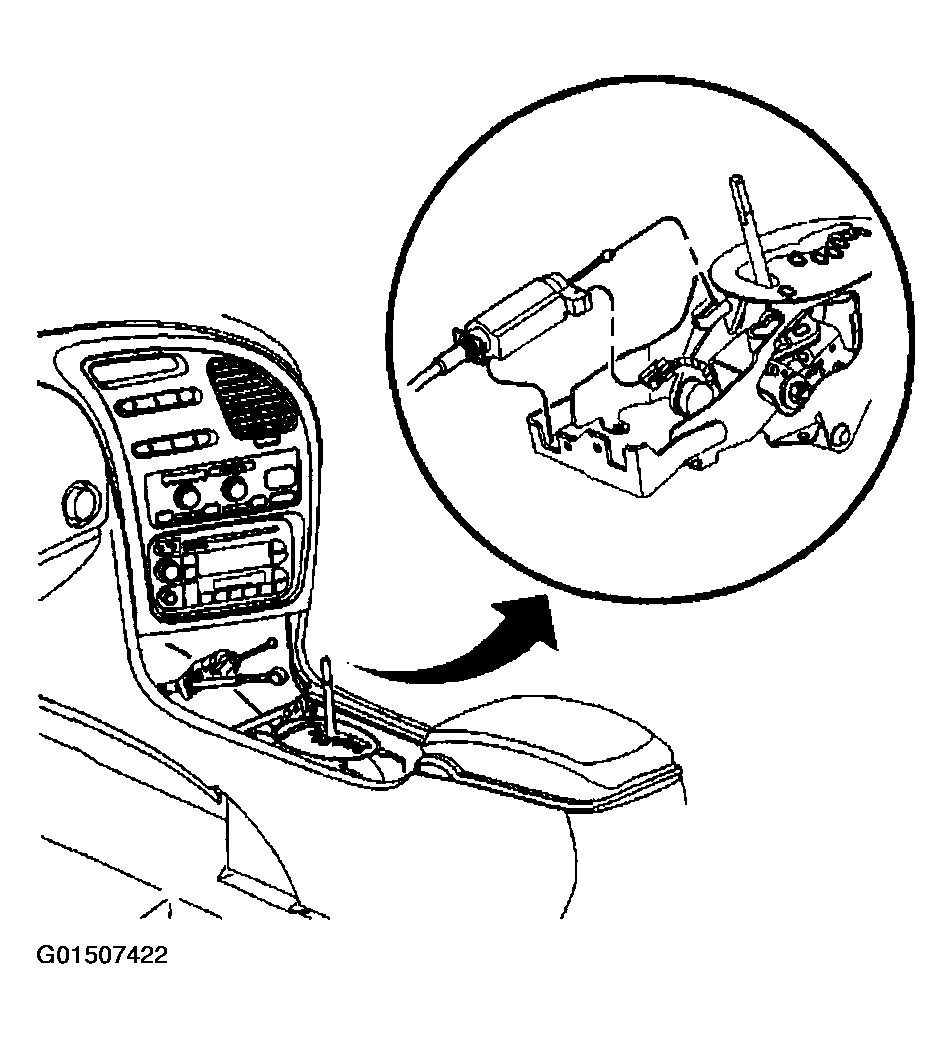

    Fig 5: Installing Park/Shift Lock Cable
    G01507422Courtesy of GENERAL MOTORS CORP.

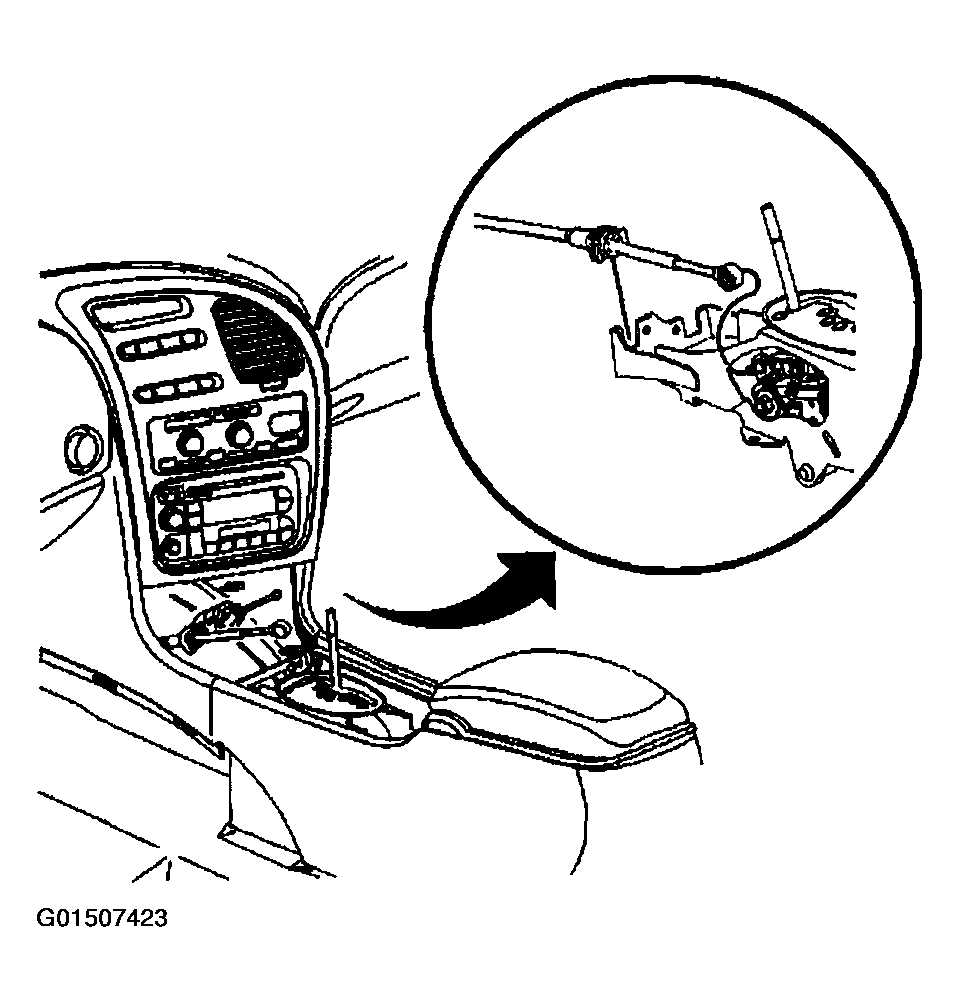

    Fig 6: Installing Shifter Cable
    G01507423Courtesy of GENERAL MOTORS CORP.
  9. Install the shifter cable.
  10. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE  .
  11. Install the right console trim panel. Refer to CONSOLE TRIM PANEL REPLACEMENT - RIGHT  .
  12. Install the left console trim panel. Refer to CONSOLE TRIM PANEL REPLACEMENT - LEFT  .
  13. Install the tray assembly. Refer to CONSOLE TRAY INSERT REPLACEMENT  .
  14. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE  .
  15. Install the center IP trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CENTER  .
