Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Position the steering column bracket to the/IP carrier.
  2. Install the steering column bracket fasteners. Tighten:  Tighten the fasteners to 9 N.m (80 lb in).
  3. Install the knee bolster. Refer to BRACKET REPLACEMENT - KNEE BOLSTER  .

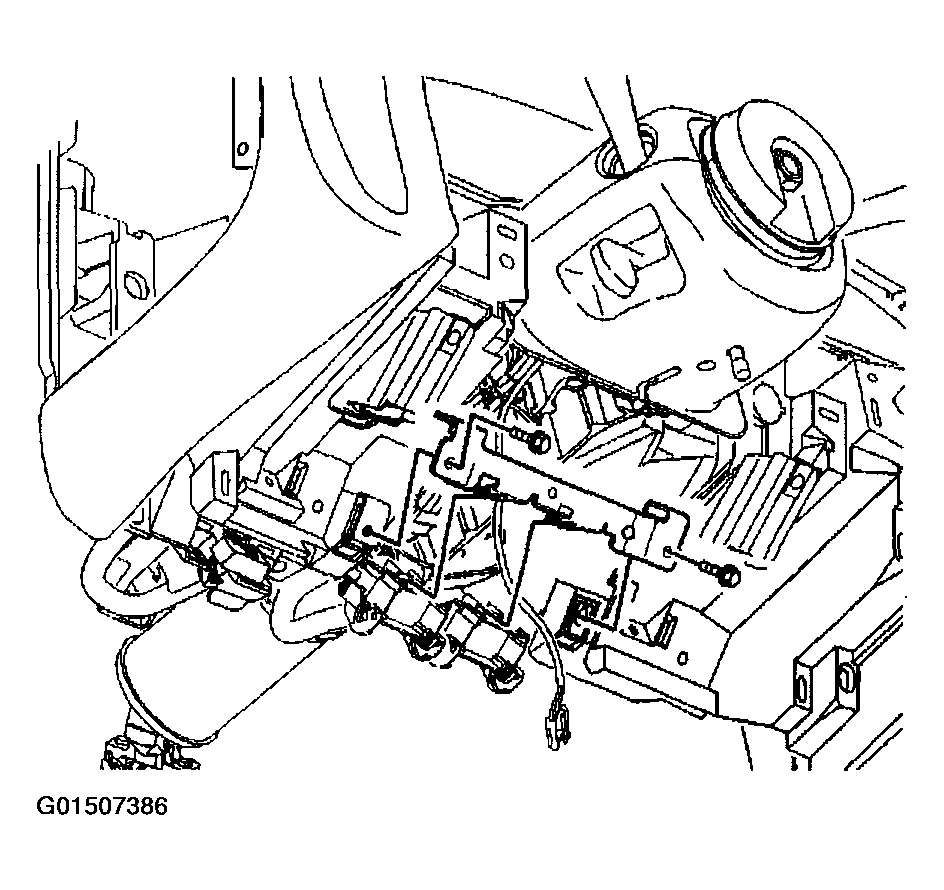

    4. Fig 1: Removing & Installing Steering Column Bracket
    G01507386Courtesy of GENERAL MOTORS CORP.
