Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender sound insulator (1) to the vehicle.
  2. Install the push in retainers (2) to the front fender sound insulator (1).
  3. Install the front wheelhouse liner. Refer to WHEELHOUSE LINER REPLACEMENT - FRONT  .
  4. Install the front fascia extension. Refer to TRACTION CONTROL SWITCH REPLACEMENT (W/NW9) in Anti-Lock Brake .

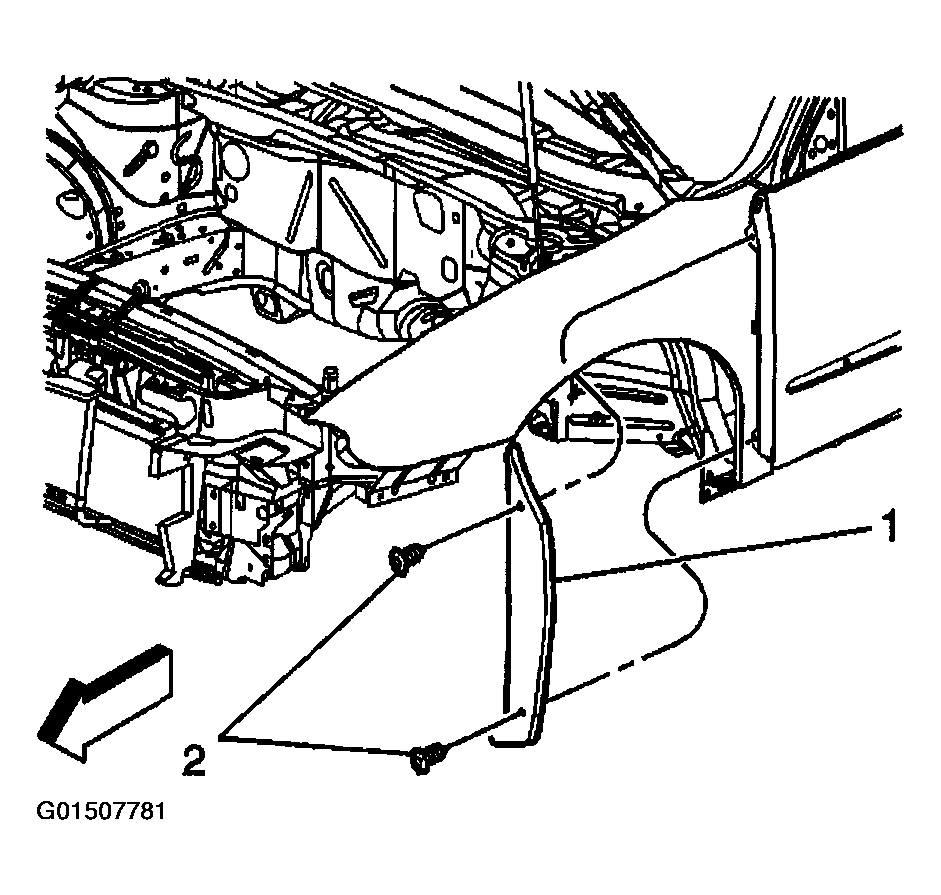

    Fig 1: Installing Fender Sound Insulator - Front
    G01507781Courtesy of GENERAL MOTORS CORP.
