Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front air deflector (5).
  2. Install the front air deflector retainers (1, 2, 3, 4).
  3. Lower the vehicle.

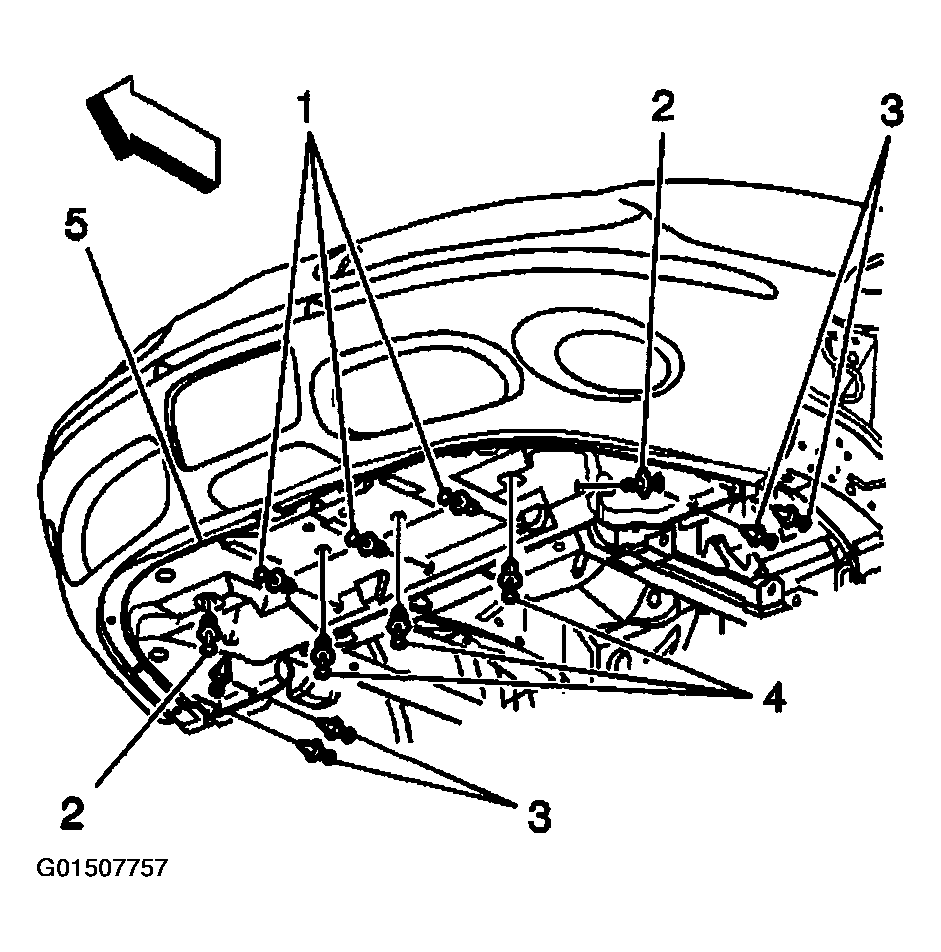

    Fig 1: Installing Air Deflector - Front
    G01507757Courtesy of GENERAL MOTORS CORP.
