Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Connect the negative battery cable to the battery.

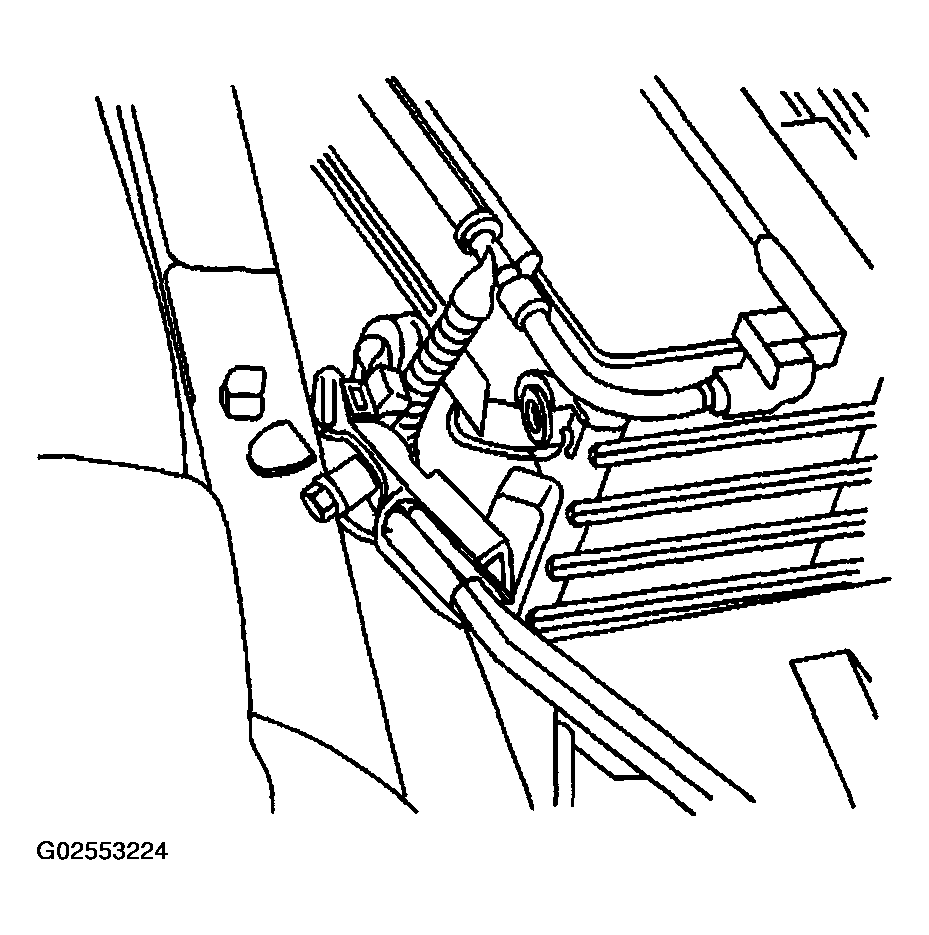

    Fig 1: Connecting Negative Battery Cable To Battery
    G02553224Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

  2. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
