Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Position the radiator behind the condenser.

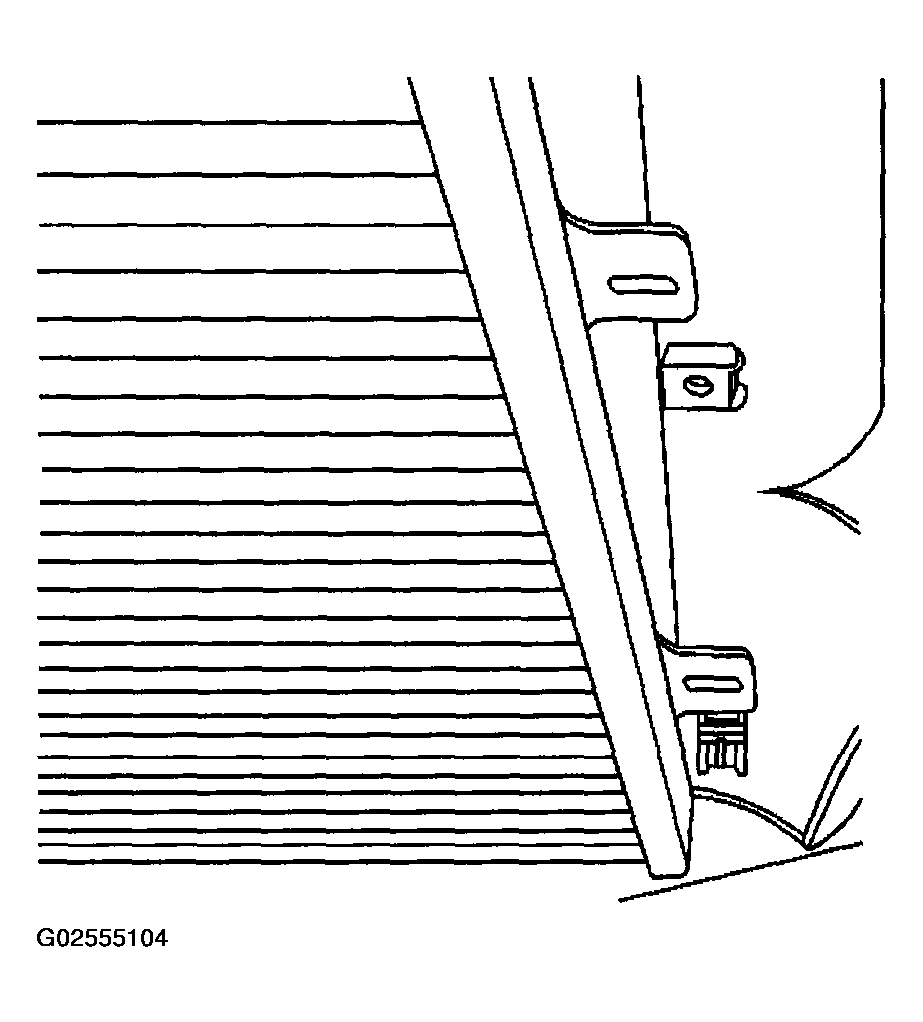

Fig 1: Installing Radiator
Courtesy of GENERAL MOTORS CORP.

Important: Care should be taken when installing the condenser not to damage the lower attachment points of both the radiator and condenser.
Position the condenser, aligning the lower feet to the lower mounting features located at the front of the radiator.
NOTE: Refer to FASTENER NOTICE .

NOTE: The bolt retaining the condenser to the radiator end tank is a special length and should be the ONLY bolt used upon reinstallation. The use of a longer bolt will damage the radiator end tank.
Install the condenser mounting bolts.

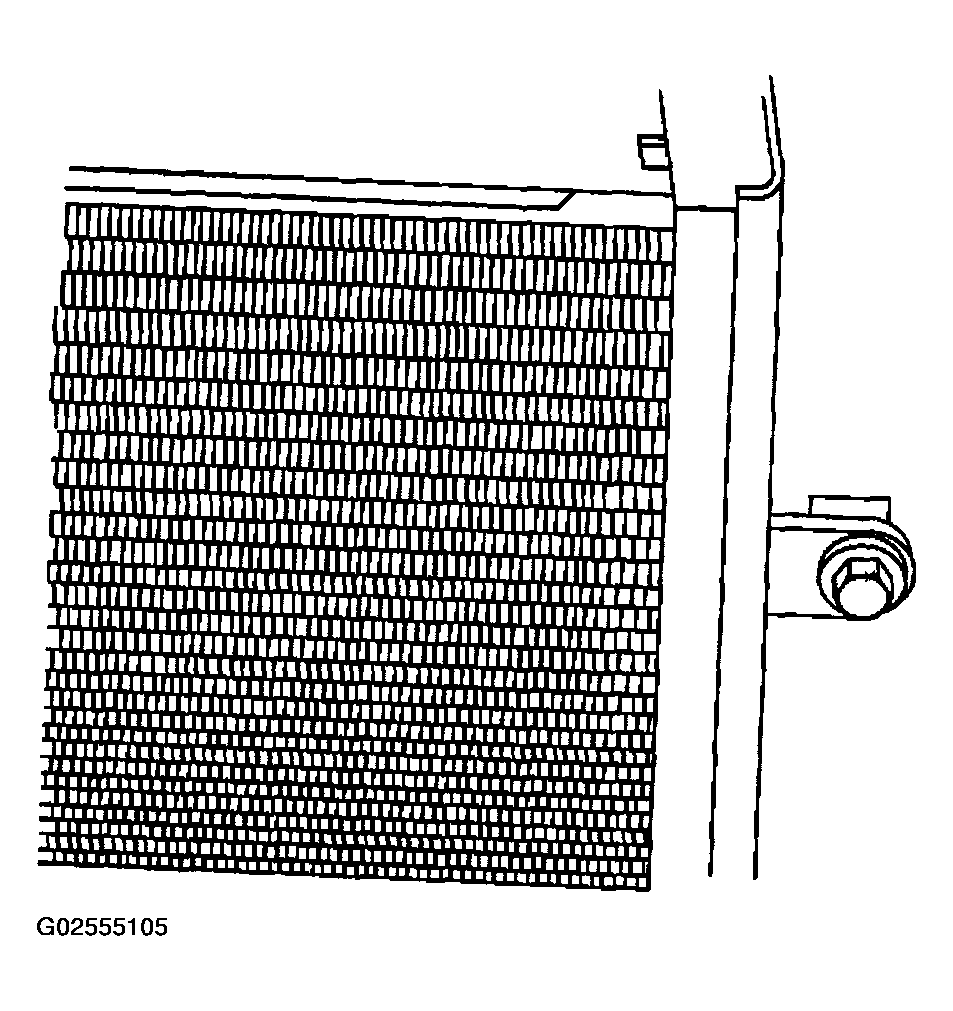

Fig 2: Installing Condenser Mounting Bolts
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the bolts to 13 N.m (115 lb in).
Install the headlamps. Refer to HEADLAMP REPLACEMENT in Lighting Systems.
Install the upper radiator seal.

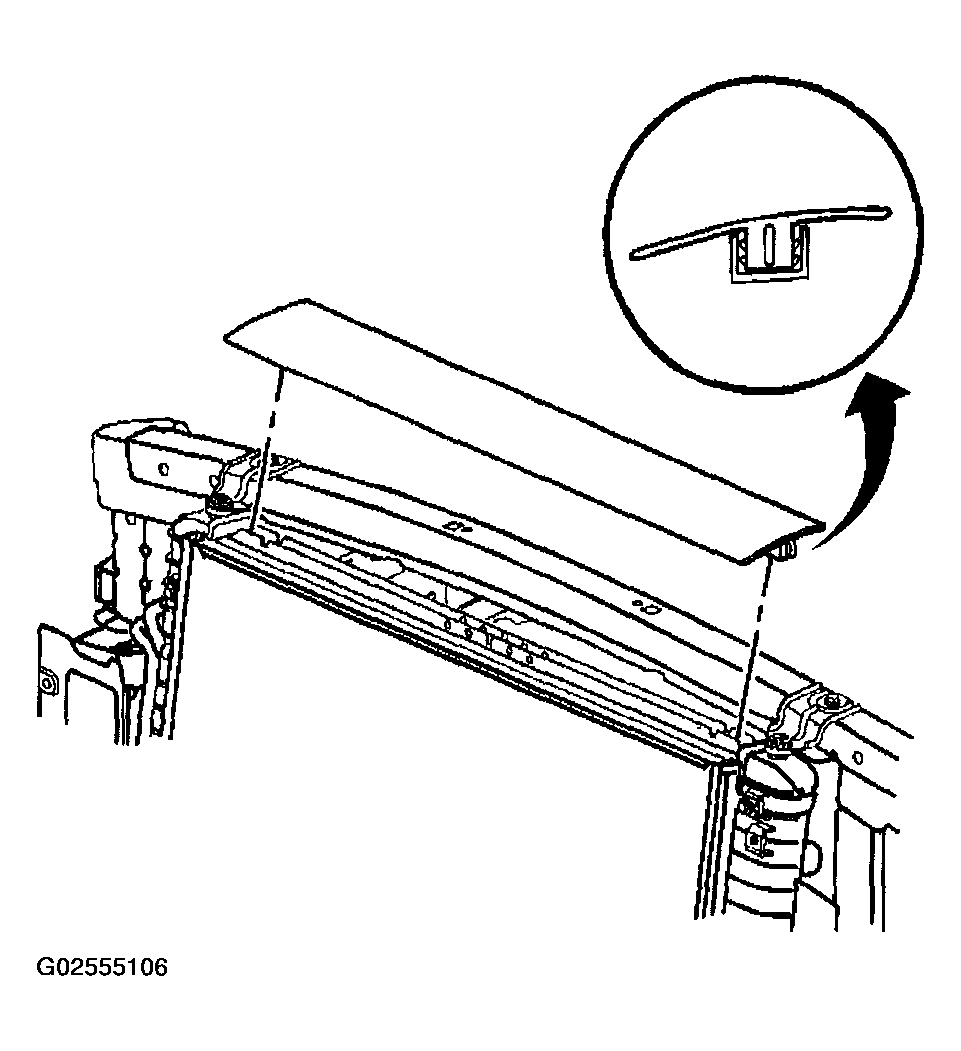

Fig 3: Installing Upper Radiator Seal
Courtesy of GENERAL MOTORS CORP.

Important: Ensure the lower transaxle oil cooler line is positioned upwards while tightening.
Connect the lower transaxle oil cooler line into the radiator.
Tighten

Tighten the line to 31 N.m (23 lb ft).

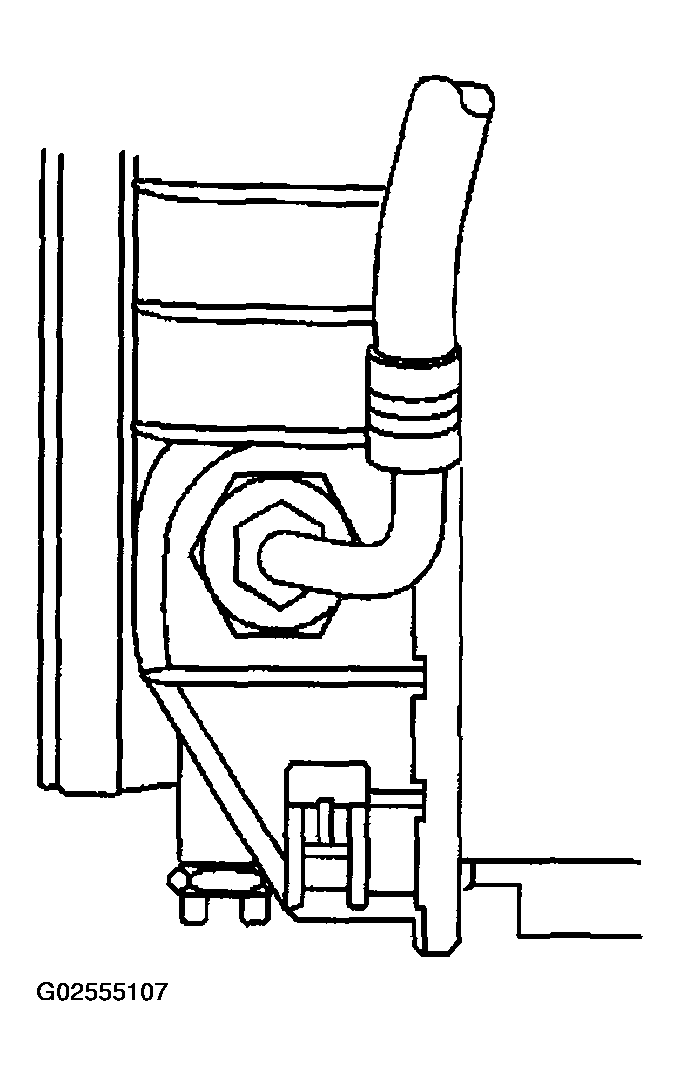

Fig 4: Connecting Lower Transaxle Oil Cooler Line Into Radiator
Courtesy of GENERAL MOTORS CORP.
Connect the outlet radiator hose to the radiator.

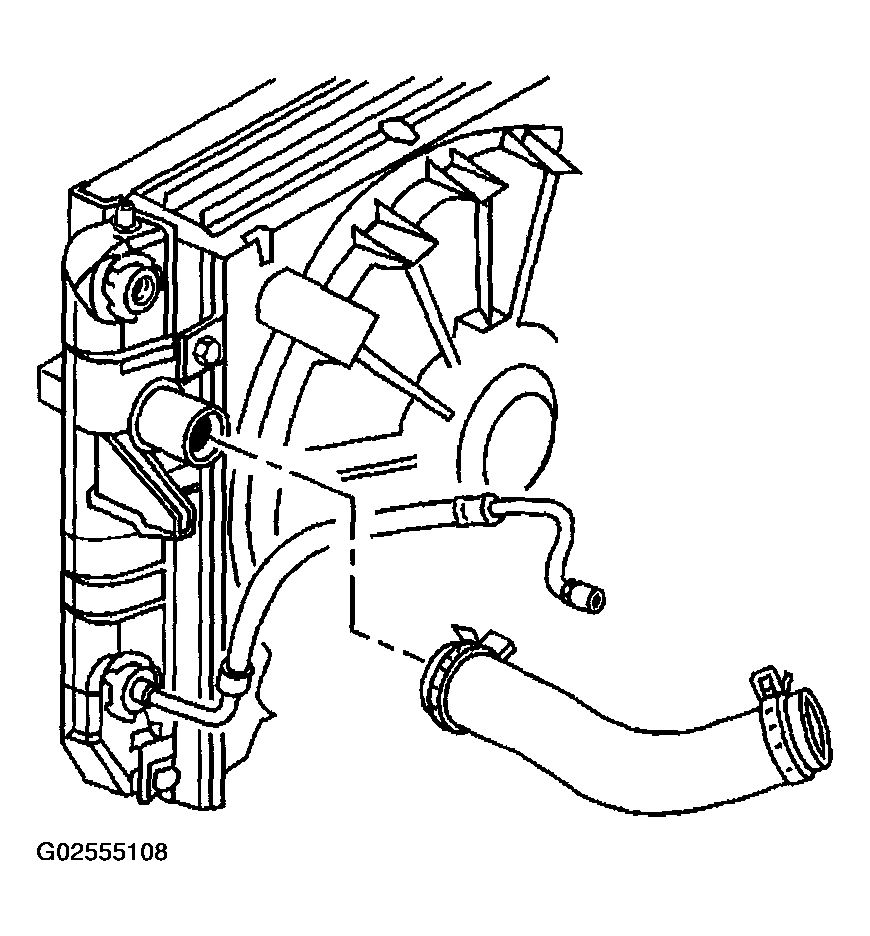

Fig 5: Connecting Outlet Radiator Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
Using the J 37097-A to reposition the clamp.
Install the cooling fans. Refer to COOLING FAN REPLACEMENT - ELECTRIC (LX5) or COOLING FAN REPLACEMENT - ELECTRIC (L47) .
