WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

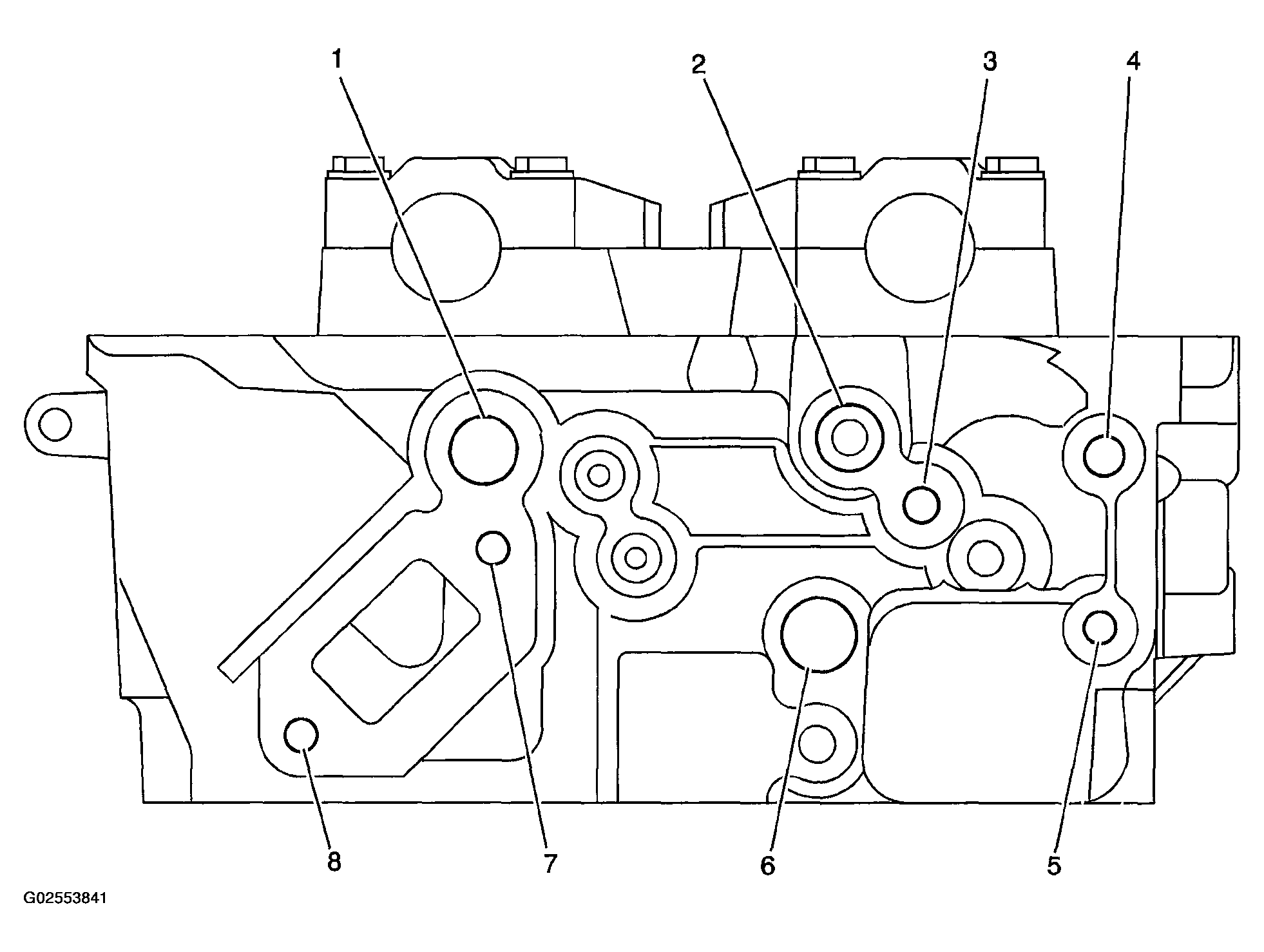

Fig 1: Identifying Right Cylinder Head Rear Face Bolt Holes
Courtesy of GENERAL MOTORS CORP.

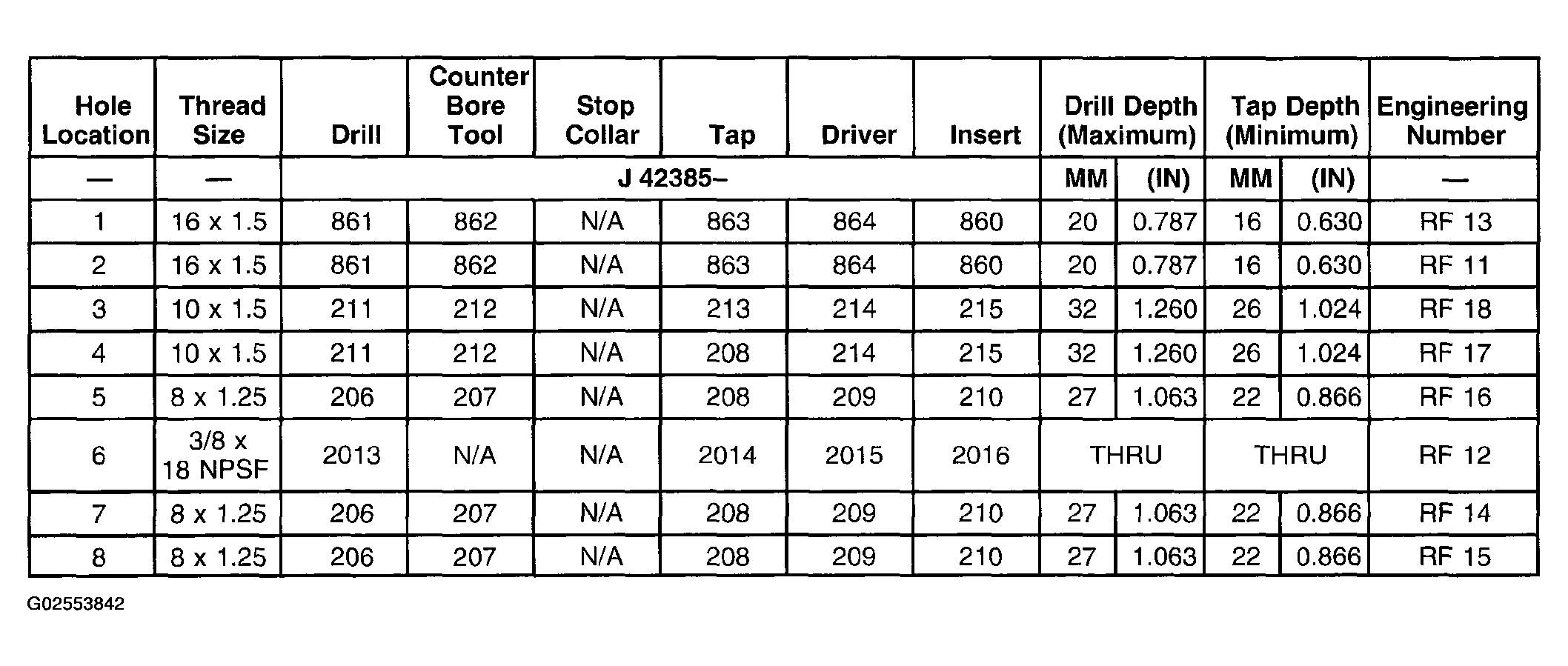

Fig 2: Right Cylinder Head Rear Face Bolt Holes Specifications
