Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT  .
  2. Disconnect the electrical connector (2) from the engine oil level sensor (1).
  3. Remove the engine oil level sensor (1) from the oil pan.

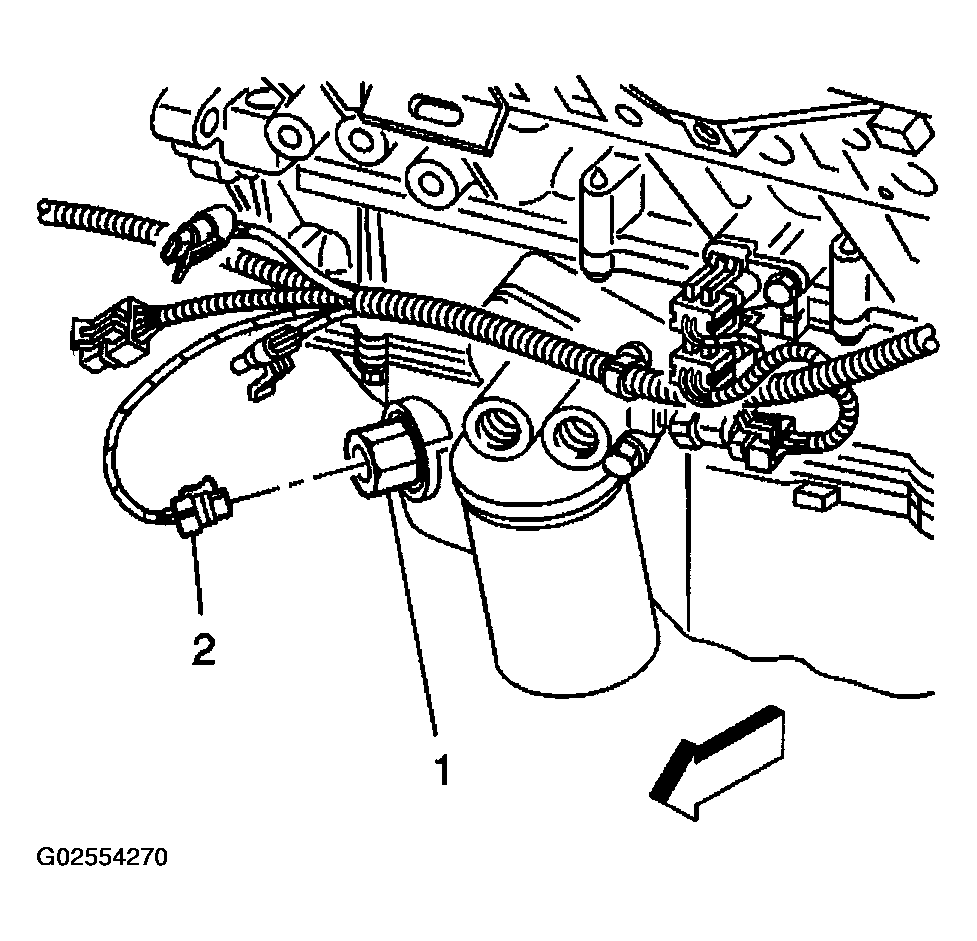

    Fig 1: Removing Engine Oil Level Sensor
    G02554270Courtesy of GENERAL MOTORS CORP.
