Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Place a small amount of sealant GM P/N 12345739 (Canadian P/N 10953541) or equivalent at the split line of the upper and lower crankcases (1).

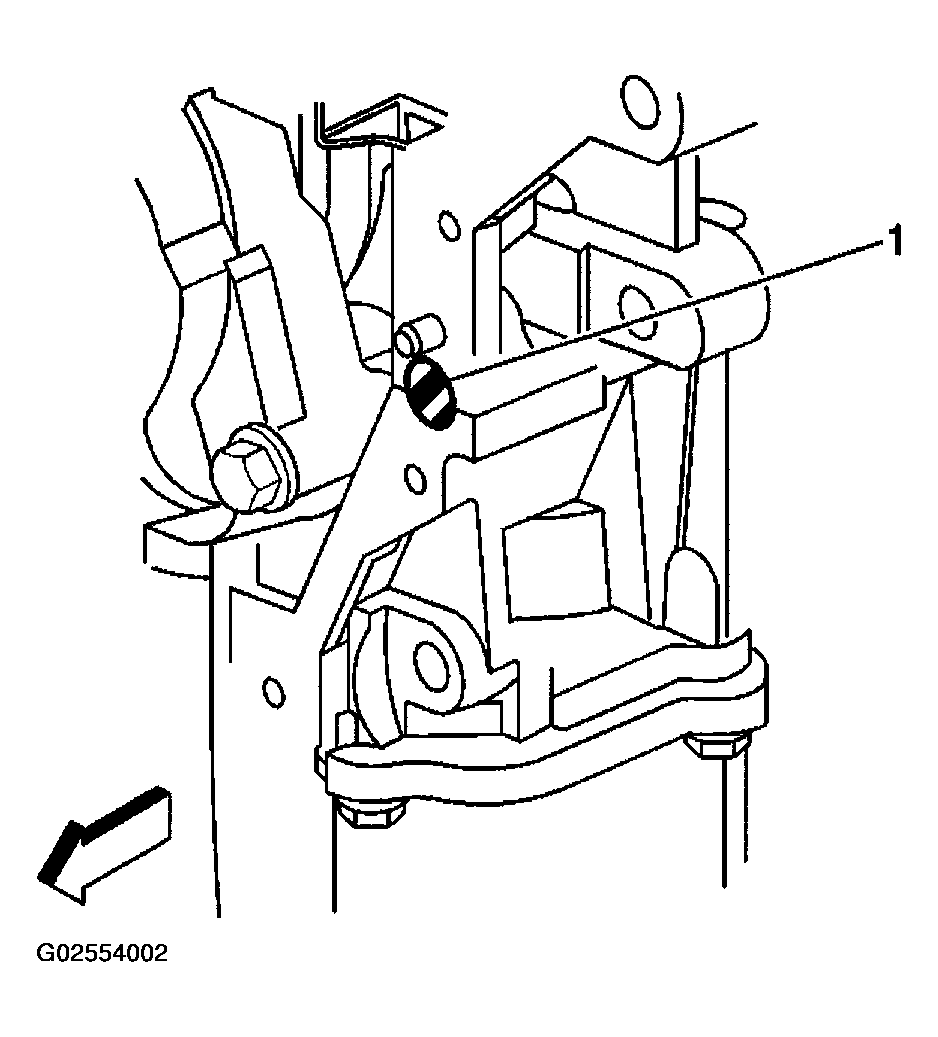

Fig 1: Placing Sealant At Split Line Of Upper And Lower Crankcases
Courtesy of GENERAL MOTORS CORP.
Place the engine front cover gasket over the crankcase dowel pins.
Place the engine front cover in position on the crankcase.
Install the engine front cover retaining bolts.

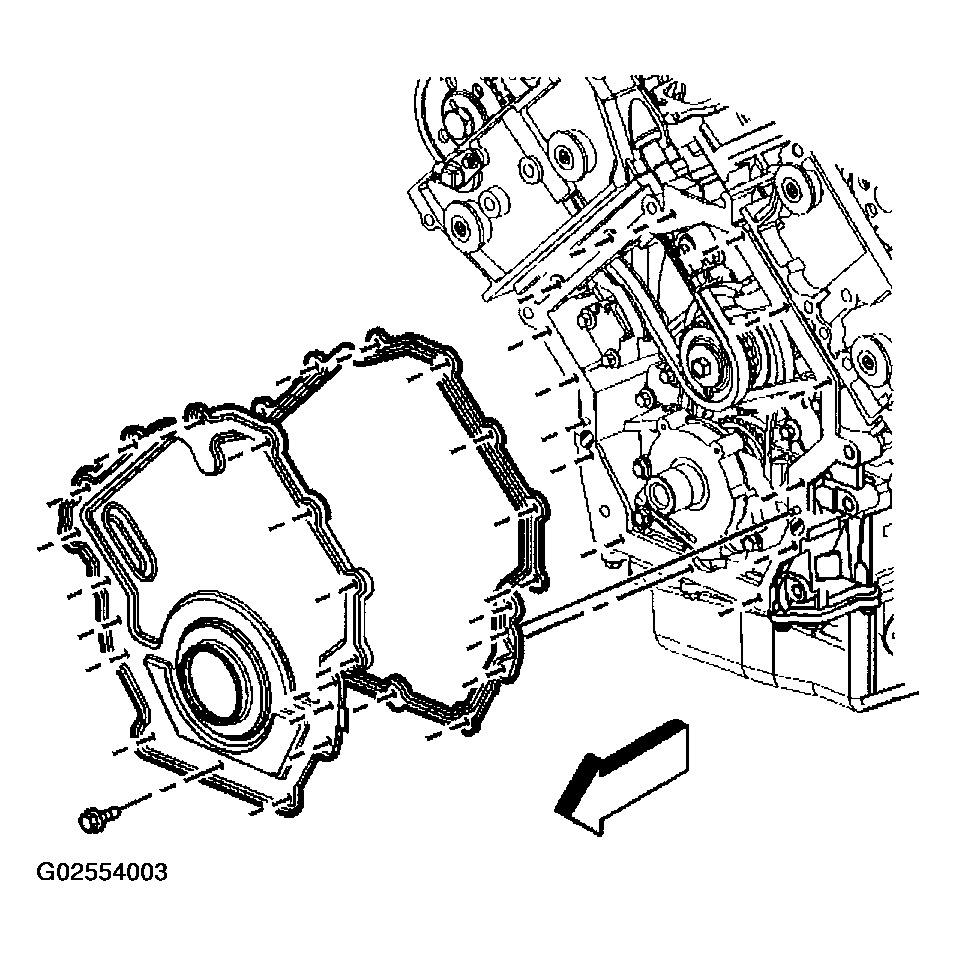

Fig 2: Installing Engine Front Cover And Gasket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Tighten the engine front cover bolts in the sequence shown.

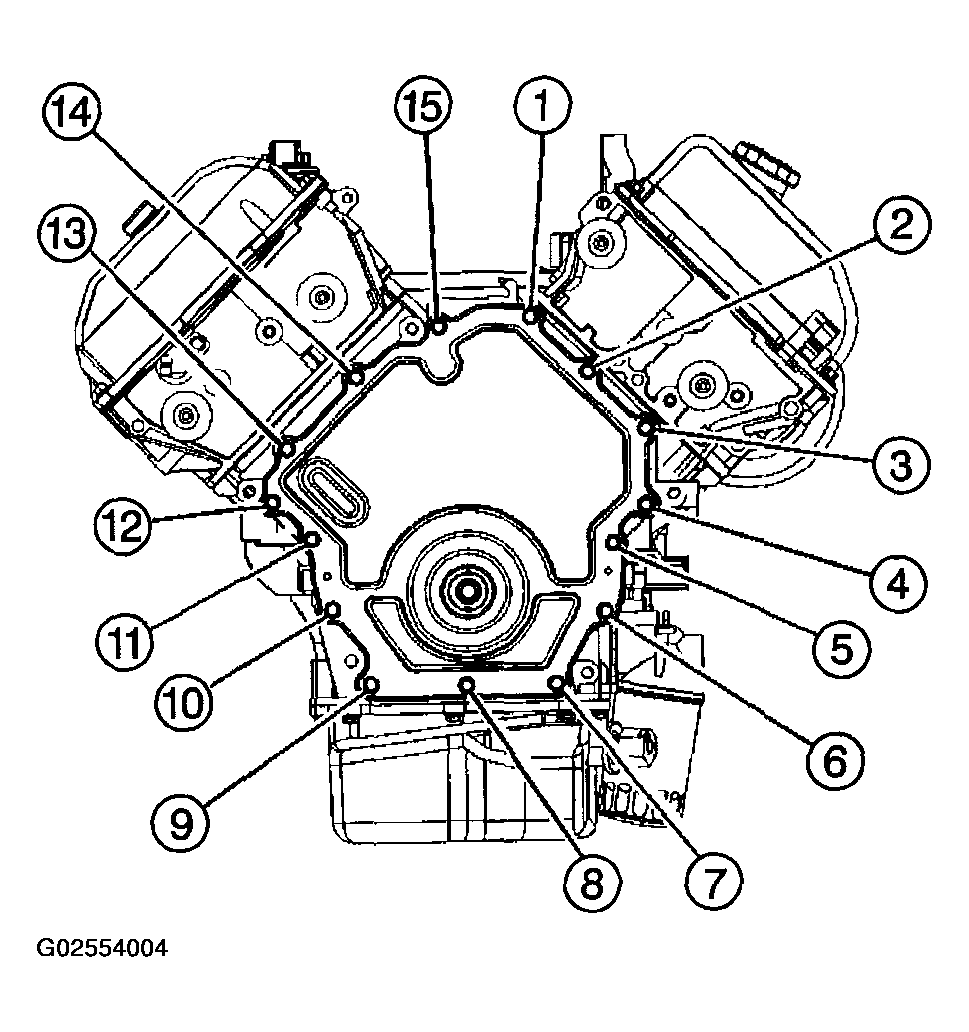

Fig 3: Tightening Sequence Of Engine Front Cover Bolts
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the engine front cover bolts in proper sequence to 10 N.m (89 lb in).
Install the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT .
Install the bolts (3) securing the engine mount bracket (1) to the engine.

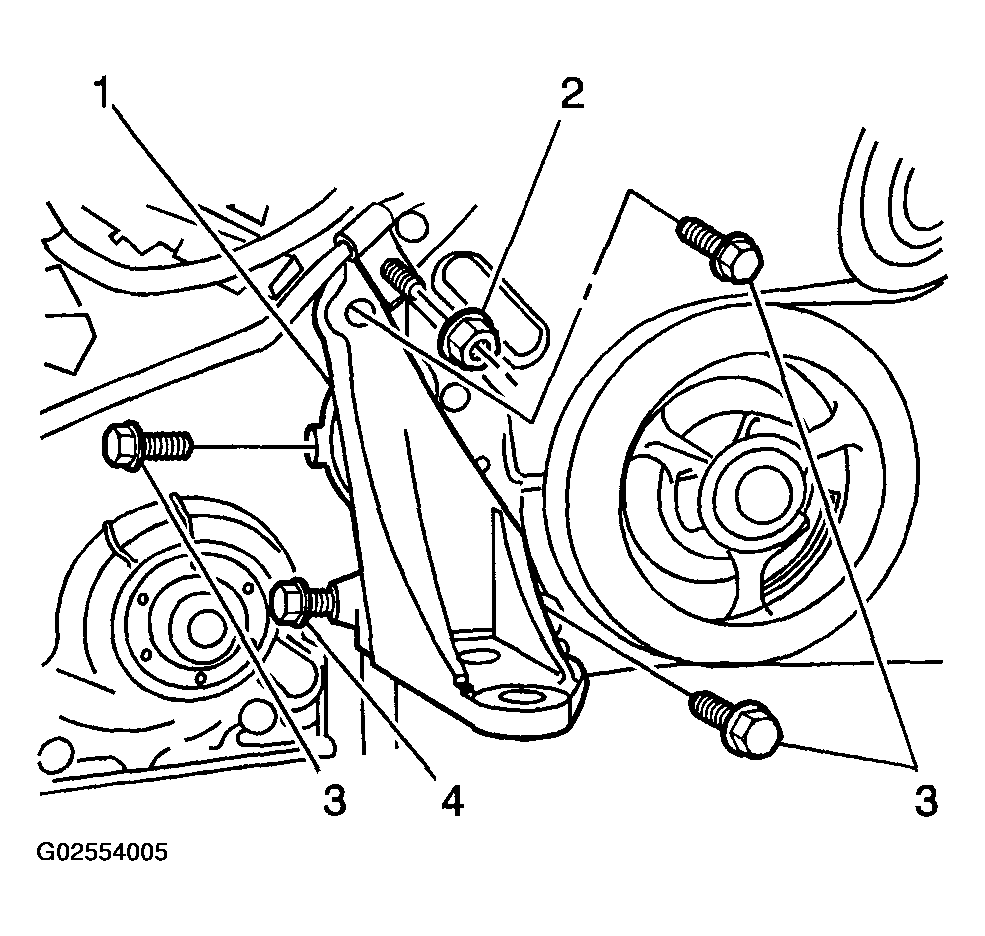

Fig 4: Installing Nuts Of Engine Mount Bracket
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the engine mount bracket bolts (3, 4) to 50 N.m (37 lb ft).
Install the nut (2) securing the power steering hose to the engine mount bracket (1).
Tighten

Tighten the nut to 9 N.m (80 lb in).
Install the nut securing the engine mount to the engine mount bracket.

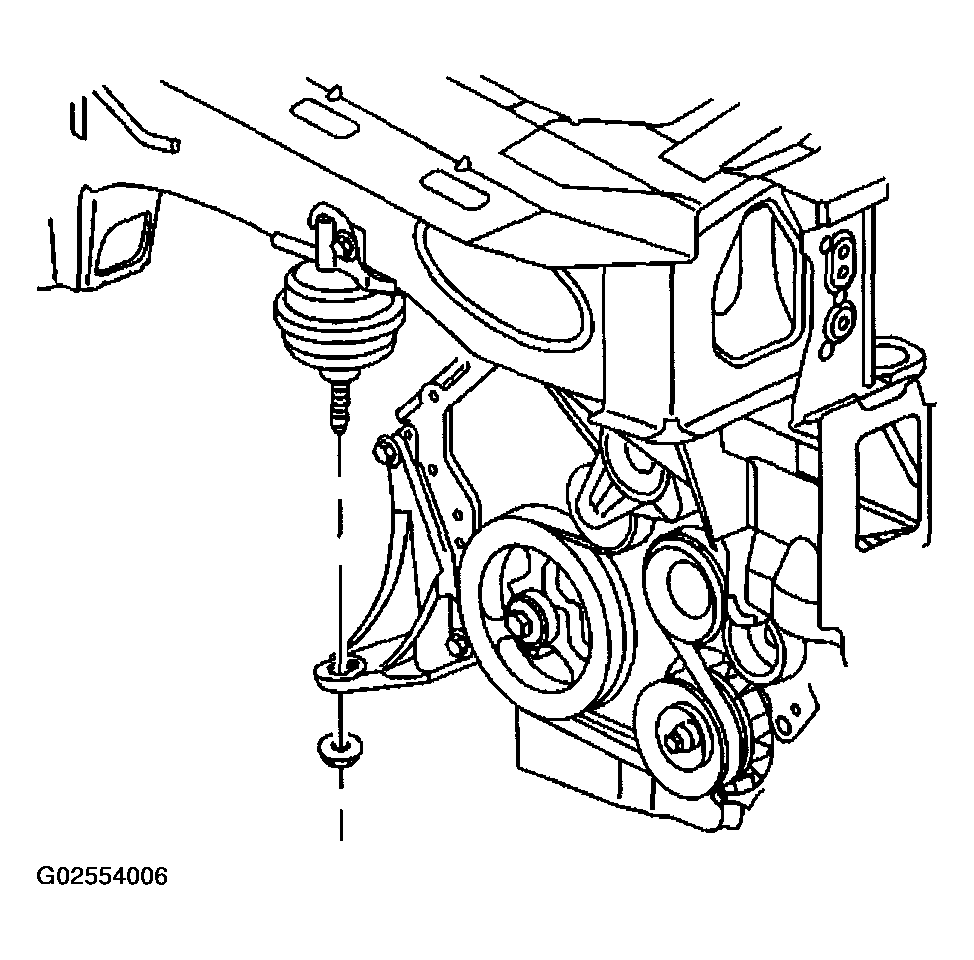

Fig 5: Installing Nut Securing Engine Mount To Engine Mount Bracket
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the mount nut to 80 N.m (59 lb ft).
Remove the engine support jack.
Lower the vehicle.
Install the drive belt idler pulley.

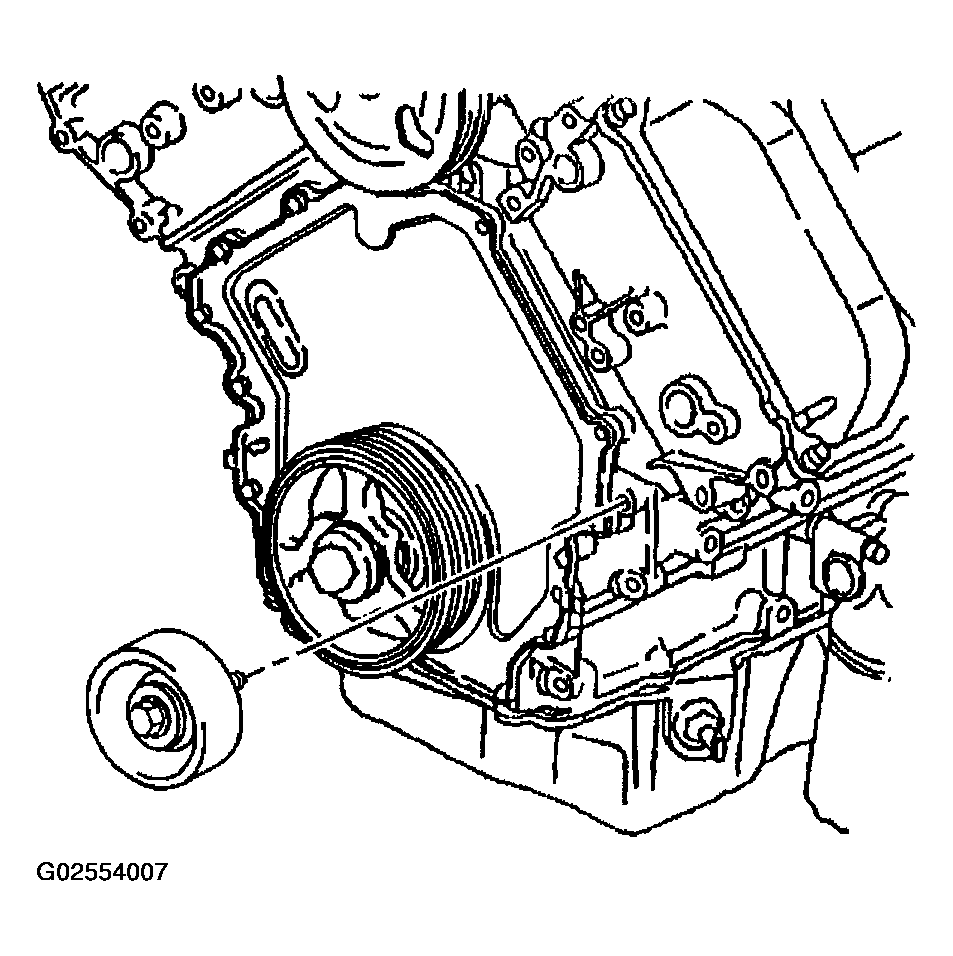

Fig 6: Installing Drive Belt Idler Pulley
Courtesy of GENERAL MOTORS CORP.
Install the drive belt idler pulley bolt.
Tighten

Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).
Install the drive belt tensioner. Refer to DRIVE BELT TENSIONER REPLACEMENT .
