Ignition Module Removal - Right

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil assembly bolts.
  2. Remove the ignition coil assembly.

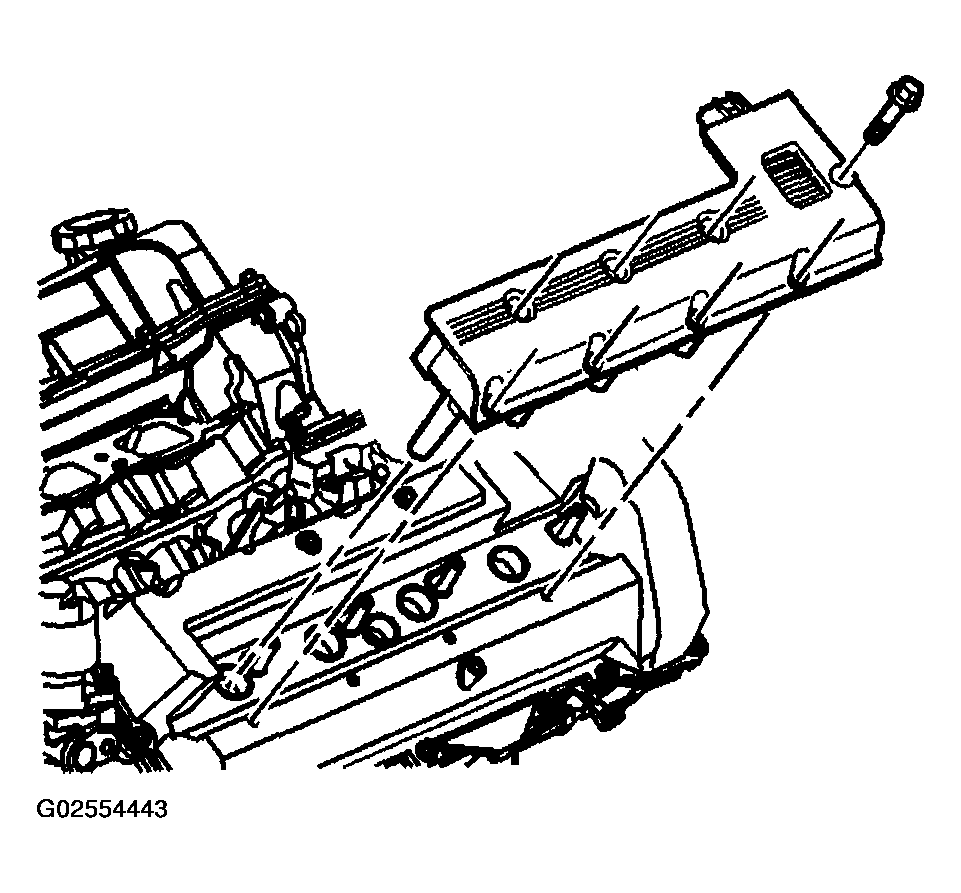

    Fig 1: Removing Ignition Coil Assembly
    G02554443Courtesy of GENERAL MOTORS CORP.
  3. Remove the right spark plugs.

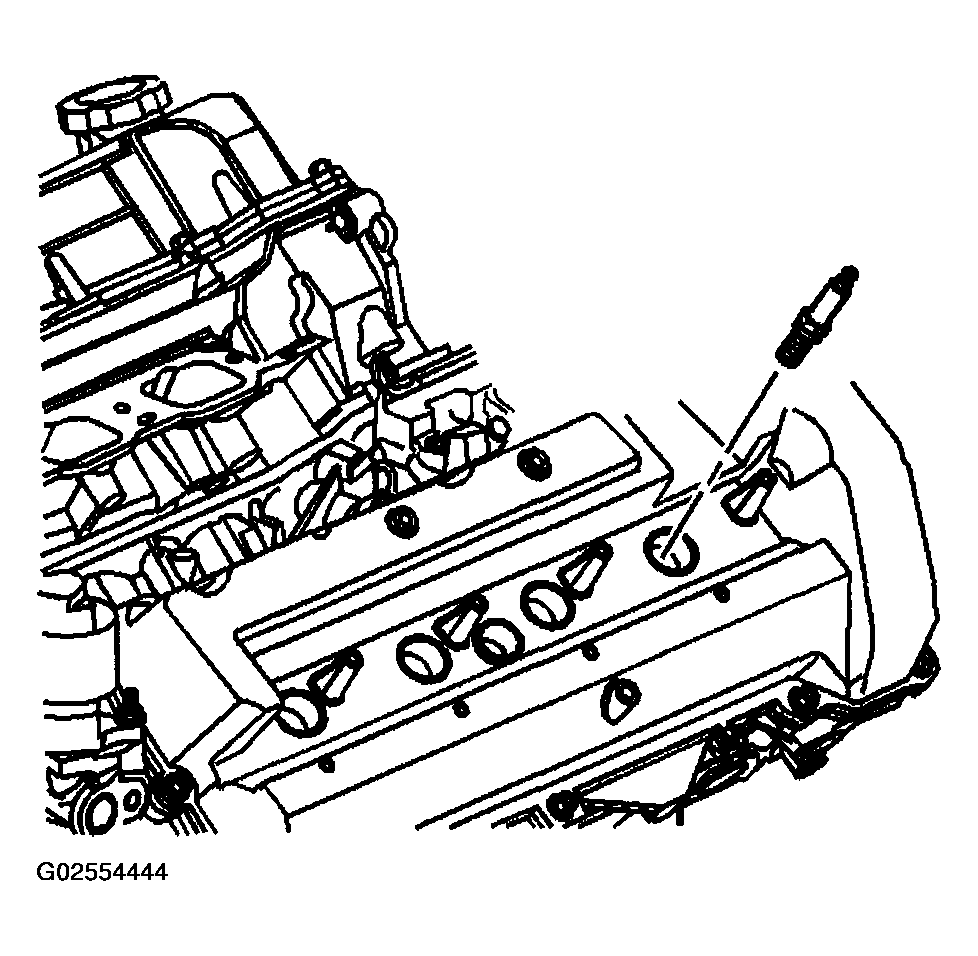

    Fig 2: Removing Spark Plugs
    G02554444Courtesy of GENERAL MOTORS CORP.
  4. Remove the spark plug boots.

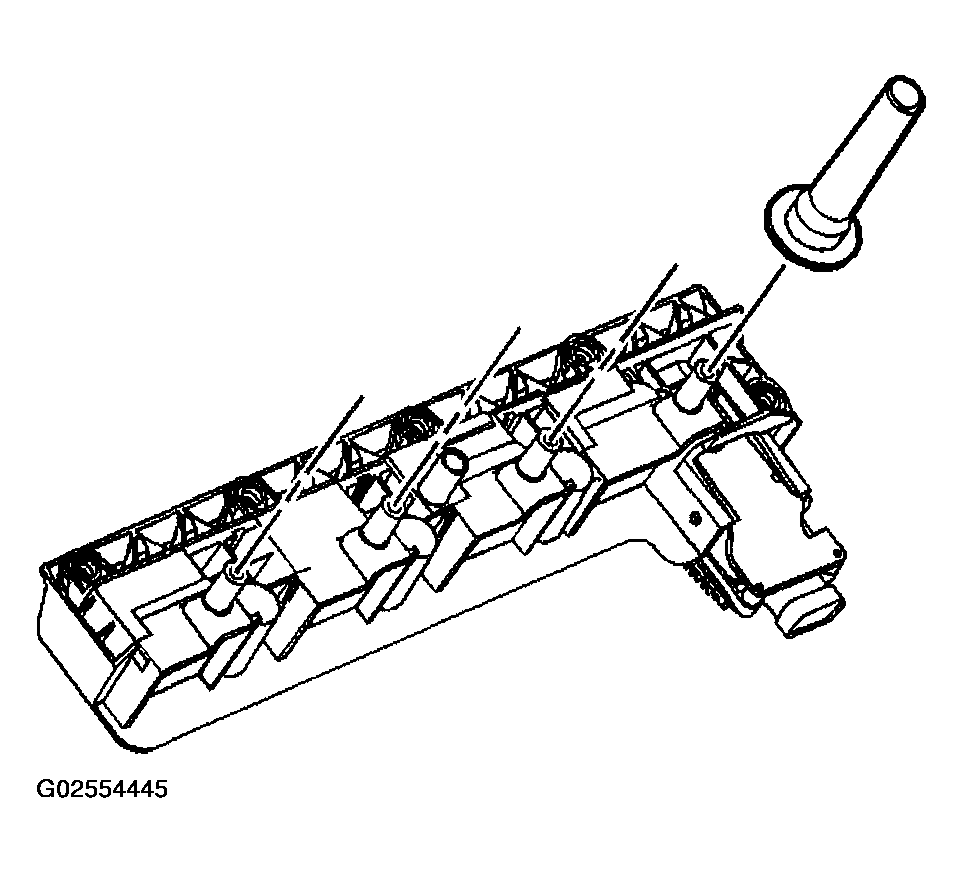

    Fig 3: Removing Spark Plug Boots
    G02554445Courtesy of GENERAL MOTORS CORP.
