Ignition Module Removal - Left

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil assembly bolts.
  2. Remove the ignition coil assembly.

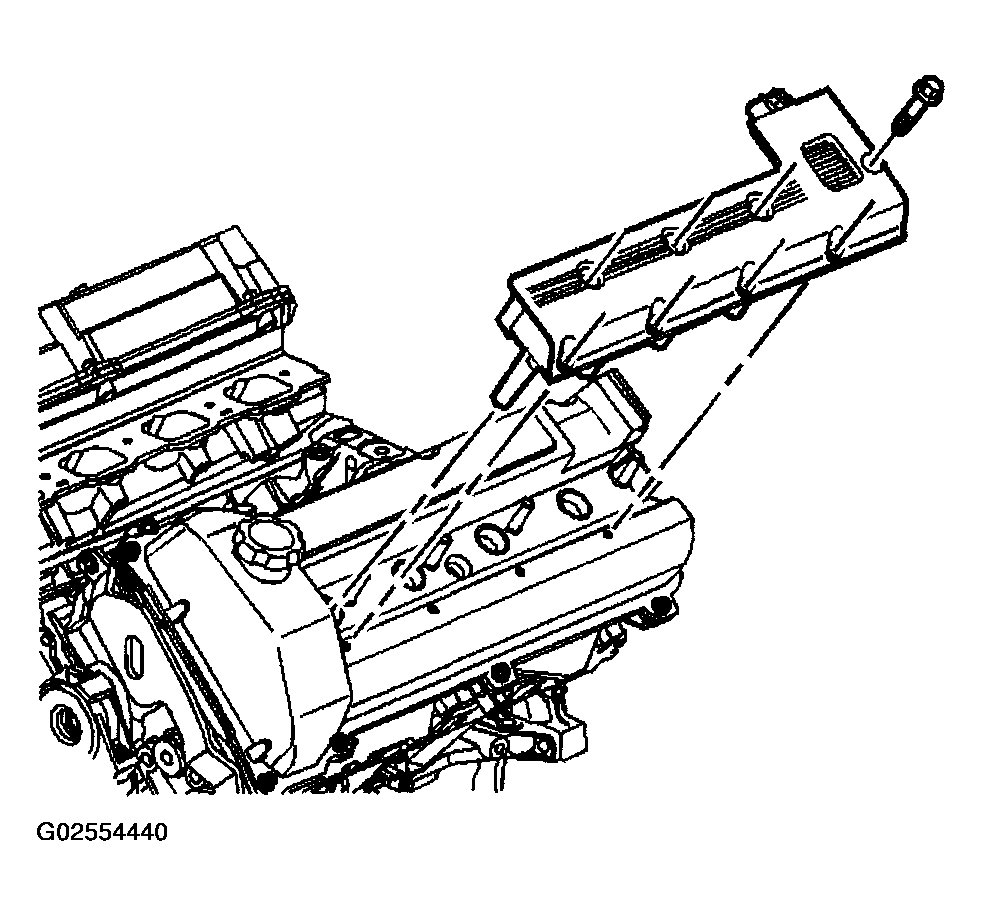

    Fig 1: Removing Ignition Coil Assembly
    G02554440Courtesy of GENERAL MOTORS CORP.
  3. Remove the left spark plugs.

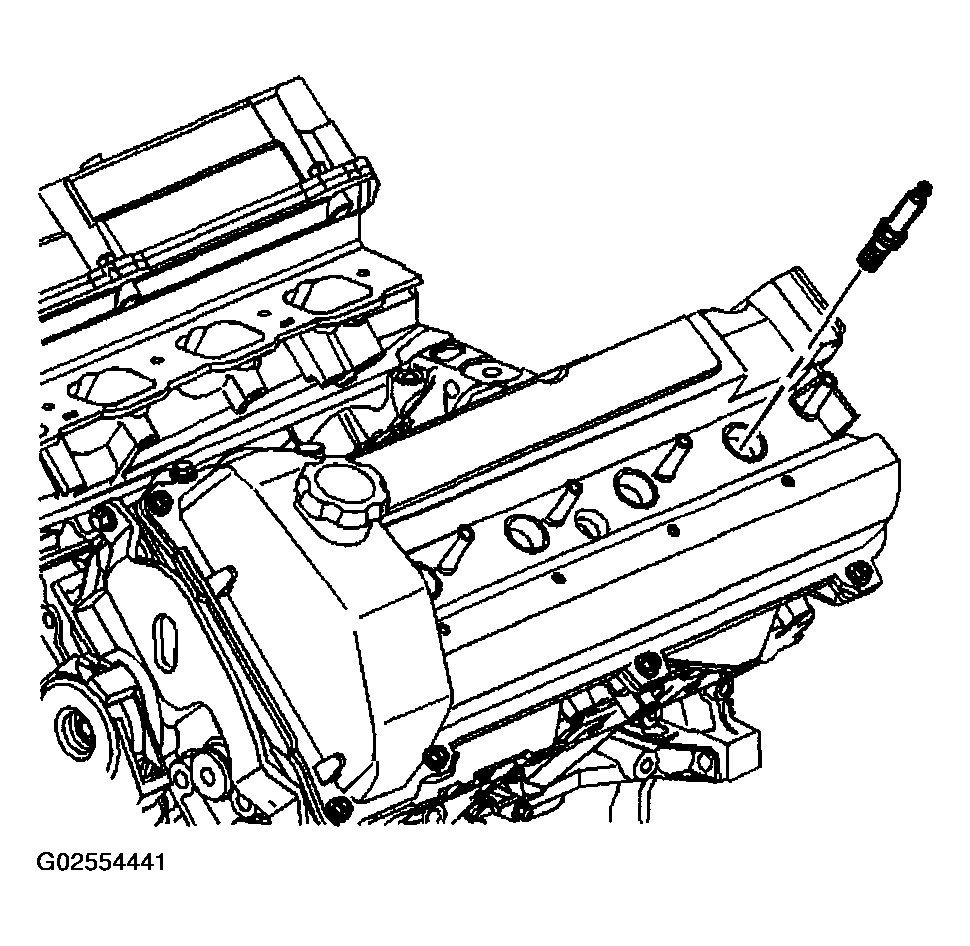

    Fig 2: Removing Left Spark Plugs
    G02554441Courtesy of GENERAL MOTORS CORP.
  4. Remove the spark plug boots.

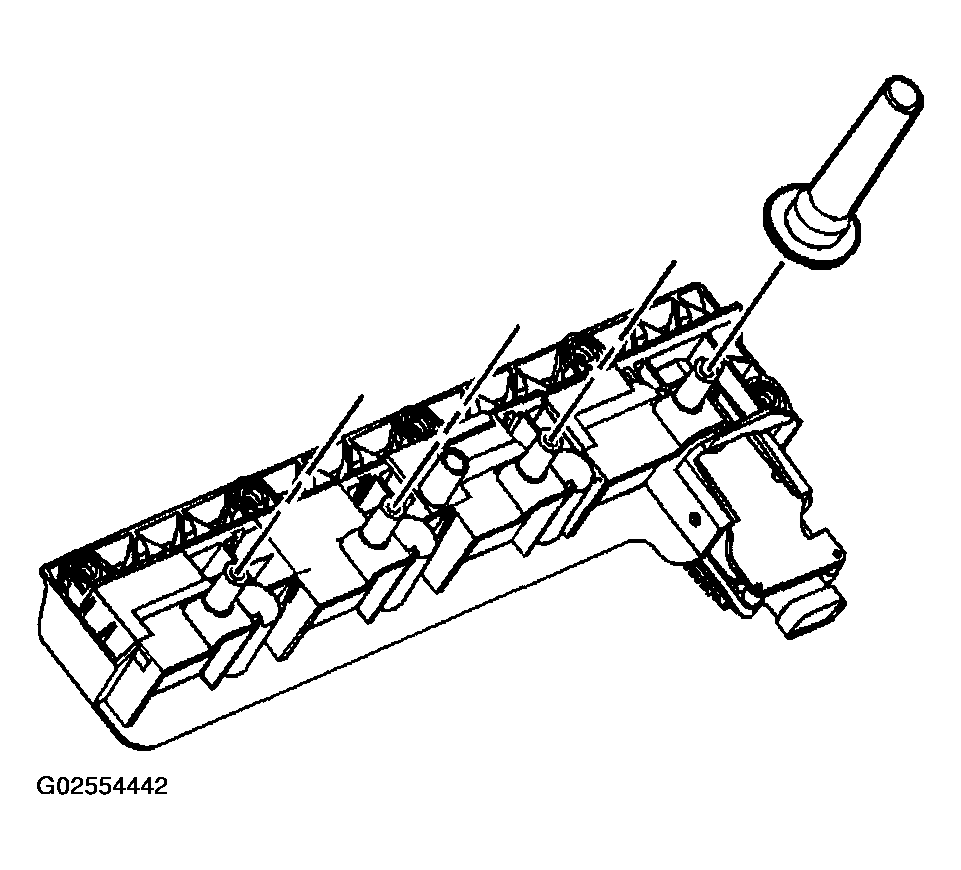

    Fig 3: Removing Spark Plug Boots
    G02554442Courtesy of GENERAL MOTORS CORP.
