Generator Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Place the generator in position.
Install the generator side bolt or bolts finger tight.

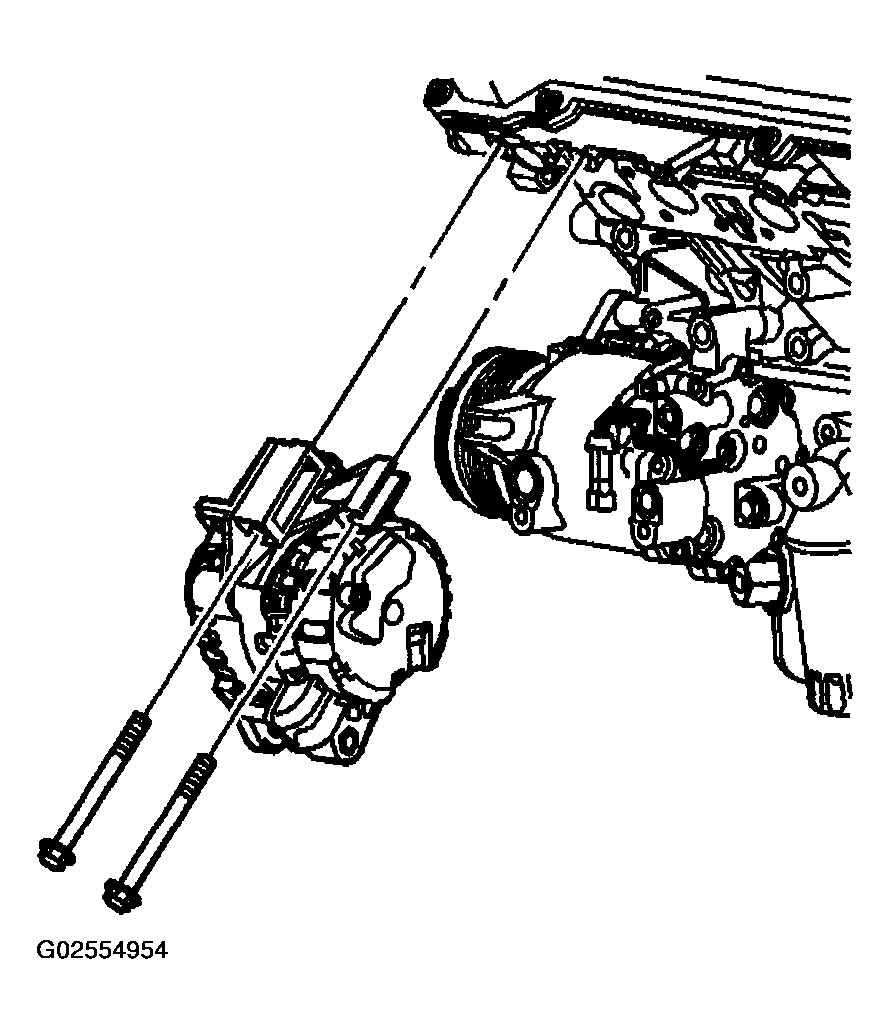

Fig 1: Installing Generator
Courtesy of GENERAL MOTORS CORP.
Install the generator front bolts finger tight.

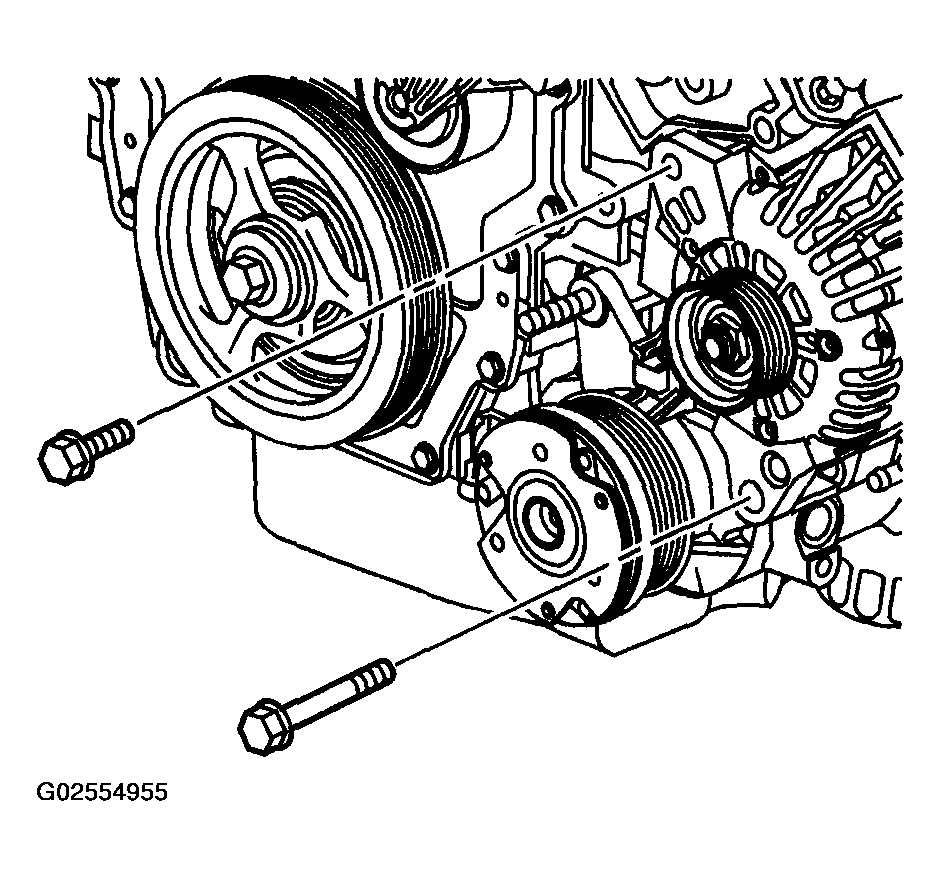

Fig 2: Installing Generator Front Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Tighten the generator bolts in the following sequence:
Tighten
- Tighten the generator front upper bolt to 50 N.m (37 lb ft).
- Tighten the generator side front bolt to 50 N.m (37 lb ft).
- Tighten the generator side rear bolt to 50 N.m (37 lb ft).
- Tighten the generator front lower bolt to 50 N.m (37 lb ft).
