Engine Front Cover Installation

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Place a small amount of sealant GM P/N 12345739, (Canadian P/N 10953541), or equivalent at the split line of the upper and lower crankcases (1).

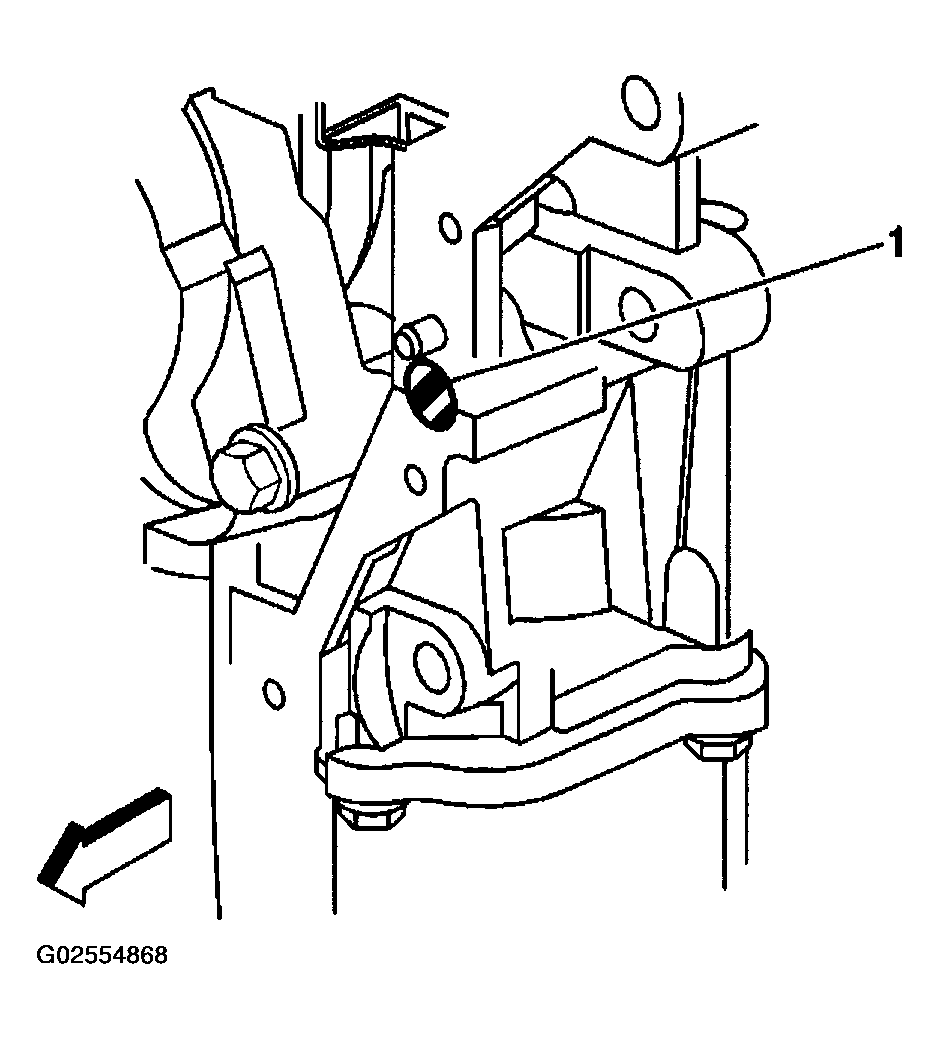

Fig 1: Locating Split Line Of Upper & Lower Crankcases
Courtesy of GENERAL MOTORS CORP.
Place the front cover gasket over the crankcase dowel pins.
Place the front cover in position on the crankcase.
Install the front cover retaining bolts.

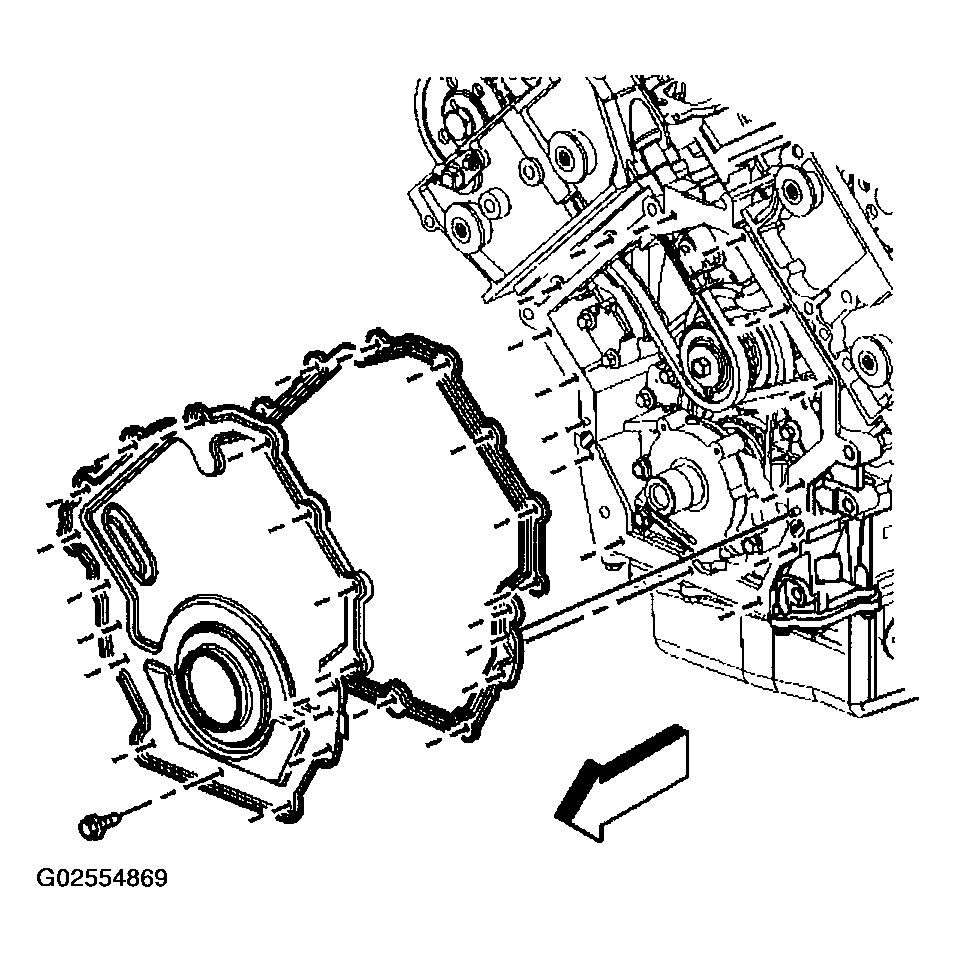

Fig 2: Installing Front Cover
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Tighten the front cover retaining bolts in the sequence shown.
Tighten

Tighten the front cover retaining bolts in proper sequence to 10 N.m (89 lb in).

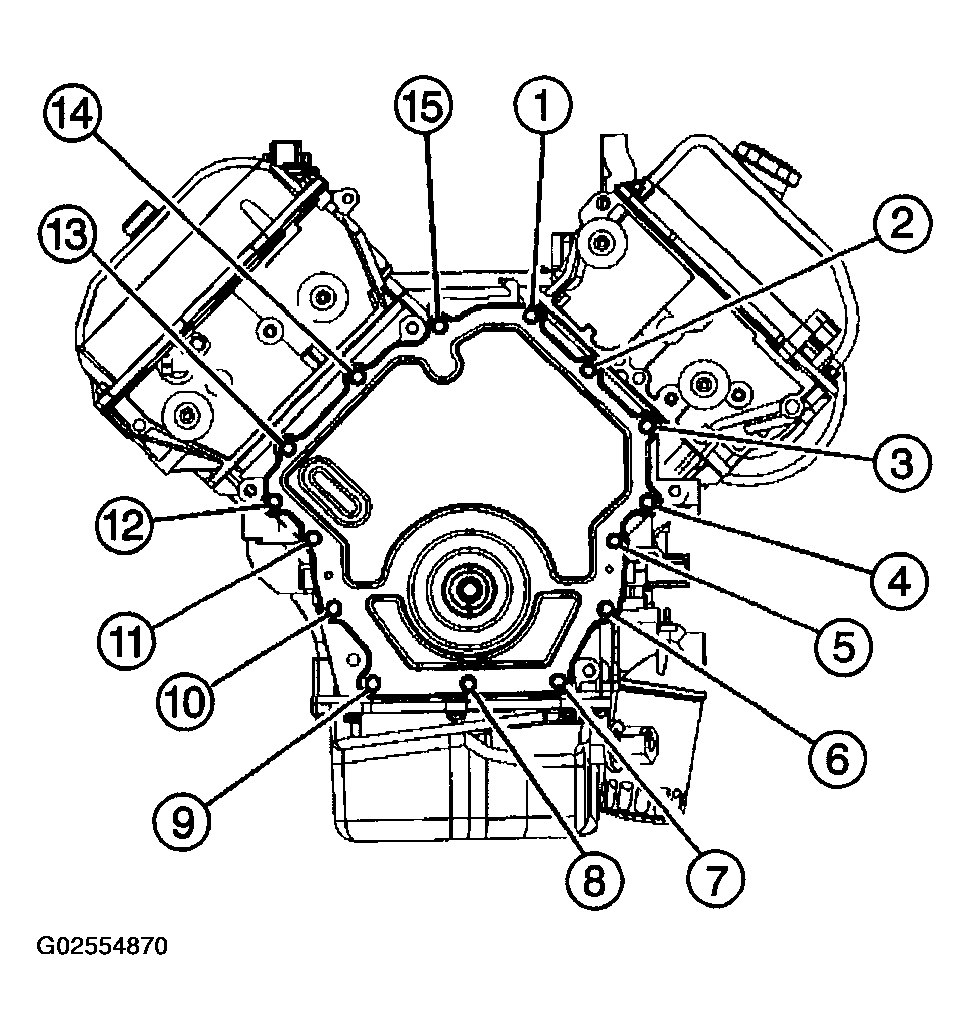

Fig 3: Identifying Front Cover Retaining Bolts Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
