Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power seat switch into the switch bracket.

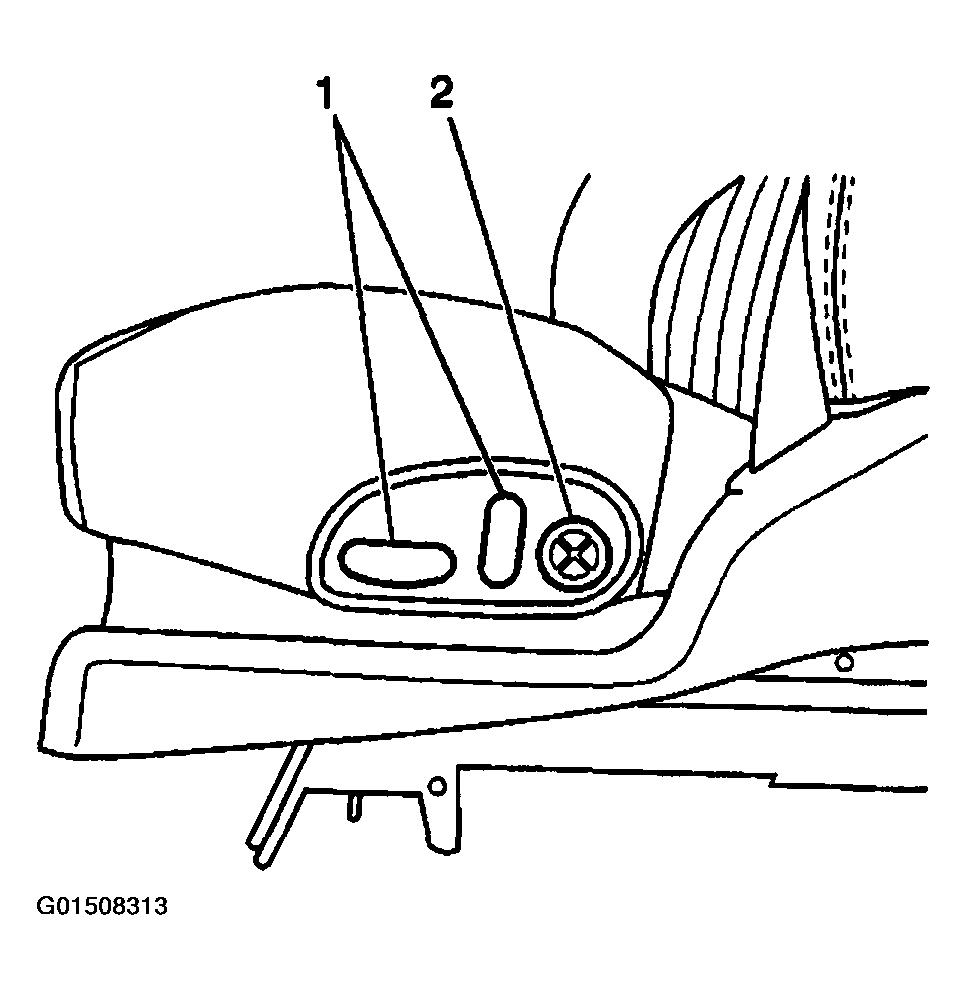

    Fig 1: Installing Seat Switch - Power
    G01508313Courtesy of GENERAL MOTORS CORP.
  2. Install the wiring harness in the position in which it was removed.
  3. Connect the electrical connectors to the power seat switches.
  4. Slide the bracket with the switches upward into the seat cushion frame.
  5. Install the retainers in order to secure the bracket and switches to the seat cushion frame.
  6. Install the seat cushion cover over the switches aligning the holes in the cover to the switch assembly.
  7. Position the power seat switch bezel over the switches.
  8. Install the power seat switch bezel fasteners.
  9. Install the power seat switch knobs (1).
  10. Install the seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  11. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 .
