Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch assembly. Refer to SEAT SWITCH REPLACEMENT - POWER  .
  2. Use a flat bladed tool in order to remove the lumbar switch from the power seat switch bracket.

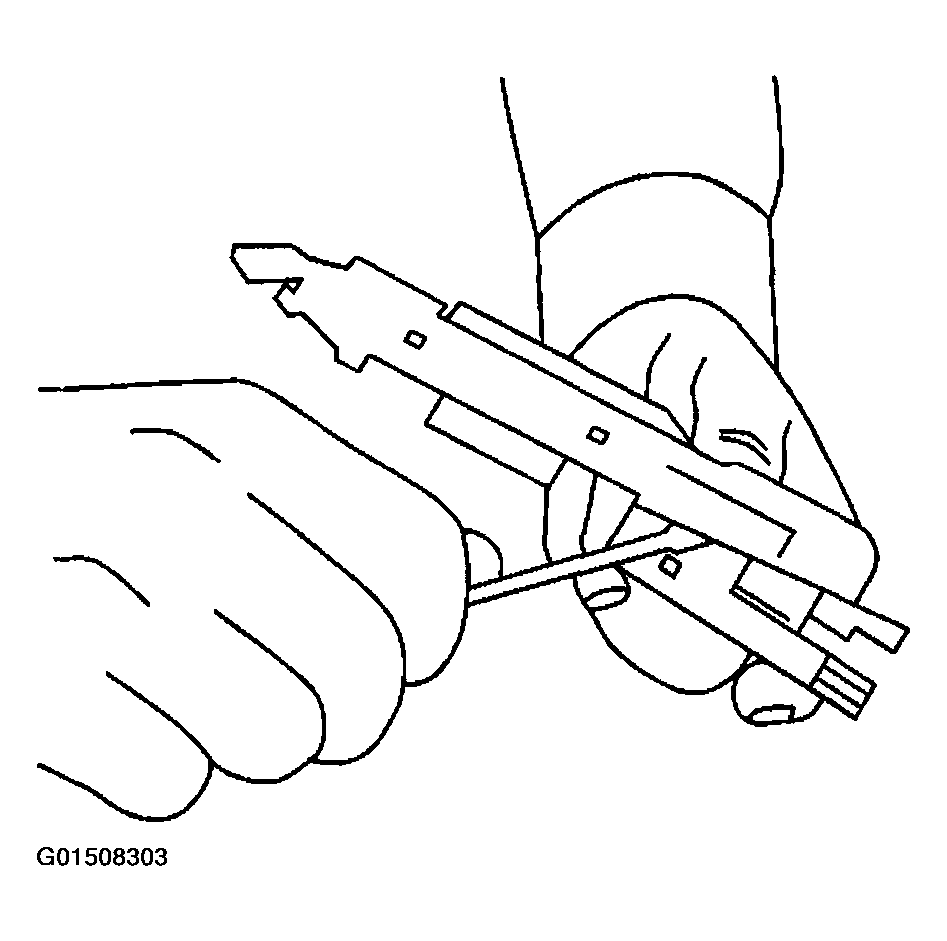

    Fig 1: Removing Lumbar Switch
    G01508303Courtesy of GENERAL MOTORS CORP.
