Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the heated seat switch into the console trim plate.
  2. Install the fastener.
  3. Install the electrical connectors.
  4. Install the console trim plate. Refer to TRIM PLATE REPLACEMENT -- CONSOLE in Instrument Panel, Gages and Console.

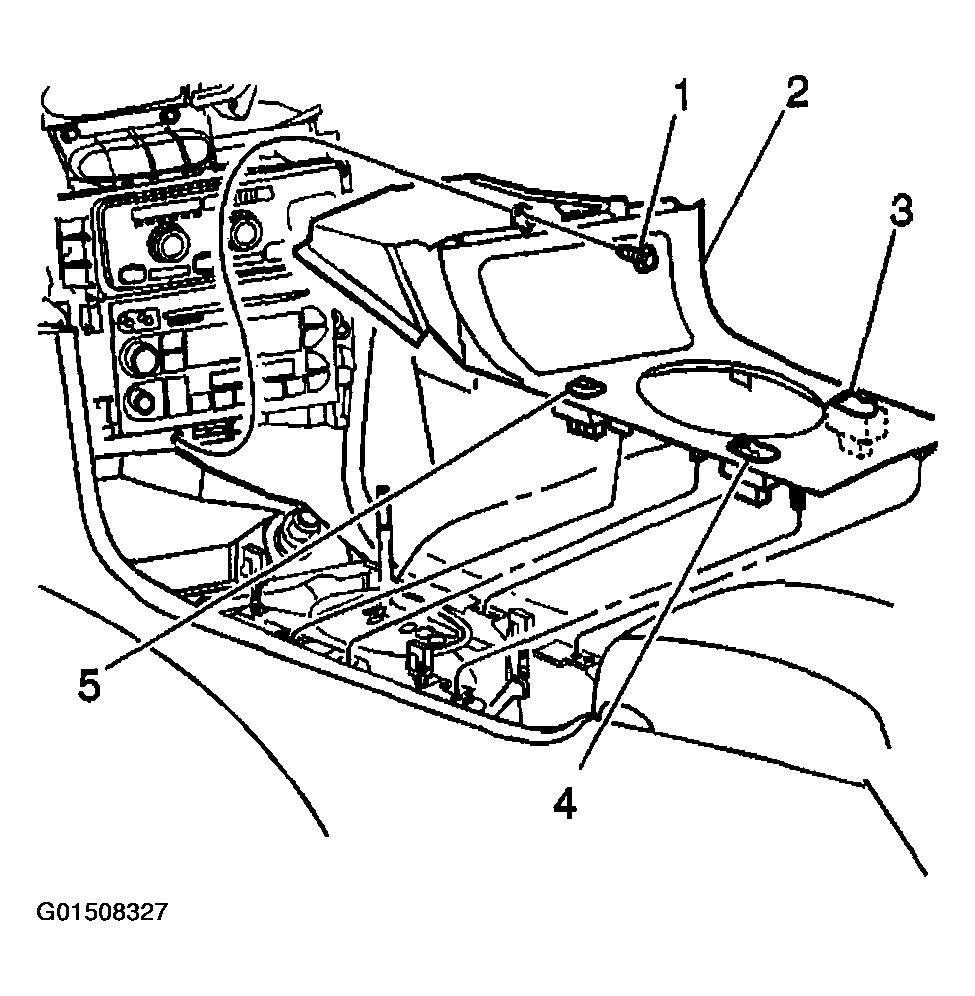

    Fig 1: Installing Heated Seat Switch
    G01508327Courtesy of GENERAL MOTORS CORP.
