Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the wiper blade onto the arm by placing the arm hook through the opening in the wiper blade. Slide the arm hook onto the blade retaining clip until it clicks into position.

Fig 1: Installing Wiper Blade Onto Wiper Arm
Courtesy of GENERAL MOTORS CORP.

Important: The wiper system must be in the park position when installing the wiper arms. If the wiper system is not in the park position, damage to the wiper system and the vehicle will occur.
Operate the wiper system and then turn the wiper control switch to the OFF position to assure the wiper system is in the park position.
Important: Clean the wiper transmission pivot shaft knurls with a wire brush.
Install the wiper arm onto the pivot shaft while aligning the wiper blade with the locating marks on the windshield. If the windshield does not have locating marks, locate the center of the blades to the distance shown up from the base of the windshield.
- Passenger Side - 112.1 mm (4.41 in)
- Driver Side - 79.6 mm (3.13 in)

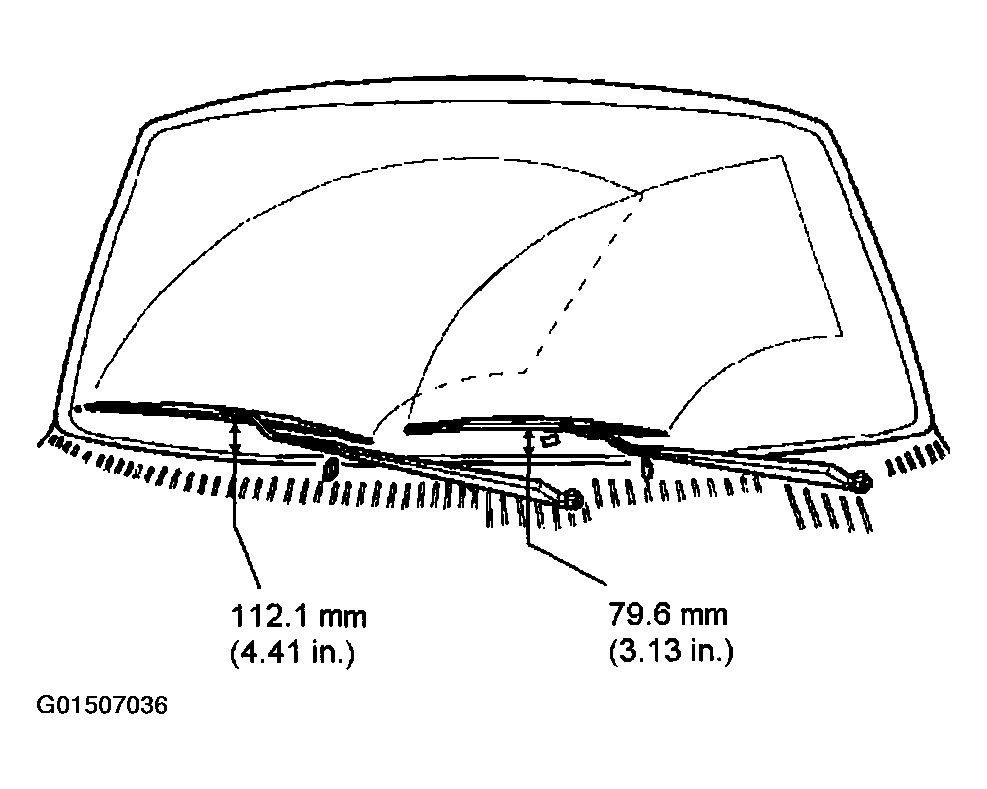

Fig 2: Installing Wiper Arm Onto Pivot Shaft
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the nut on the wiper arm pivot shaft.
Tighten

Tighten the nut to 32 N.m (24 lb ft).
Install the cover onto the nut.
Important: Lubricate the washer hose with windshield washer solvent to ease attachment to the fitting on the air inlet grille panel.
Attach the washer hose to the fitting on the air inlet grille panel.
Operate the wipers and washers and check for proper operation.

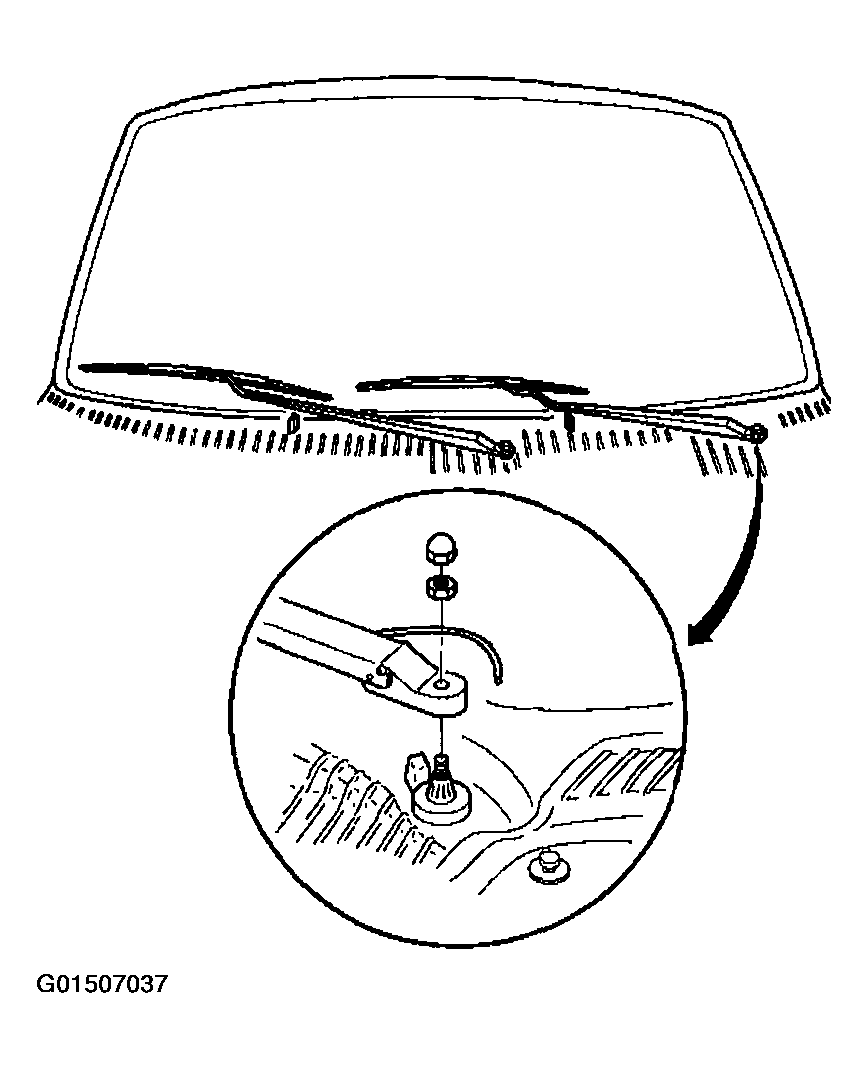

Fig 3: Installing Nut On Wiper Arm Pivot Shaft
