Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Bumpers.
  2. Disconnect the washer hose from the washer pump.
  3. Disconnect the electrical connector from the washer pump.
  4. Disconnect the electrical connector from the washer solvent level sensor.

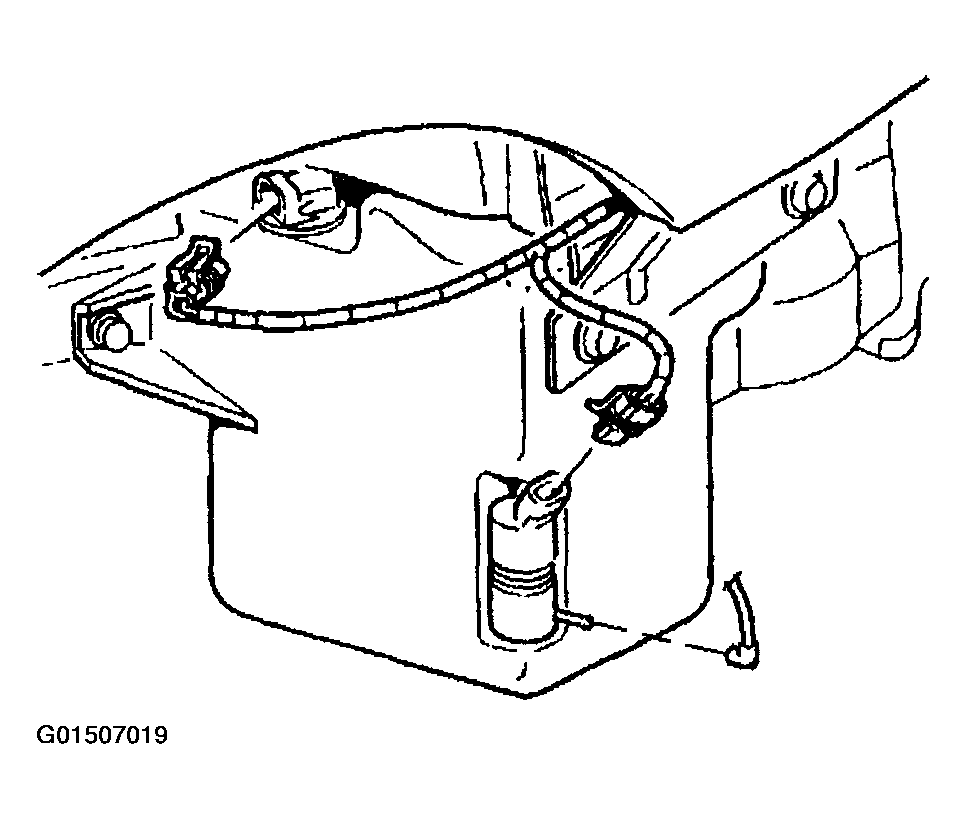

    Fig 1: Disconnecting Electrical Connector From Washer Solvent Level Sensor
    G01507019Courtesy of GENERAL MOTORS CORP.
  5. Remove the 3 nuts from the washer solvent container.
  6. Remove the washer solvent container from the vehicle.

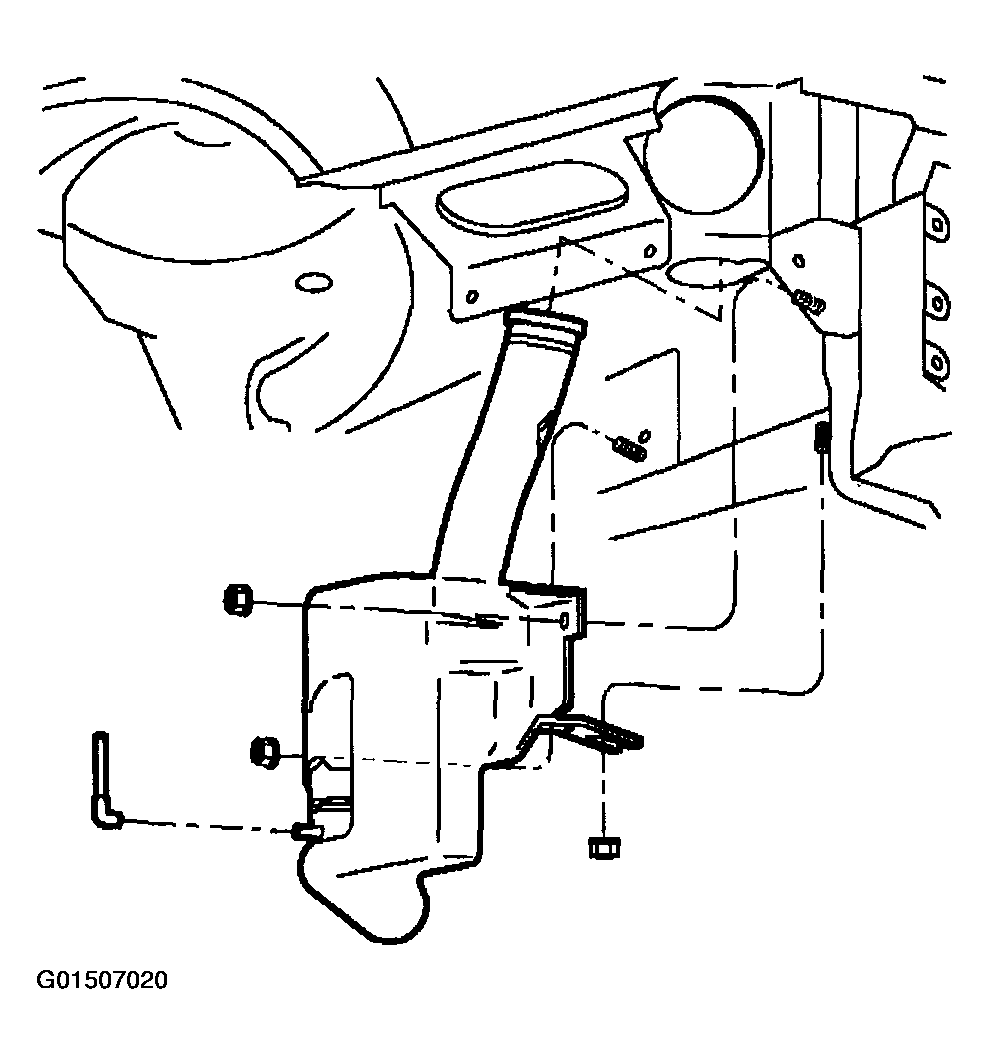

    Fig 2: Removing Washer Solvent Container
    G01507020Courtesy of GENERAL MOTORS CORP.
  7. Remove the washer pump from the washer solvent container.
    Fig 3: Removing Washer Pump From Washer Solvent Container
    G01507021Courtesy of GENERAL MOTORS CORP.
