Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump in the washer solvent container.
    Fig 1: Installing Washer Pump In Washer Solvent Container
    G01507022Courtesy of GENERAL MOTORS CORP.
  2. Install the washer solvent container on the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 3 nuts.

    Tighten

    Tighten the 3 nuts to 6 N.m (53 lb in).

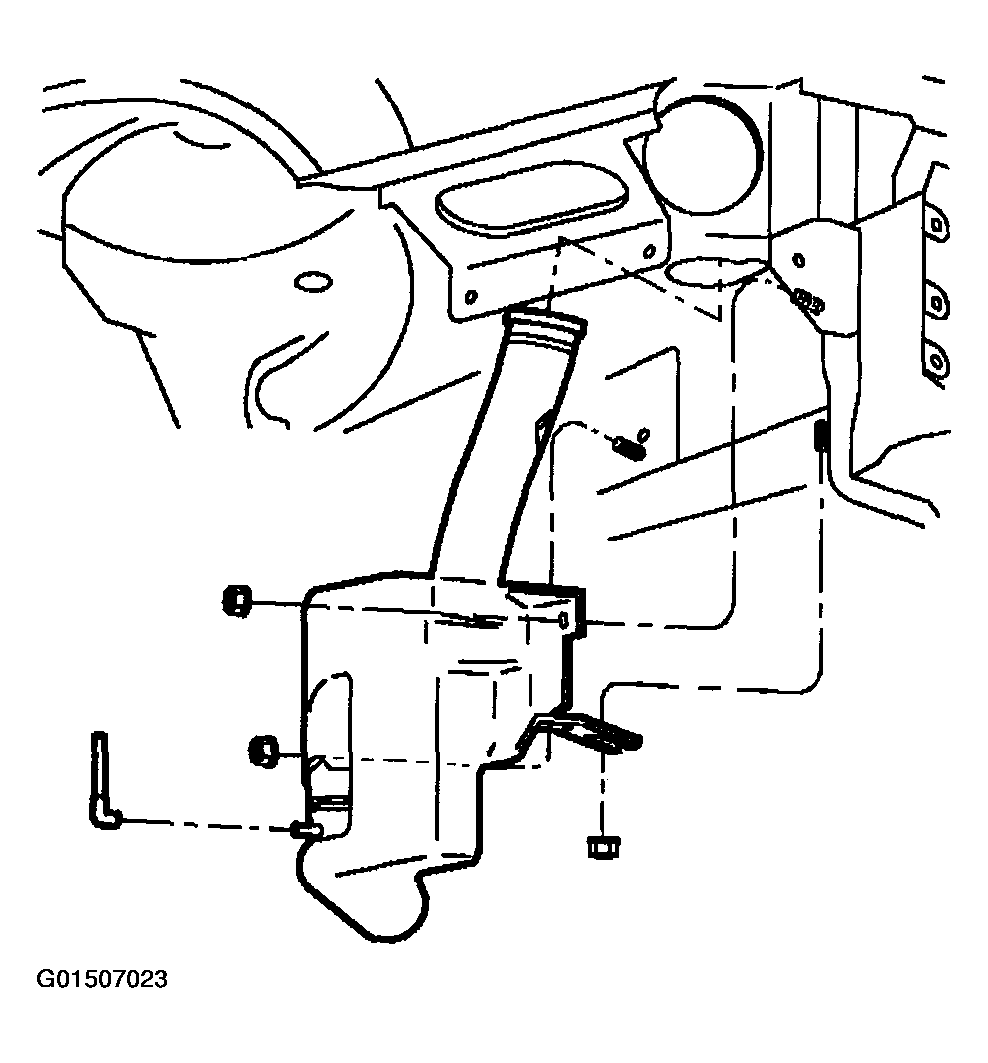

    Fig 2: Installing Washer Solvent Container
    G01507023Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the washer solvent level sensor.
  5. Connect the electrical connector to the washer pump.
  6. Connect the washer hose to the washer pump.
  7. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Bumpers.

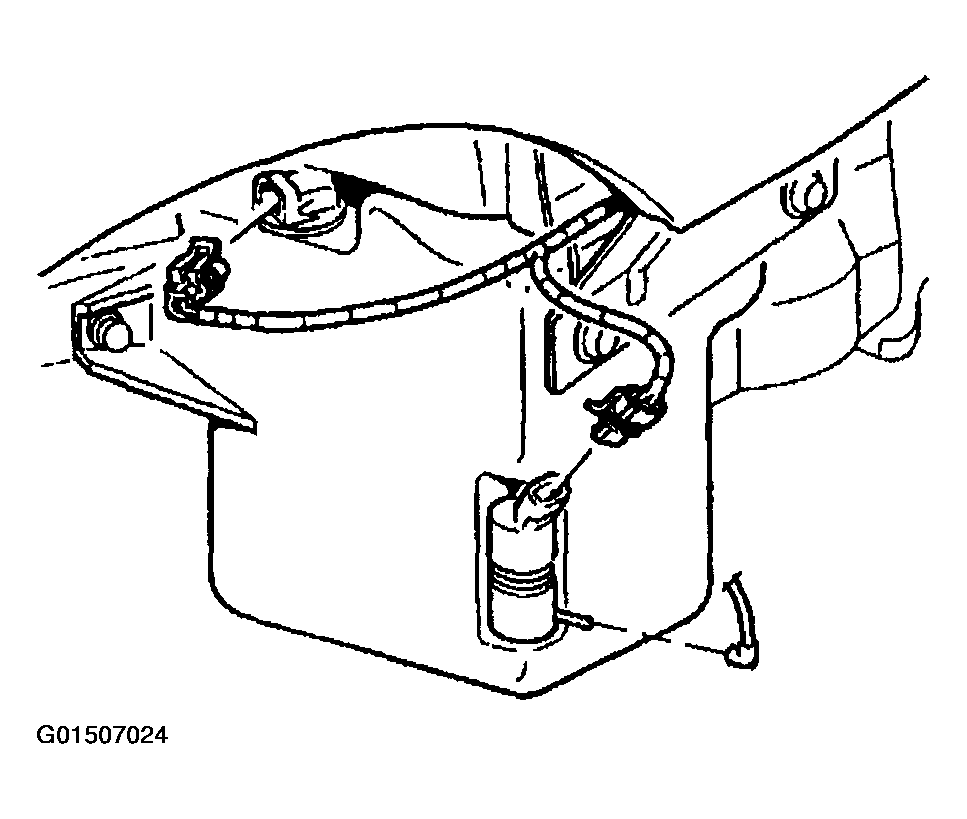

    Fig 3: Connecting Electrical Connectors To Washer Pump & Washer Solvent Level Sensor
    G01507024Courtesy of GENERAL MOTORS CORP.
