Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the washer solvent container.
  2. Remove the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Bumpers.
  3. Disconnect the electrical connector from the washer solvent level sensor.

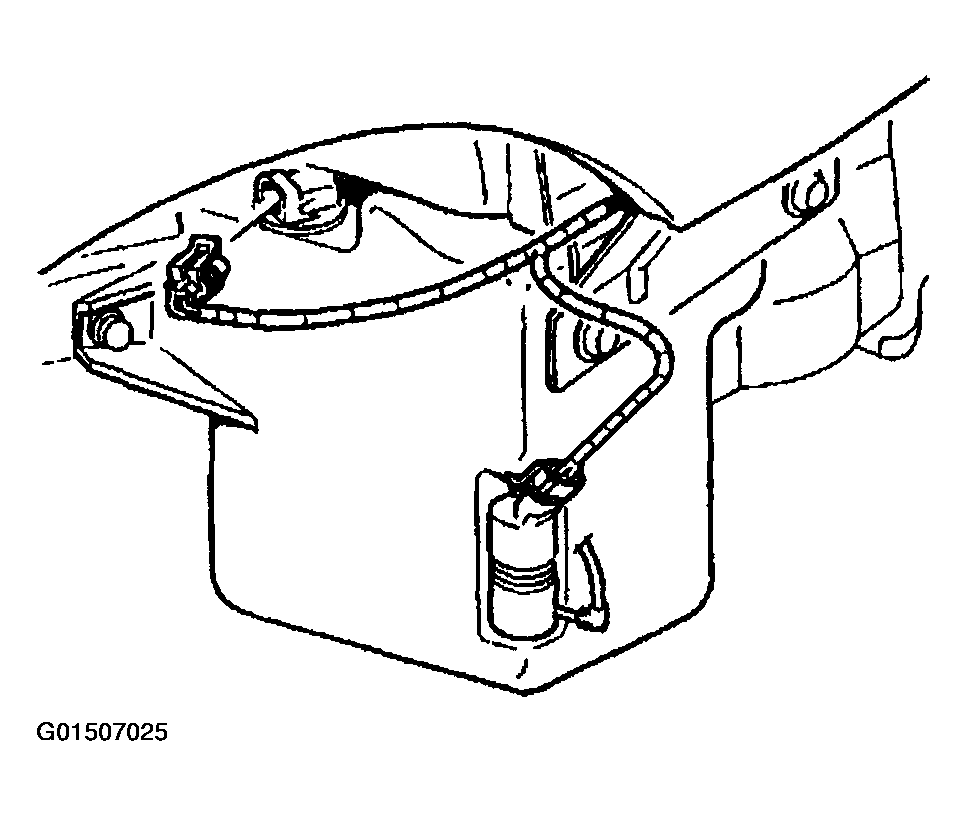

    Fig 1: Disconnecting Electrical Connector From Washer Solvent Level Sensor
    G01507025Courtesy of GENERAL MOTORS CORP.
  4. Remove the washer solvent level sensor from the washer solvent container.
    Fig 2: Removing Washer Solvent Level Sensor
    G01507026Courtesy of GENERAL MOTORS CORP.
