Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump in the washer solvent container.
    Fig 1: Installing Washer Pump In Washer Solvent Container
    G01507031Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the washer pump.
  3. Connect the washer hose to the washer pump.
  4. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Bumpers.
  5. Fill the washer solvent container.

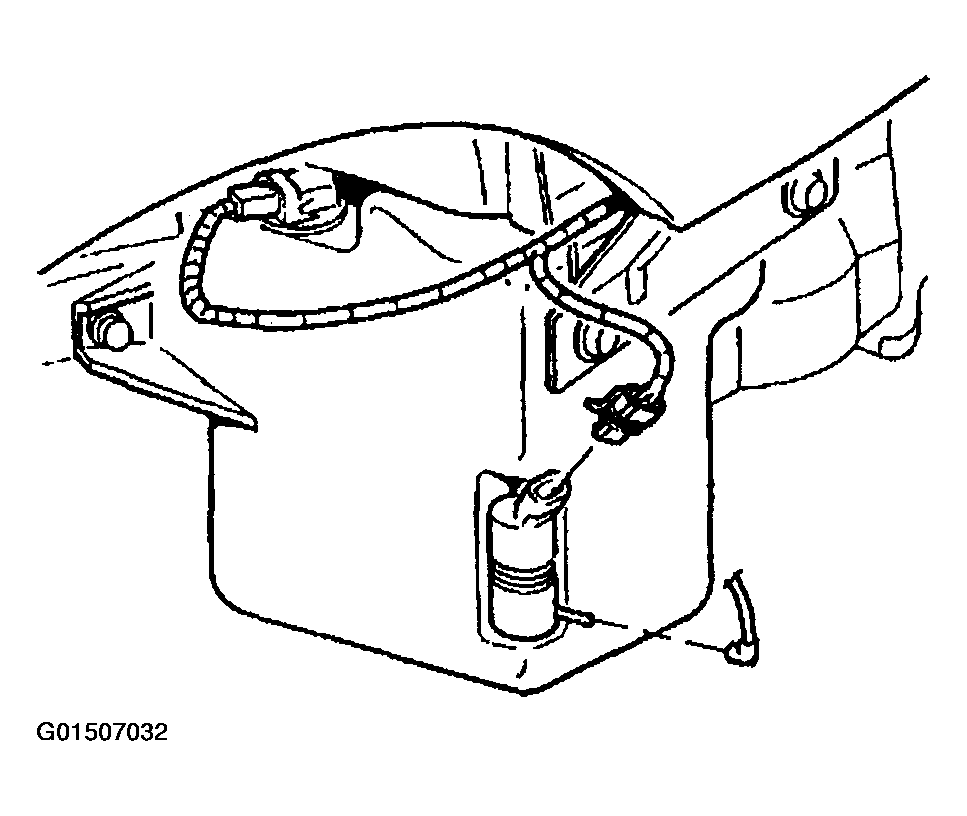

    Fig 2: Connecting Electrical Connector To Washer Pump
    G01507032Courtesy of GENERAL MOTORS CORP.
