Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The Headlamp Switch Assembly is part of the Multifunction Turn Signal Assembly which is serviced in steering. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT in Steering Wheel and Column.

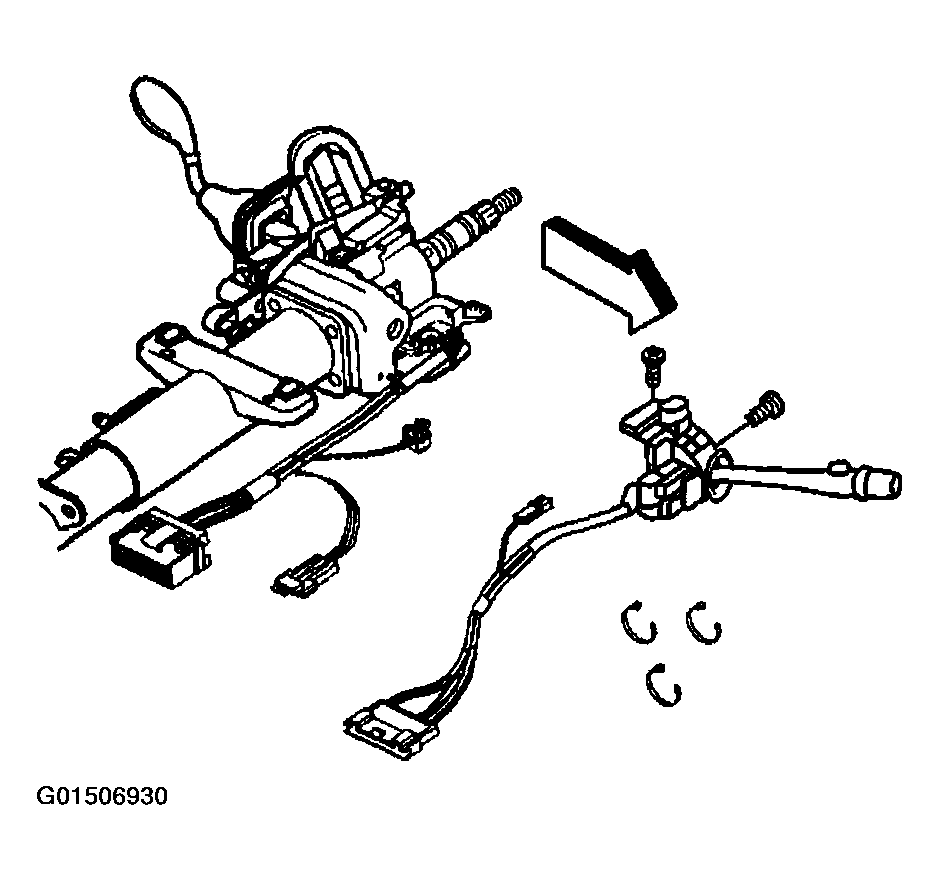

Fig 1: Identifying Headlamp Switch
G01506930Courtesy of GENERAL MOTORS CORP.
