Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the door lamp housing.
  2. Connect the electrical connector.
  3. Press the door lamp into the door trim panel.

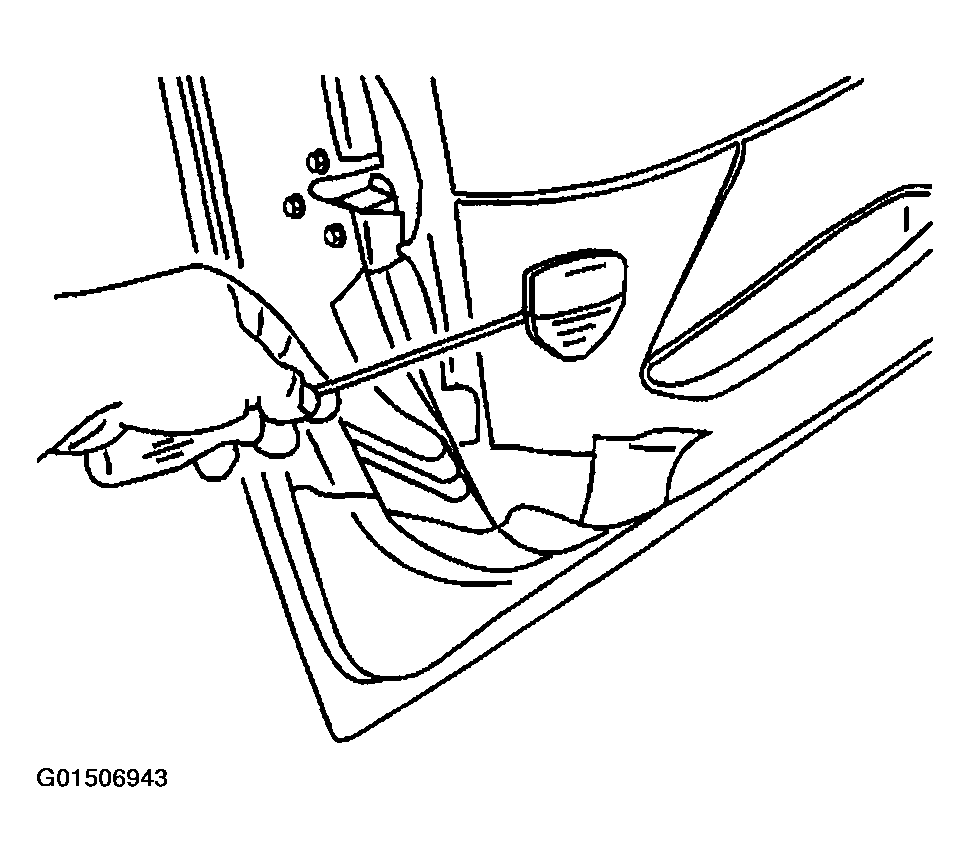

    Fig 1: Installing Door Lamp
    G01506943Courtesy of GENERAL MOTORS CORP.
