Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Ignition lock cylinder lamp bulb into the lamp socket (1).
  2. Install the Ignition lock cylinder lamp bulb socket by turning clockwise 1/4 turn.
  3. Install the Ignition Switch. Refer to IGNITION SWITCH REPLACEMENT in Instrument Panel, Gages, and Console.

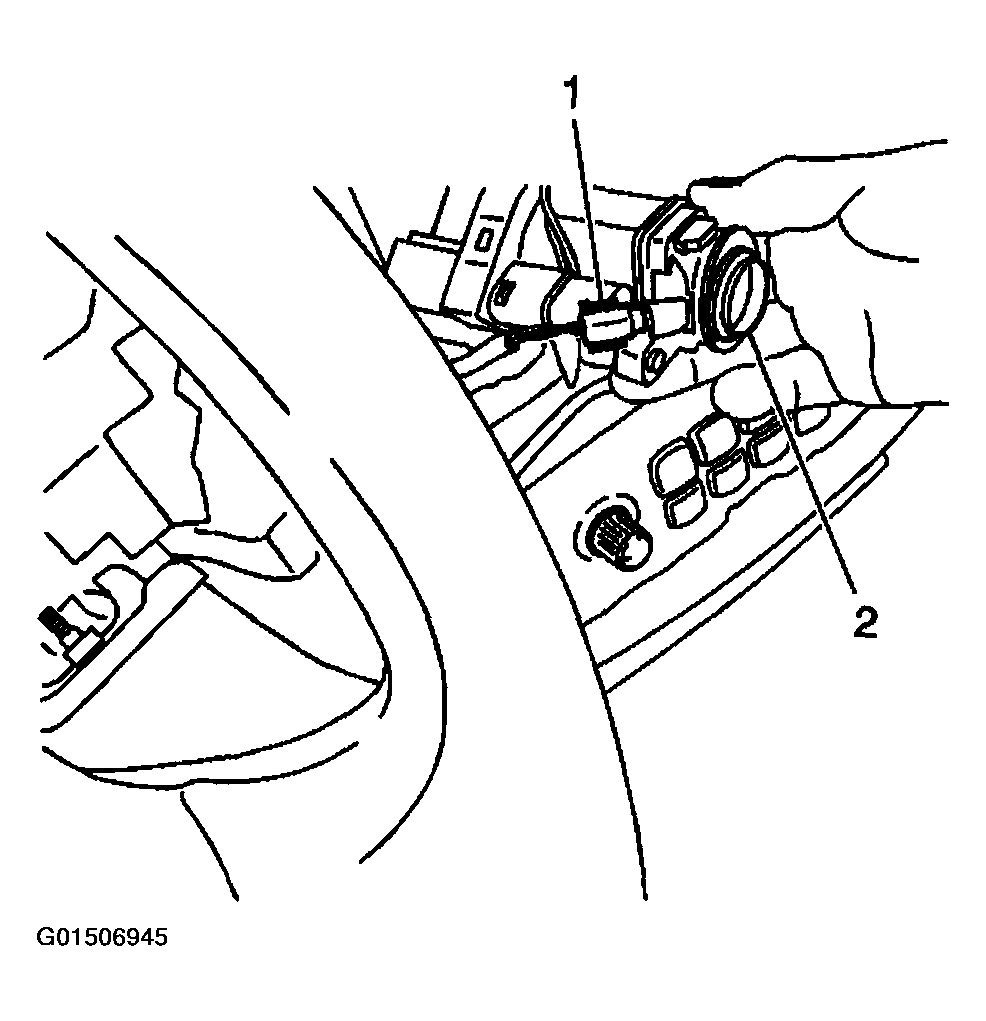

    Fig 1: Installing Ignition Cylinder Lamp Bulb
    G01506945Courtesy of GENERAL MOTORS CORP.
