WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

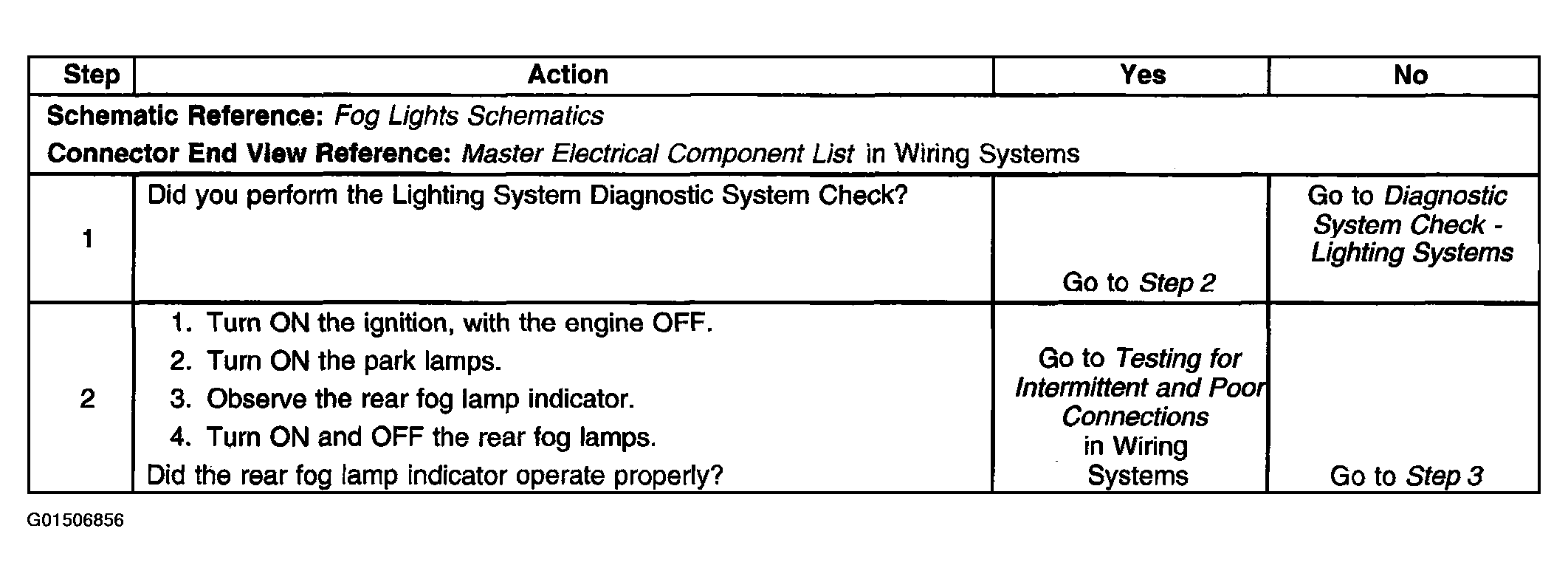

Fig 1: Fog Lamp Indicator Always On-Rear Diagnostic Specifications (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

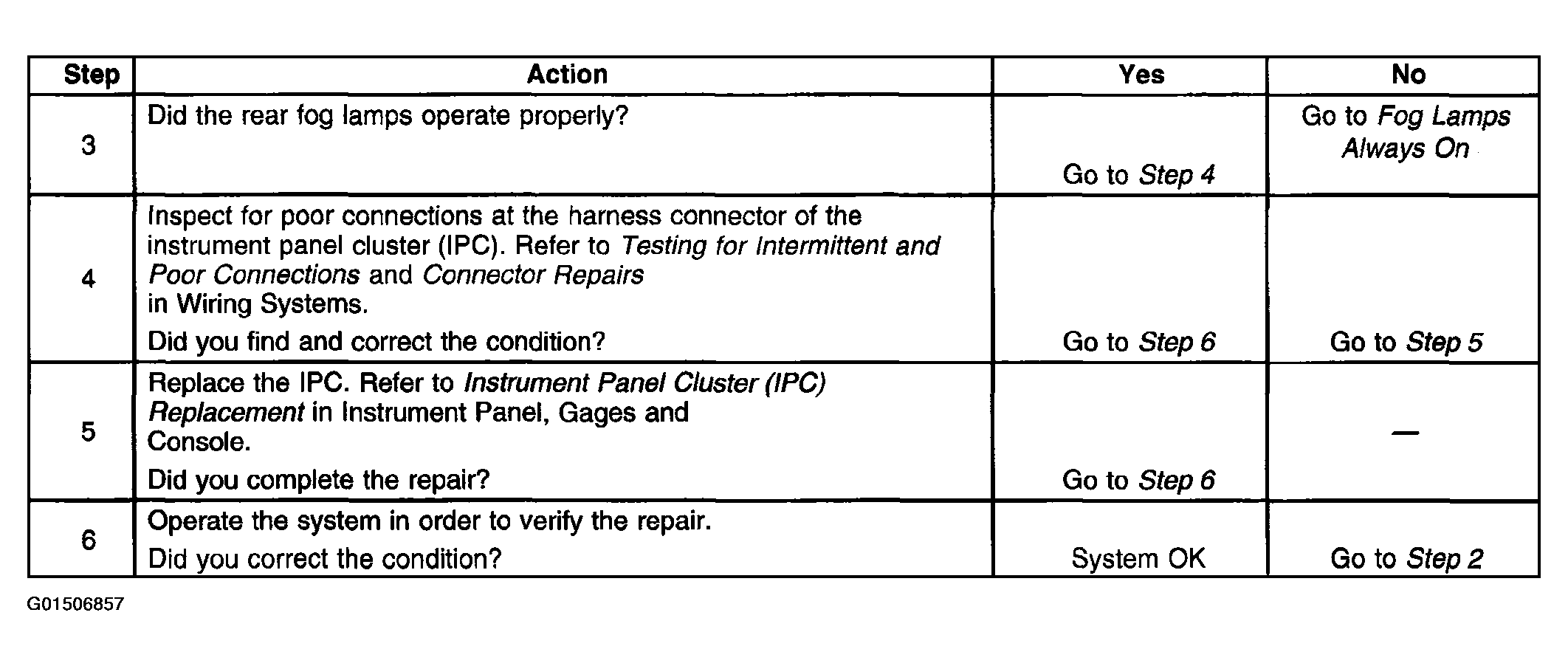

Fig 2: Fog Lamp Indicator Always On-Rear Diagnostic Specifications (2 Of 2)
