Rear Toe Adjustment
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
Important: Complete the left and right rear toe adjustments separately, per wheel. Use the following procedure.

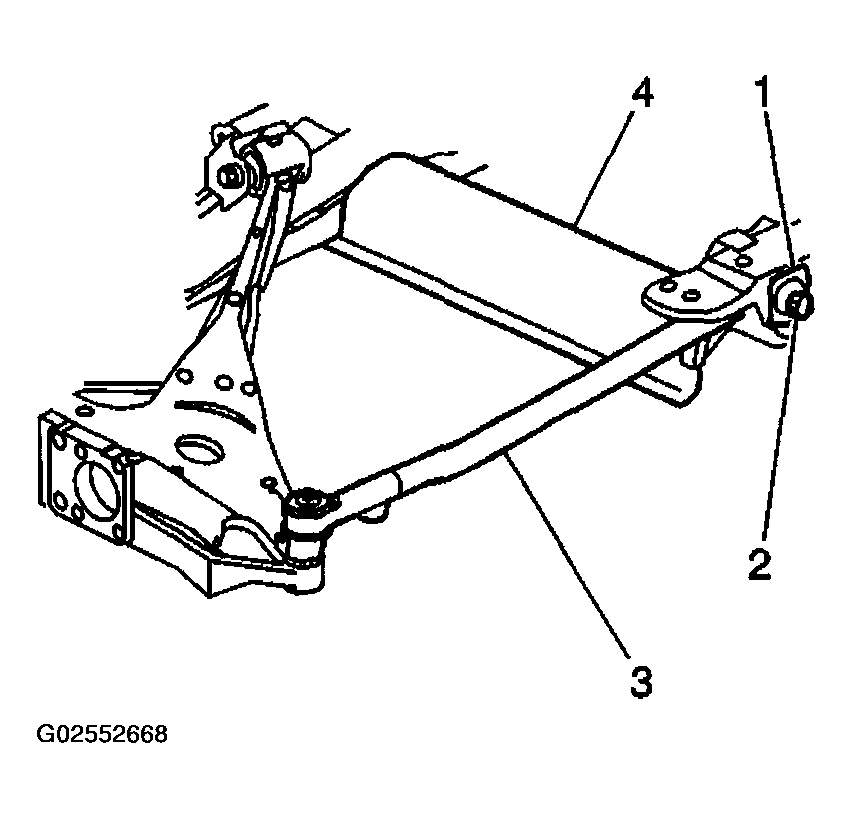

- Loosen the inner adjustment link cam nut.NOTE: Refer to FASTENER NOTICE .
- In order to adjust the toe, rotate the cam bolt. Refer to FASTENER TIGHTENING SPECIFICATIONS
.
Tighten
Tighten the cam nut (2) to 91 N.m (67 lb ft).
- Recheck the toe setting after tightening.
- Readjust the toe setting if necessary. Refer to WHEEL ALIGNMENT SPECIFICATIONS .
