Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the power steering pump pulley on the end of the power steering pump shaft.
  2. Install the power steering pump pulley using J 25033-C  .

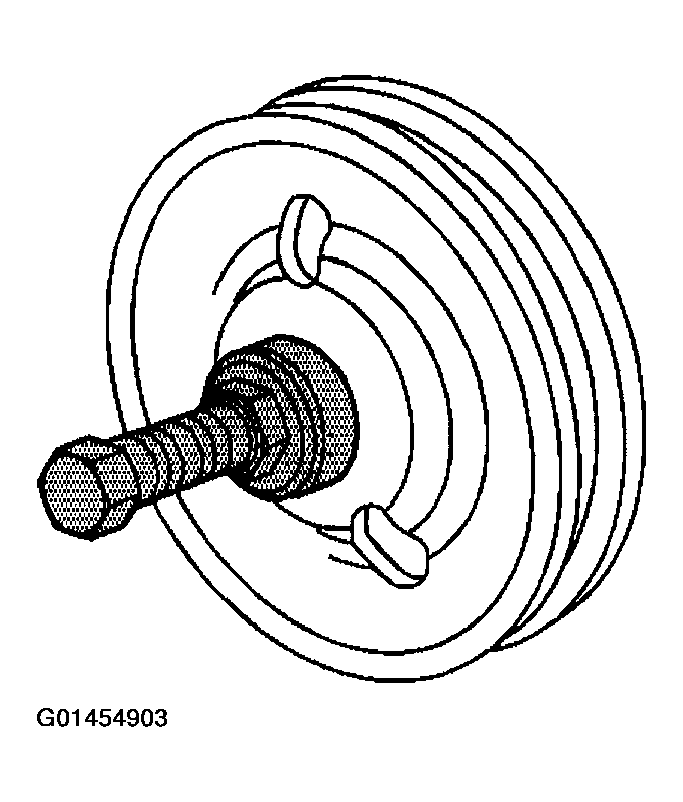

    Fig 1: Installing Power Steering Pump Pulley
    G01454903Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the power steering pump pulley (1) is flush against the power steering pump shaft, with an allowable variance of 0.25 mm (0.010 in).
  4. Install the drive belt. Refer to DRIVE BELT REPLACEMENT -- ACCESSORY or 8.1L in Engine Mechanical.
  5. Install the upper fan shroud. Refer to FAN SHROUD REPLACEMENT - UPPER (W/O M74) or FAN SHROUD REPLACEMENT - UPPER (W/M74) in ENGINE COOLING SYSTEM .

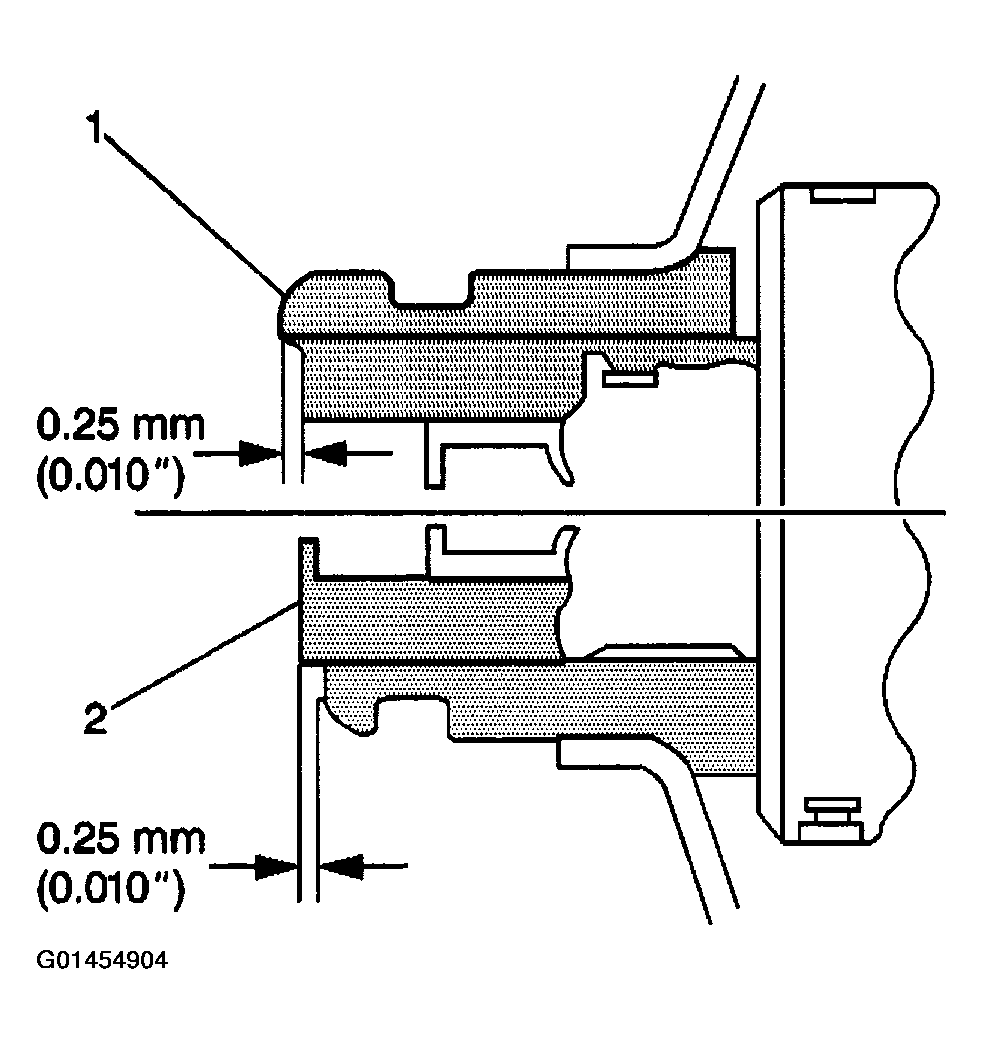

    Fig 2: Sectional View Of Power Steering Pump Pulley
    G01454904Courtesy of GENERAL MOTORS CORP.
