Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector, if equipped.
  2. Install the sunshade.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the sunshade screws.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

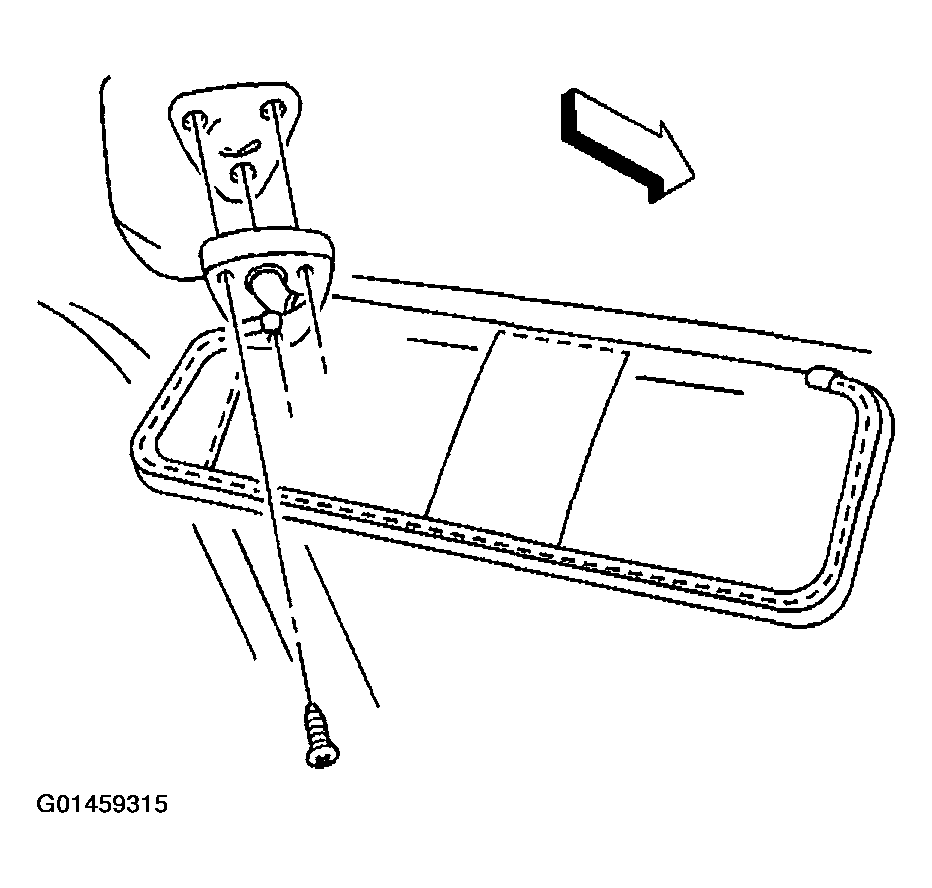

    Fig 1: Installing Sunshade Screws
    G01459315Courtesy of GENERAL MOTORS CORP.
