Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the antenna mast.
  3. Remove the outboard section of the cowl vent grille panel.
  4. Remove the 3 bolts.
  5. Remove the cable grommet from the body.
  6. Disconnect the antenna cable from the extension cable.
  7. Tie a long wire to the antenna cable.
  8. From outside of the vehicle, pull the antenna base and cable assembly until the wire can be easily accessible.

    Ensure part of the wire is still in the vehicle

  9. Remove the wire from the antenna cable.

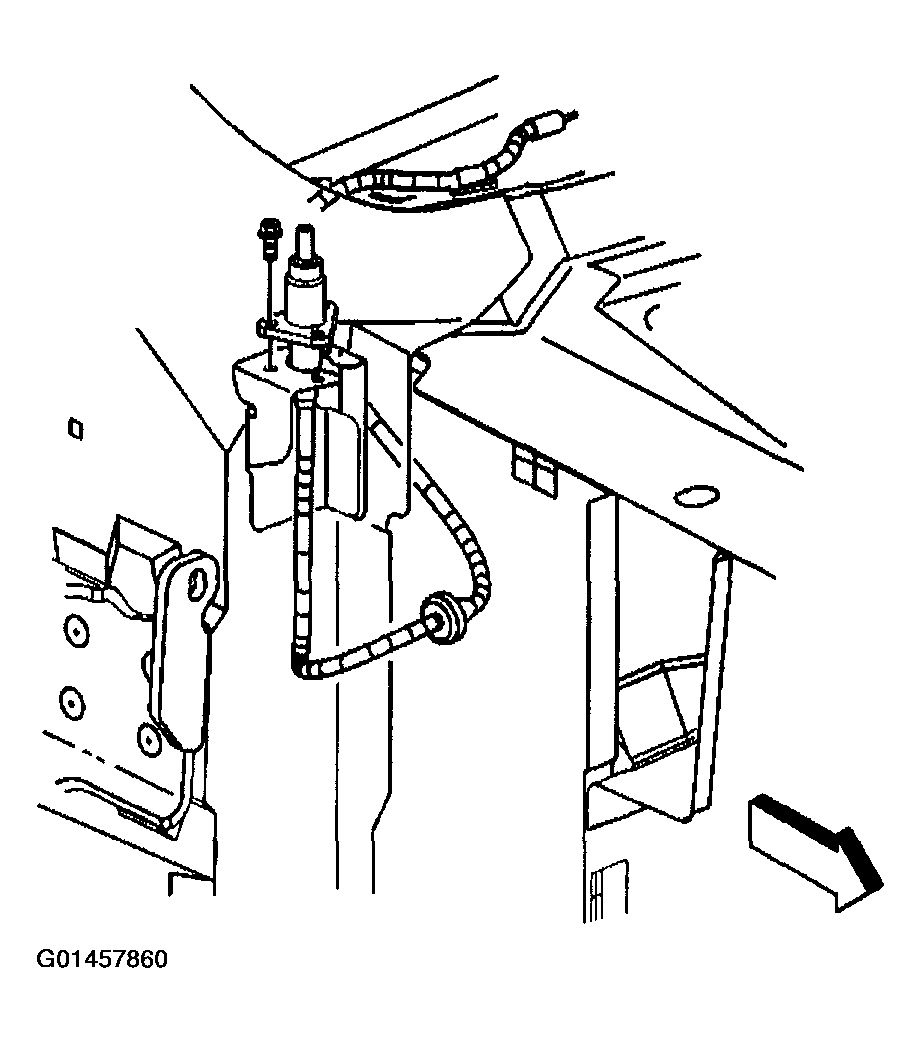

    10. Fig 1: Removing Fixed Antenna
    G01457860Courtesy of GENERAL MOTORS CORP.
