Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with a Bose® amplifier, remove the radio amp fuse located under the hood electrical center.
  2. Remove the floor console bezel. Refer to BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUXURY UPPER) or BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY UPPER) or BEZEL REPLACEMENT - FLOOR CONSOLE (NON-LUX LOWER) in Instrument Panel, Gages and Console.
  3. Remove the cupholder. Refer to CUPHOLDER REPLACEMENT (NON-LUXURY) or CUPHOLDER REPLACEMENT (LUXURY) or CUPHOLDER REPLACEMENT (REAR) in Instrument Panel, Gages and Console.
  4. Remove the bolts (1) retaining the console to the I/P.

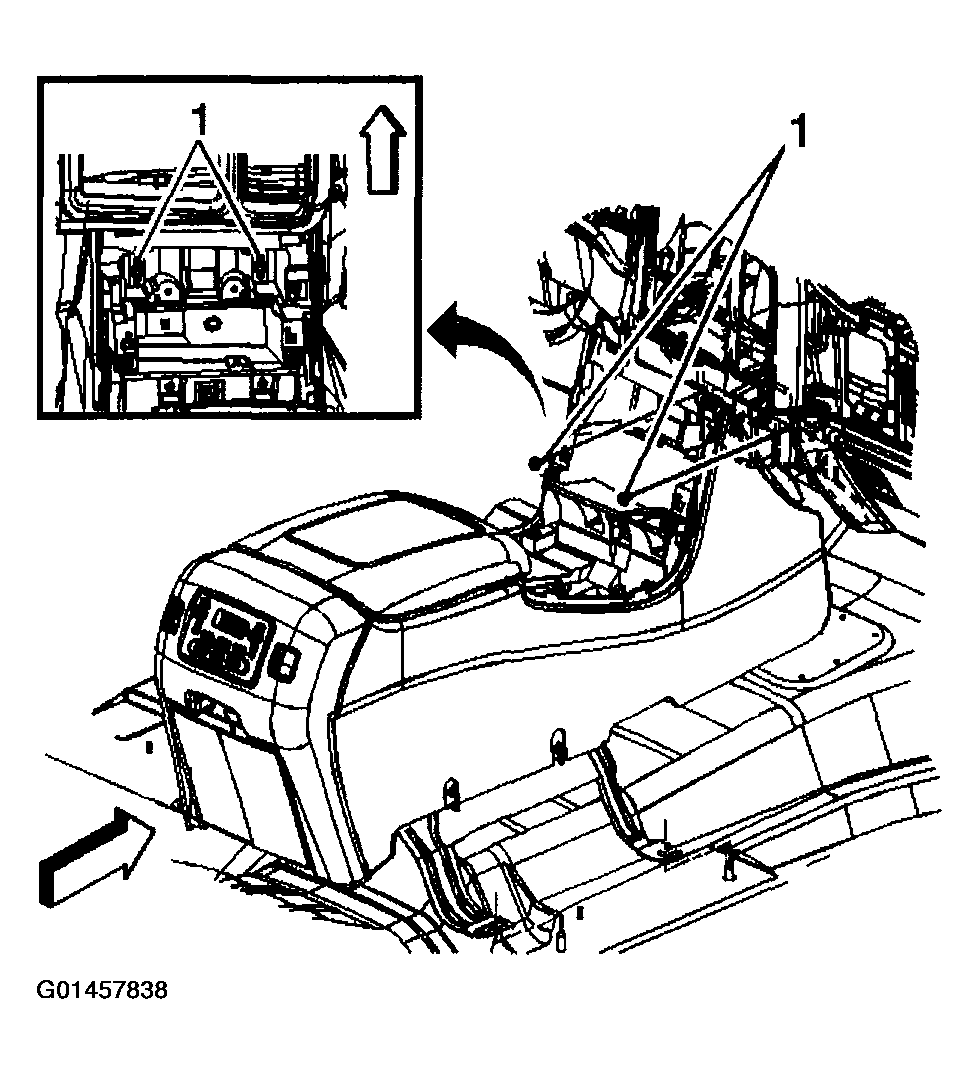

    5. Fig 1: Removing Console Bolts To I/P
    G01457838Courtesy of GENERAL MOTORS CORP.
  5. Remove the console storage bin. Refer to CONSOLE STORAGE BIN REPLACEMENT (EXPECT PRO) in Instrument Panel, Gages and Console.
  6. Remove the center console end panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT in Instrument Panel, Gages and Console.
  7. Disconnect the audio amplifier electrical connectors.
  8. Remove the 4 screws retaining the upper console bracket to the lower console bracket.

    The front 2 screws (1) are shown in the graphic.

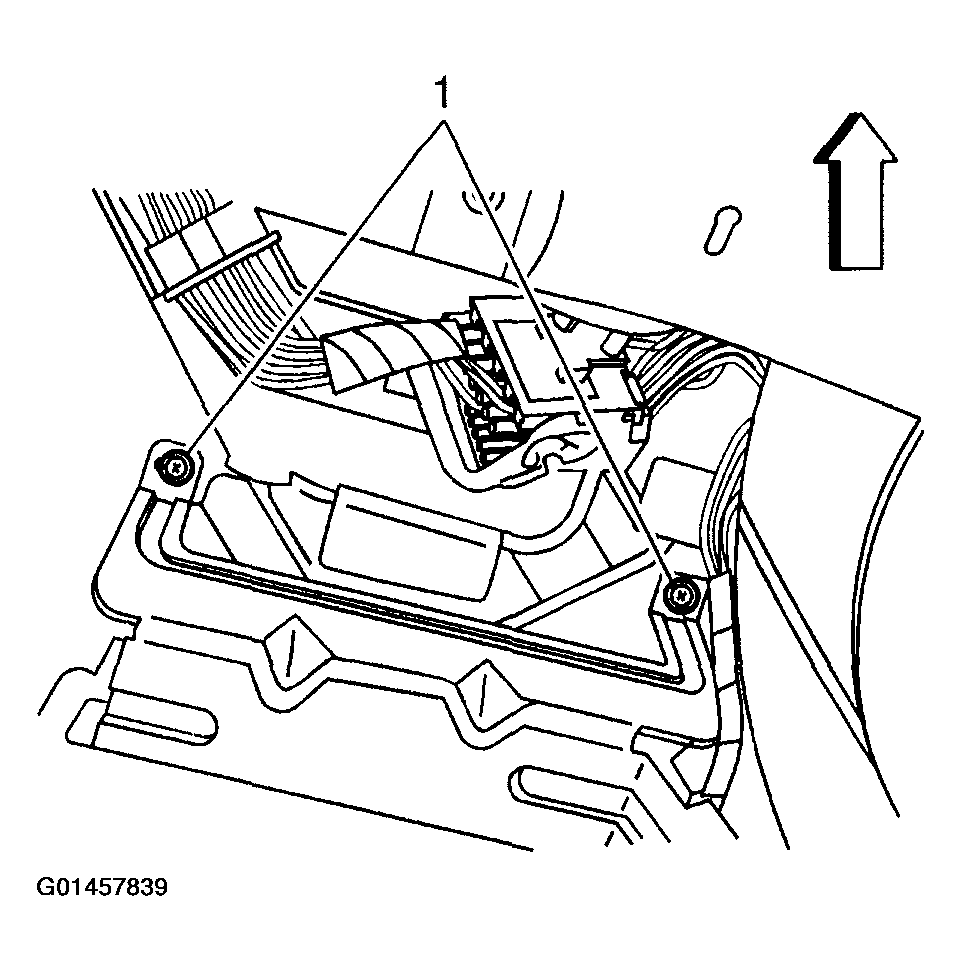

    9. Fig 2: Locating Front 2 Screws
    G01457839Courtesy of GENERAL MOTORS CORP.
  9. Move both front seats to the fully forward.
  10. Reposition the inboard seat track trim (1) in order to gain access to the rear console side panel screw (2).

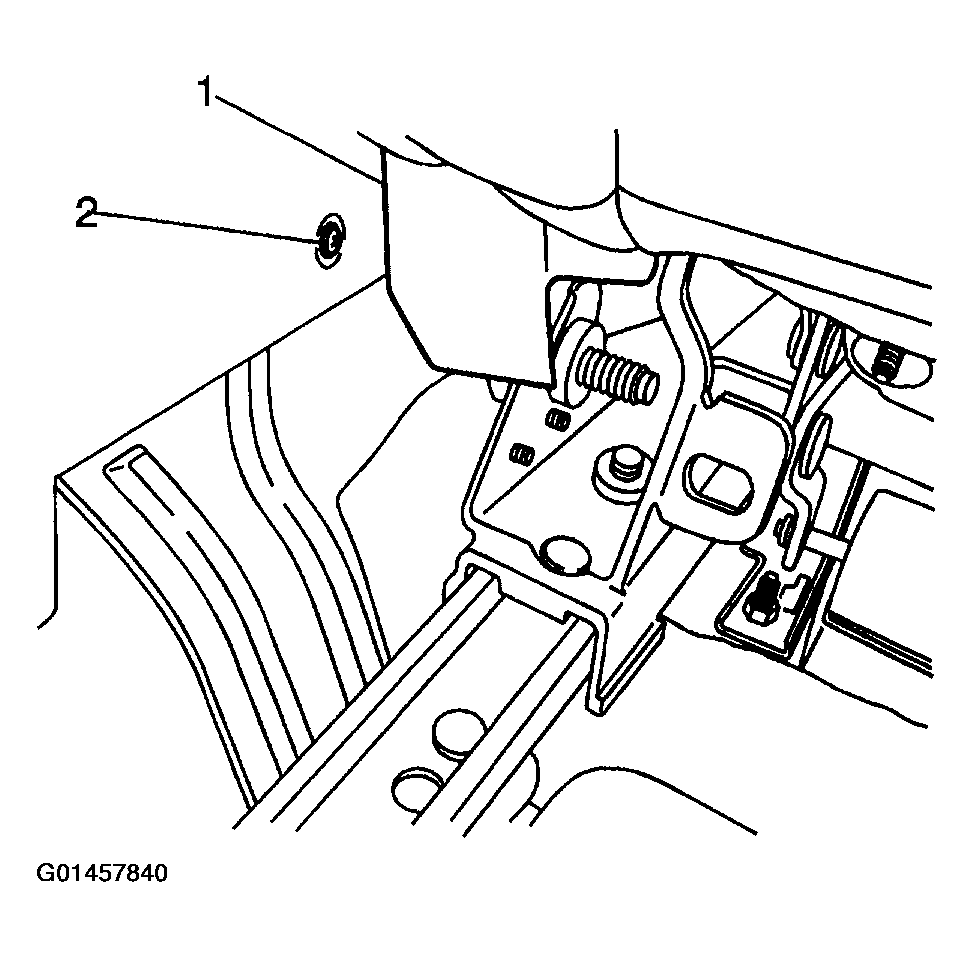

    11. Fig 3: Removing Both Rear Console Side Panel Screws
    G01457840Courtesy of GENERAL MOTORS CORP.
  11. Remove both rear console side panel screws.
  12. Move both front seats to the fully rearward.
  13. Remove both front console side panel screws (1).

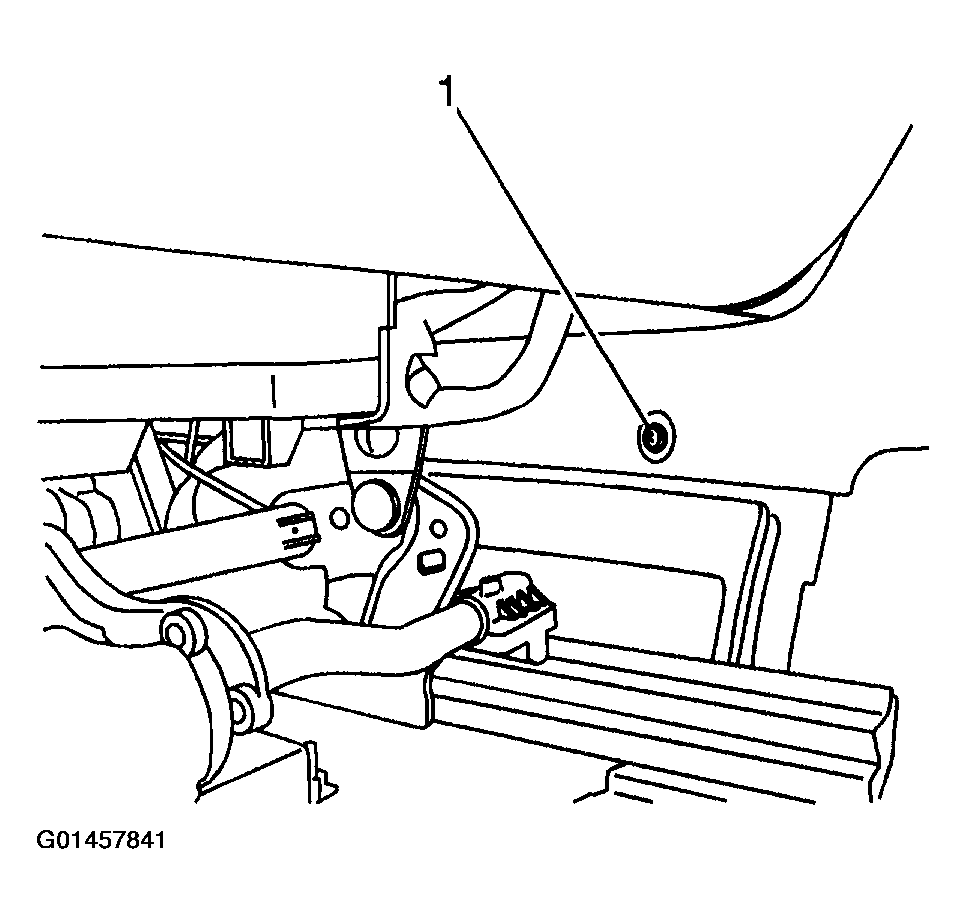

    14. Fig 4: Removing Both Front Console Side Panel Screws
    G01457841Courtesy of GENERAL MOTORS CORP.
  14. Disconnect the floor console electrical connector.
  15. Remove the console assembly from the vehicle.
  16. Remove the audio amplifier screws (1).

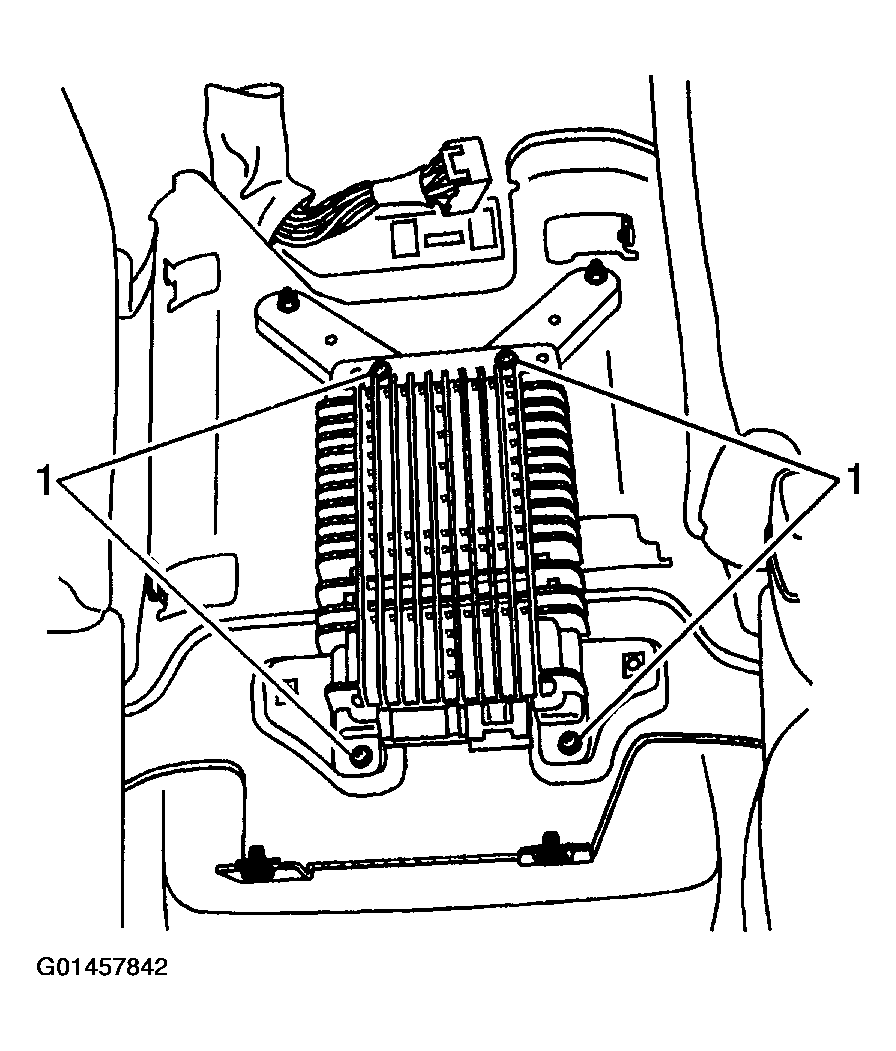

    17. Fig 5: Removing Audio Amplifier Screws
    G01457842Courtesy of GENERAL MOTORS CORP.
  17. Remove the audio amplifier from the vehicle.
