Cooling Fan Component Removal Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

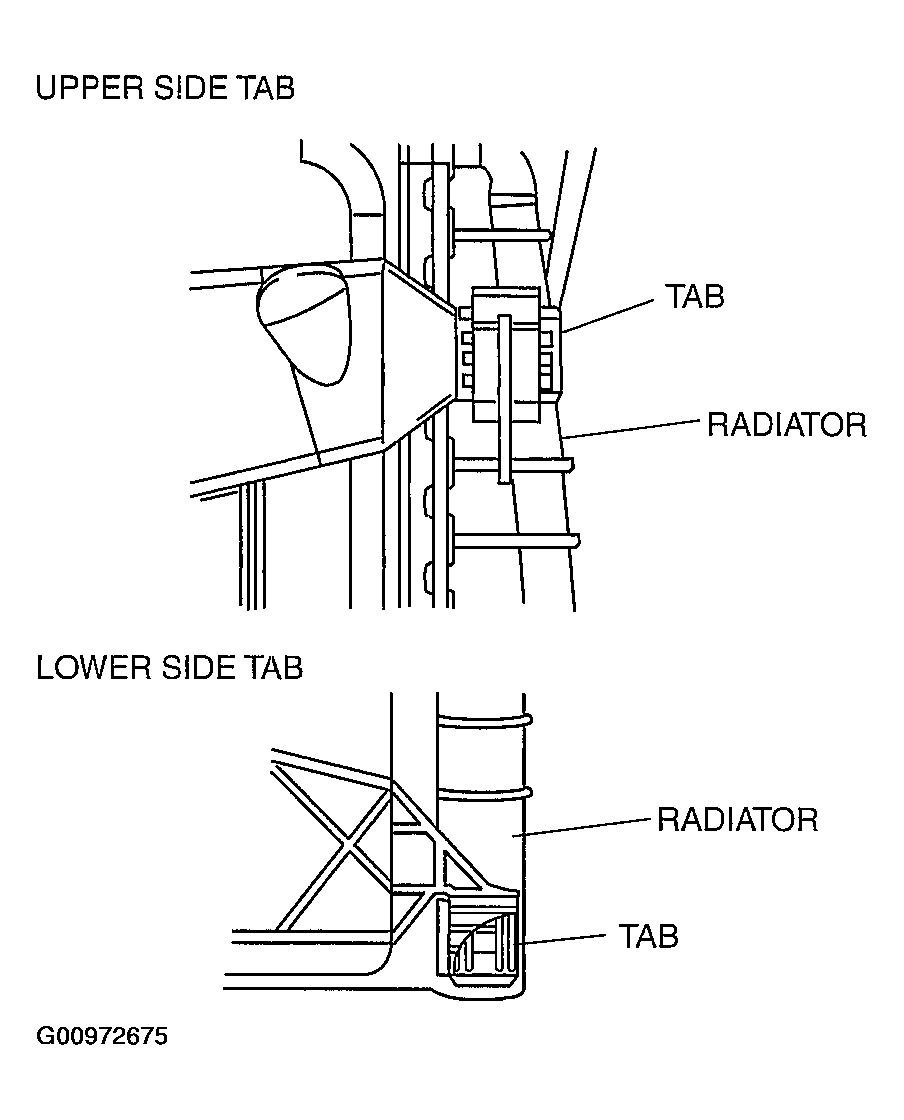

- Unlock the lower side tab a at two points by pressing the cooling fan side tab, remove the upper side tab a at two points, then remove the cooling fan component from the radiator.
Courtesy of MAZDA MOTORS CORP.
