Engine Overheating

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

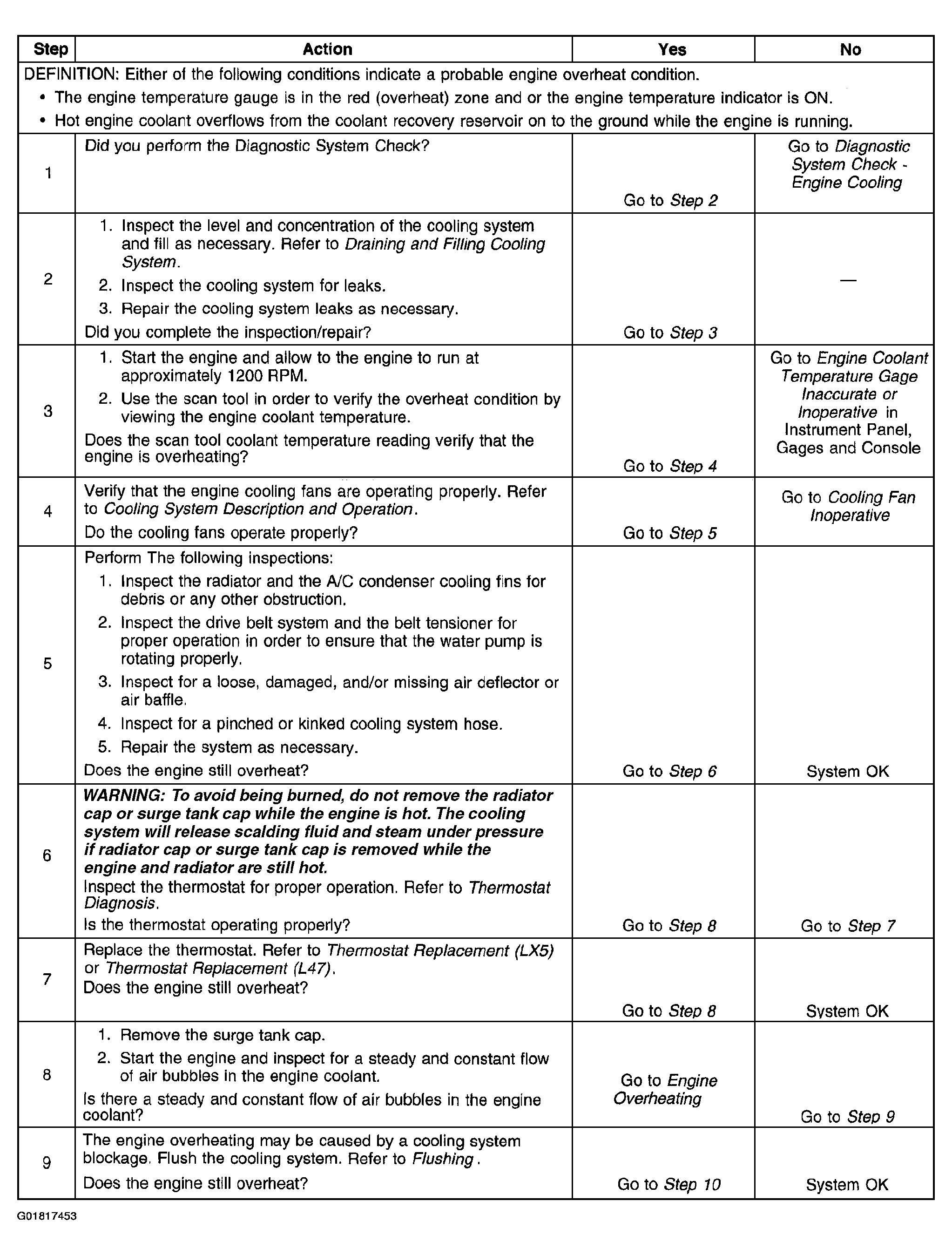

Fig 1: Engine Overheating (1 Of 2)
G01817453Courtesy of GENERAL MOTORS CORP.

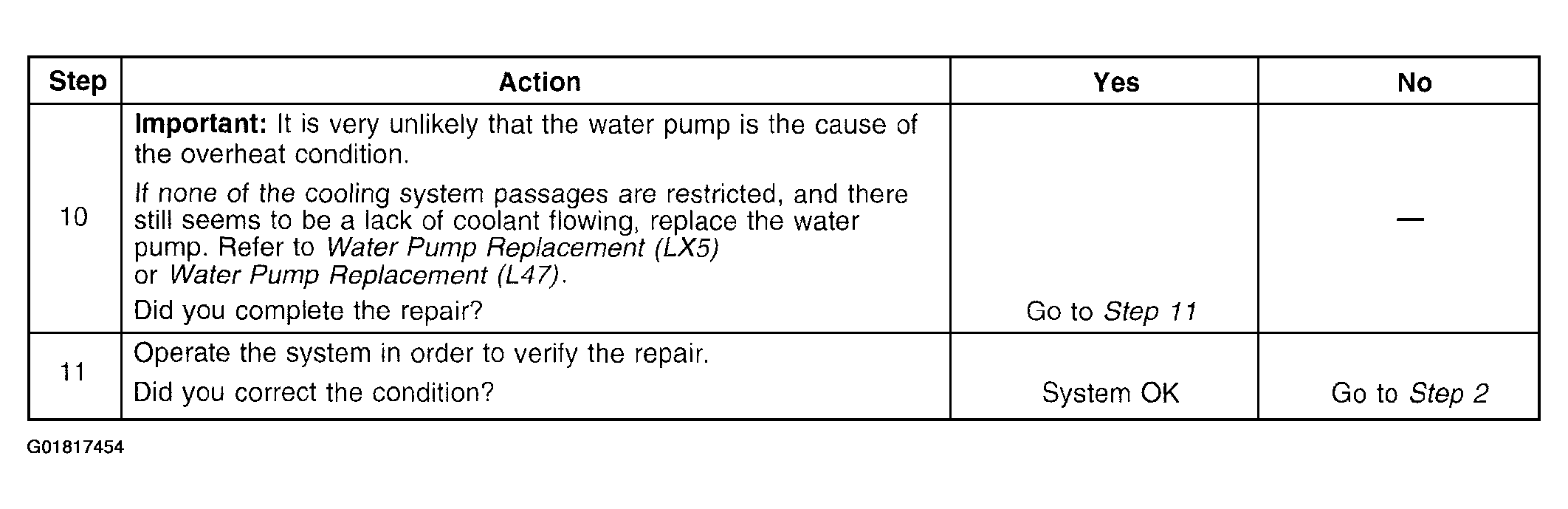

Fig 2: Engine Overheating (2 Of 2)
G01817454Courtesy of GENERAL MOTORS CORP.
